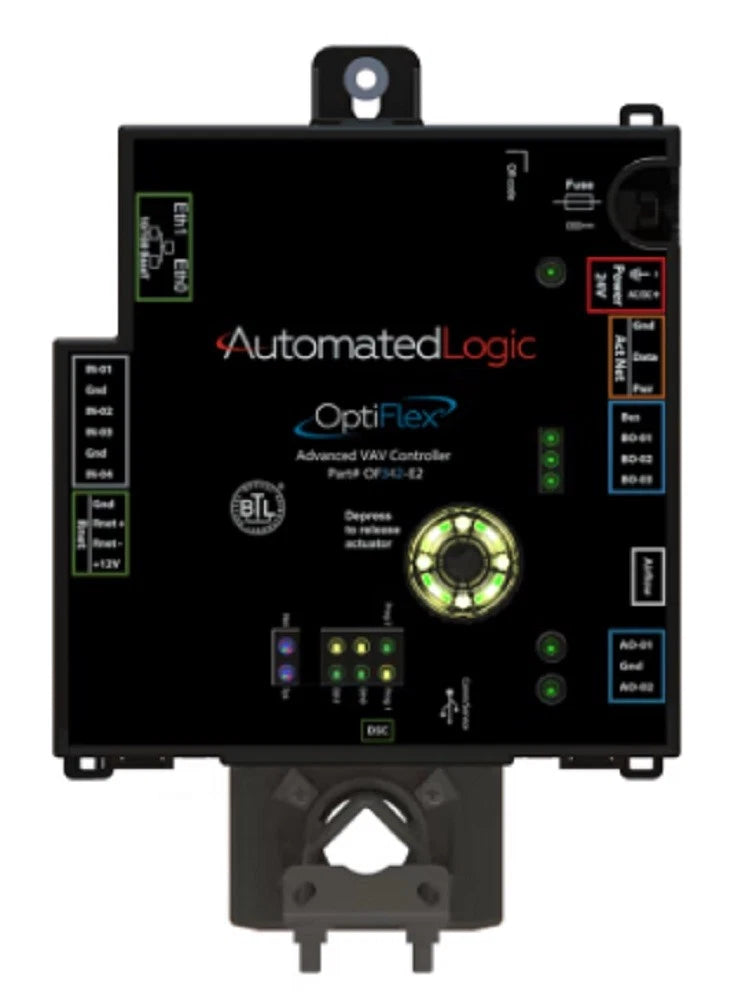

Automated Logic OF342-E2 OptiFlex Advanced BACnet VAV Controller for WebCTRL HVAC Systems
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OF342-E2
Description
The Automated Logic OF342-E2 is an OptiFlex advanced VAV controller designed for zone-level temperature, airflow, and indoor air quality control within WebCTRL building automation systems. Automated Logic part number OF342-E2 combines programmable HVAC control, integrated airflow measurement, flexible I/O, Bluetooth-assisted configuration, and ASHRAE Guideline 36 control sequences for VAV and VVT applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | HVAC & Building Automation |
| Part Number | OF342-E2 |
| Subcategory | VAV Controllers |
| Series | OptiFlex |
| Product Type | Advanced Programmable VAV Controller |
| Primary Application | VAV and VVT Zone Control |
| Building Automation Platform | Automated Logic WebCTRL |
| Programming Software | EIKON Graphical Programming |
| Control Standard Support | ASHRAE Guideline 36 Control Sequences |
| Communication Protocol | BACnet |
| Local Configuration | Bluetooth Wireless Commissioning |
| Airflow Measurement | Integrated Differential Pressure Sensor |
| Zone Control Functions | Temperature, Airflow and Indoor Air Quality Control |
| Sensor Support | Compatible Automated Logic Communicating and Combo Sensors |
| Control Outputs | Configurable Outputs for Damper, Heating, Valve and Auxiliary Control |
| Damper Control | Modulating VAV Damper Actuator Control |
| Programming Type | Freely Programmable DDC |
| System Compatibility | WebCTRL and Compatible Legacy Automated Logic Architectures |
| Application Type | New Installation and Retrofit |
| Mounting Location | VAV Terminal Unit / HVAC Equipment |
| Weight | Approx. 1.0 lb |
Information About OF342-E2
The OF342-E2 is part of the Automated Logic OptiFlex family of freely programmable BACnet controllers developed for advanced terminal-unit and zone-control applications. It integrates with the WebCTRL building automation platform and supports EIKON graphical programming, allowing control sequences to be customized for specific HVAC equipment and operating requirements. The controller provides a combination of universal inputs and configurable outputs, integrated differential pressure sensing for airflow control, and support for Automated Logic communicating room and combination sensors used for temperature, humidity, CO2, and occupancy-related strategies. Factory-engineered ASHRAE Guideline 36 sequences, Bluetooth commissioning capabilities, and backward compatibility with legacy Automated Logic architectures make it suitable for both new construction and retrofit VAV/VVT projects.
Key Features:
- Advanced VAV Control: Designed for pressure-independent VAV, VVT, and other zone-level HVAC control applications.
- WebCTRL Integration: Operates as a native field controller within Automated Logic WebCTRL building automation systems.
- ASHRAE Guideline 36 Support: Factory-engineered control sequences support high-performance HVAC operation and standardized VAV control strategies.
- Integrated Airflow Measurement: Built-in differential pressure sensing supports accurate airflow measurement and pressure-independent VAV control.
- Flexible I/O Configuration: Provides a combination of universal inputs and configurable outputs for dampers, valves, heating stages, fans, and auxiliary equipment.
- Combo Sensor Support: Interfaces with compatible Automated Logic room sensors for temperature, humidity, CO2, occupancy, and additional zone information.
- Bluetooth Commissioning: Wireless local access simplifies initial controller setup, configuration, testing, and commissioning.
- EIKON Programming: Supports EIKON graphical programming for creating and modifying application-specific control sequences.
- BACnet Communications: Integrates into BACnet-based building automation networks for interoperable monitoring and supervisory control.
- Damper Actuator Control: Provides modulating output capability for controlling VAV box damper actuators.
- Retrofit Compatibility: Designed to simplify upgrades from legacy Automated Logic controller installations while retaining WebCTRL system integration.
- Stand-Alone Control: Executes programmed HVAC sequences locally so essential zone control can continue independently of supervisory workstation communication.
The OF342-E2 delivers the reliability and precision required for pressure-independent VAV, VVT, indoor air quality, and advanced zone-level HVAC control.
