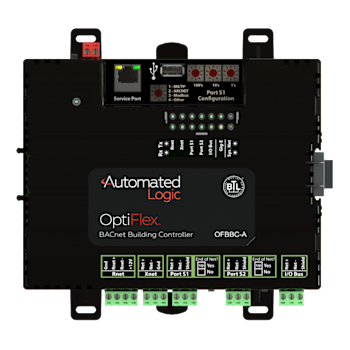

Automated Logic OFBBC-A OptiFlex BACnet Building Controller and Router
- Regular price
- $1,955.00
- Sale price
- $1,955.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OFBBC-A
Description
The Automated Logic OFBBC-A is an OptiFlex™ BACnet Building Controller and Router designed for advanced HVAC and building automation applications. It combines high-speed processing, native BACnet routing, and flexible expansion capabilities to control complex mechanical systems from a single platform. The controller integrates seamlessly with the WebCTRL® Building Automation System to provide centralized monitoring, scheduling, and equipment management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | PLCs/Machine Control |
| Part Number | OFBBC-A |
| Subcategory | PLC Module/Rack |
| Product Type | BACnet Building Controller and Router |
| Series | OptiFlex™ |
| BACnet Device Profile | B-BC, B-RTR, B-BBMD |
| Processor | 32-bit ARM Cortex-A8, 600 MHz |
| Memory | 8 GB eMMC Flash, 512 MB DDR3 DRAM |
| Power Supply | 24 VAC ±10% or 26 VDC ±10% |
| Power Consumption | 50 VA AC / 15 W DC |
| Frequency | 50/60 Hz |
| Ethernet Port | 10/100/1000 Base-T Gigabit Ethernet |
| Communication Protocols | BACnet/IP, BACnet Ethernet, BACnet MS/TP, ARCNET, Modbus TCP/IP |
| Maximum Expansion | 9 OptiFlex™ FIO Expanders |
| Maximum I/O Capacity | 180 Total I/O Points |
| Mounting | 35 mm DIN Rail or Screw Mount |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Enclosure | UL94-5VA Fire-Retardant ABS Plastic |
| Weight | 0.45 kgs |
Information About OFBBC-A
The OFBBC-A is a high-capacity controller in the Automated Logic OptiFlex™ series, engineered for central plants, air handling units, and other demanding commercial HVAC applications. It conforms to the BACnet Building Controller (B-BC), BACnet Router (B-RTR), and BACnet Broadcast Management Device (B-BBMD) profiles, enabling communication across BACnet/IP, BACnet MS/TP, BACnet Ethernet, and ARCNET networks. The controller is programmed using EIKON® graphical software and supports direct integration with the WebCTRL® platform for real-time visualization, diagnostics, scheduling, and alarming. Its expandable architecture supports multiple OptiFlex™ I/O modules, allowing the controller to scale with changing building automation requirements while maintaining reliable operation.
Key Features:
- Native BACnet Router: Supports BACnet/IP, BACnet MS/TP, BACnet Ethernet, and ARCNET communications.
- High-Speed Processor: Features a 600 MHz ARM Cortex-A8 processor for complex control applications.
- Expandable Architecture: Supports up to nine OptiFlex™ expansion modules with up to 180 total I/O points.
- WebCTRL Integration: Operates directly with the WebCTRL Building Automation System for centralized management.
- Large Object Capacity: Supports up to 12,000 BACnet objects and 999 control programs.
- Third-Party Connectivity: Integrates up to 1,500 BACnet points and 200 Modbus points.
- Advanced Network Support: Includes Gigabit Ethernet, DHCP, BBMD, Foreign Device Registration, and routing functions.
- Battery-Free Memory: Stores programs and historical data in non-volatile flash memory without requiring battery backup.
The OFBBC-A delivers the reliability and precision required for enterprise-level HVAC equipment control and integrated building automation systems.
