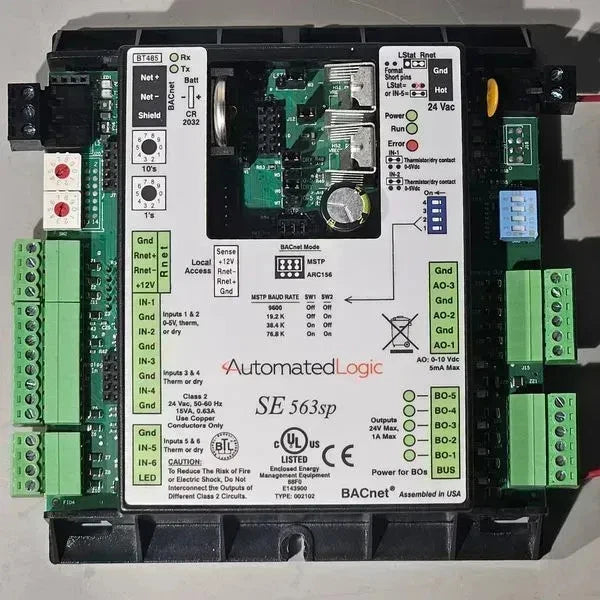

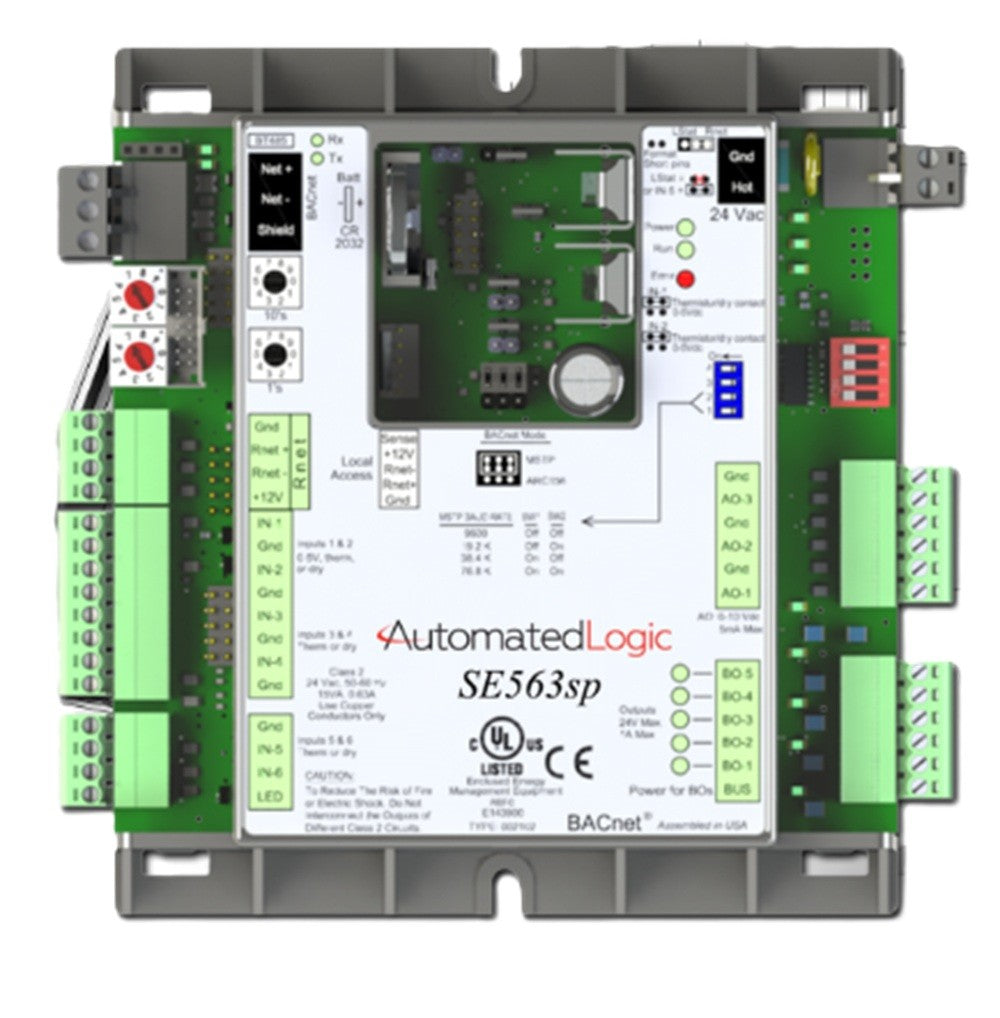

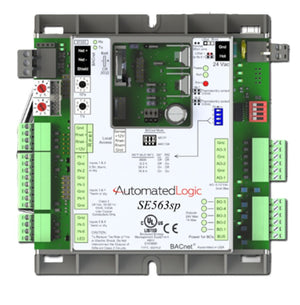

Automated Logic SE563SP BACnet Advanced Application Controller for HVAC Systems
- Regular price
- $1,267.00
- Sale price
- $1,267.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SE563SP
Description
The Automated Logic SE563SP is a fully programmable BACnet Advanced Application Controller designed for single-equipment HVAC applications within the WebCTRL® Building Automation System. It provides flexible control for rooftop units, boilers, pumping systems, and mechanical equipment using native BACnet communications and configurable onboard input/output points. Its compact design and powerful programming capabilities make it suitable for a wide range of commercial building automation installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | PLCs/Machine Control |
| Part Number | SE563SP |
| Subcategory | PLC Module/Rack |
| Product Type | Advanced Application Controller |
| BACnet Device Profile | B-AAC (BACnet Advanced Application Controller) |
| Power Supply | 24 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 15 VA |
| Current Rating | 0.63–1 A |
| Binary Outputs | 5 Relay Outputs |
| Analog Outputs | 3 Outputs (0–10 VDC) |
| Configurable Inputs | 6 Inputs |
| Maximum BACnet Objects | Up to 300 Network-Visible Objects |
| Communication Protocols | BACnet ARC156, BACnet MS/TP |
| Programming Software | EIKON® |
| Compatible Platform | WebCTRL® Building Automation System |
| Application | Rooftop Units, Boilers, Pumping Systems, Mechanical Equipment |
| Weight | 0.45 kgs |
Information About SE563SP
The SE563SP is part of the Automated Logic SE controller series, engineered to deliver intelligent control of individual HVAC equipment while integrating seamlessly into BACnet building automation networks. It supports both BACnet ARC156 and BACnet MS/TP communications, allowing interoperability with other BACnet-compliant devices and centralized WebCTRL® management. The controller is programmed using the EIKON® graphical programming environment, enabling customized control strategies and simplified commissioning. With support for up to 300 network-visible BACnet objects and compatibility with communicating sensors and touchscreen interfaces, the controller provides scalable and reliable equipment automation.
Key Features:
- Native BACnet Communications: Supports BACnet ARC156 and BACnet MS/TP networks for open-system integration.
- Advanced Application Controller: Certified as a BACnet Advanced Application Controller (B-AAC) for sophisticated HVAC control.
- Flexible Input/Output Configuration: Includes 6 configurable inputs, 5 binary outputs, and 3 analog outputs.
- EIKON Programming Support: Uses graphical programming software for customized equipment control sequences.
- WebCTRL Compatibility: Integrates directly with the WebCTRL Building Automation System for centralized management.
- Network Object Capacity: Supports up to 300 network-visible BACnet objects for expanded control functionality.
- Peripheral Device Support: Compatible with Automated Logic communicating sensors and Equipment Touch interfaces.
- Distributed Processing: Operates independently with onboard processing for reliable local equipment control.
The SE563SP delivers the reliability and precision required for programmable HVAC equipment control and BACnet building automation applications.
