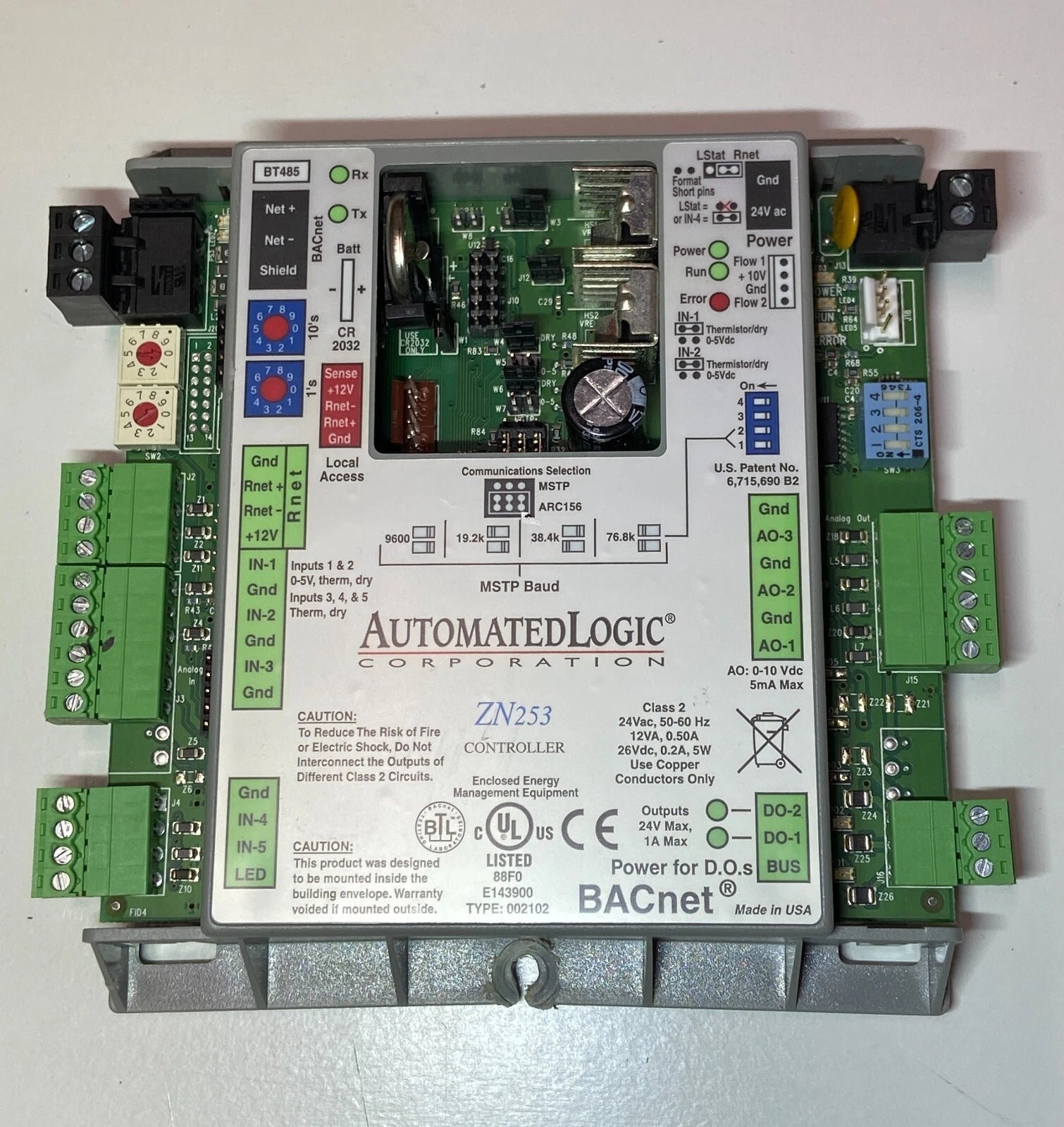

Automated Logic ZN253 BACnet Advanced Application Controller for Single-Zone HVAC Control
- Regular price
- $654.00
- Sale price
- $654.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZN253
Description
The Automated Logic ZN253 is a fully programmable BACnet Advanced Application Controller (AAC) designed to provide precise single-zone HVAC control within commercial building automation systems. The Automated Logic ZN253 supports multiple analog and binary control points, enabling reliable operation of unit ventilators, fan coil units, packaged HVAC equipment, lighting, and exhaust fan applications through native BACnet communications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | PLCs/Machine Control |
| Part Number | ZN253 |
| Subcategory | PLC Module/Rack |
| Product Type | BACnet Advanced Application Controller |
| Controller Type | Native BACnet AAC |
| Communication Protocol | BACnet MS/TP (EIA-485) |
| Universal Inputs | 5 |
| Binary Outputs | 2 |
| Analog Outputs | 3 |
| Total I/O Points | 10 |
| Application | Single-Zone Building and HVAC Control |
| Programming Software | Automated Logic EIKON® |
| Compatible Platform | Automated Logic WebCTRL® |
| Typical Applications | Unit Ventilators, Fan Coil Units, Packaged HVAC, Lighting, Exhaust Fans |
| Power Supply | 24 VAC, 50/60 Hz |
| Controller Function | Fully Programmable Distributed Control |
| Weight | 0.36 kg |
Information About ZN253
The ZN253 is part of the Automated Logic WebCTRL® building automation platform and functions as a native BACnet Advanced Application Controller for intelligent single-zone environmental control. It communicates over BACnet MS/TP using an EIA-485 network and integrates directly with the WebCTRL system for centralized configuration, monitoring, and scheduling. The controller provides five universal inputs, two binary outputs, and three analog outputs, making it well suited for applications requiring multiple modulating outputs for valves, dampers, and actuators. Designed for commercial HVAC and facility automation, it supports EIKON® graphical programming, distributed control logic, and compatibility with Automated Logic communicating sensors.
Key Features:
- Native BACnet AAC Controller: Operates as a BACnet Advanced Application Controller for distributed building automation.
- Flexible I/O Configuration: Supports five universal inputs, two binary outputs, and three analog outputs for versatile control applications.
- Single-Zone HVAC Control: Designed for unit ventilators, packaged HVAC units, fan coil systems, and similar equipment.
- WebCTRL Integration: Connects seamlessly with the Automated Logic WebCTRL building automation platform.
- EIKON Programming Support: Enables custom control strategies using graphical programming software.
- Multiple Analog Outputs: Provides three analog outputs for precise modulation of dampers, valves, and other HVAC devices.
- BACnet MS/TP Communication: Supports native BACnet networking for reliable integration with compatible automation systems.
- Distributed Intelligence: Performs local control independently while communicating with the building management network.
The ZN253 delivers the reliability and precision required for intelligent single-zone HVAC and building automation control in commercial facilities.
