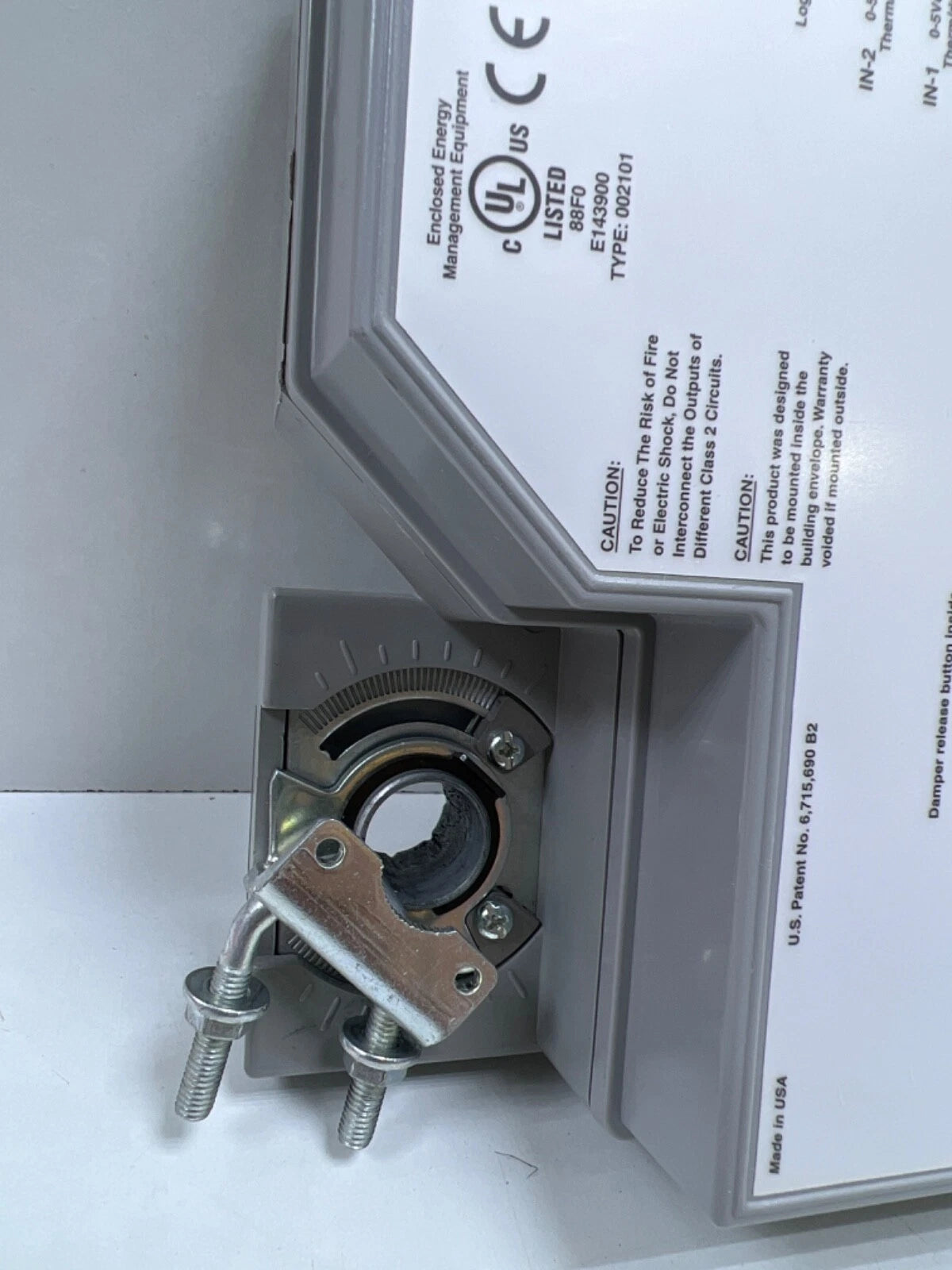

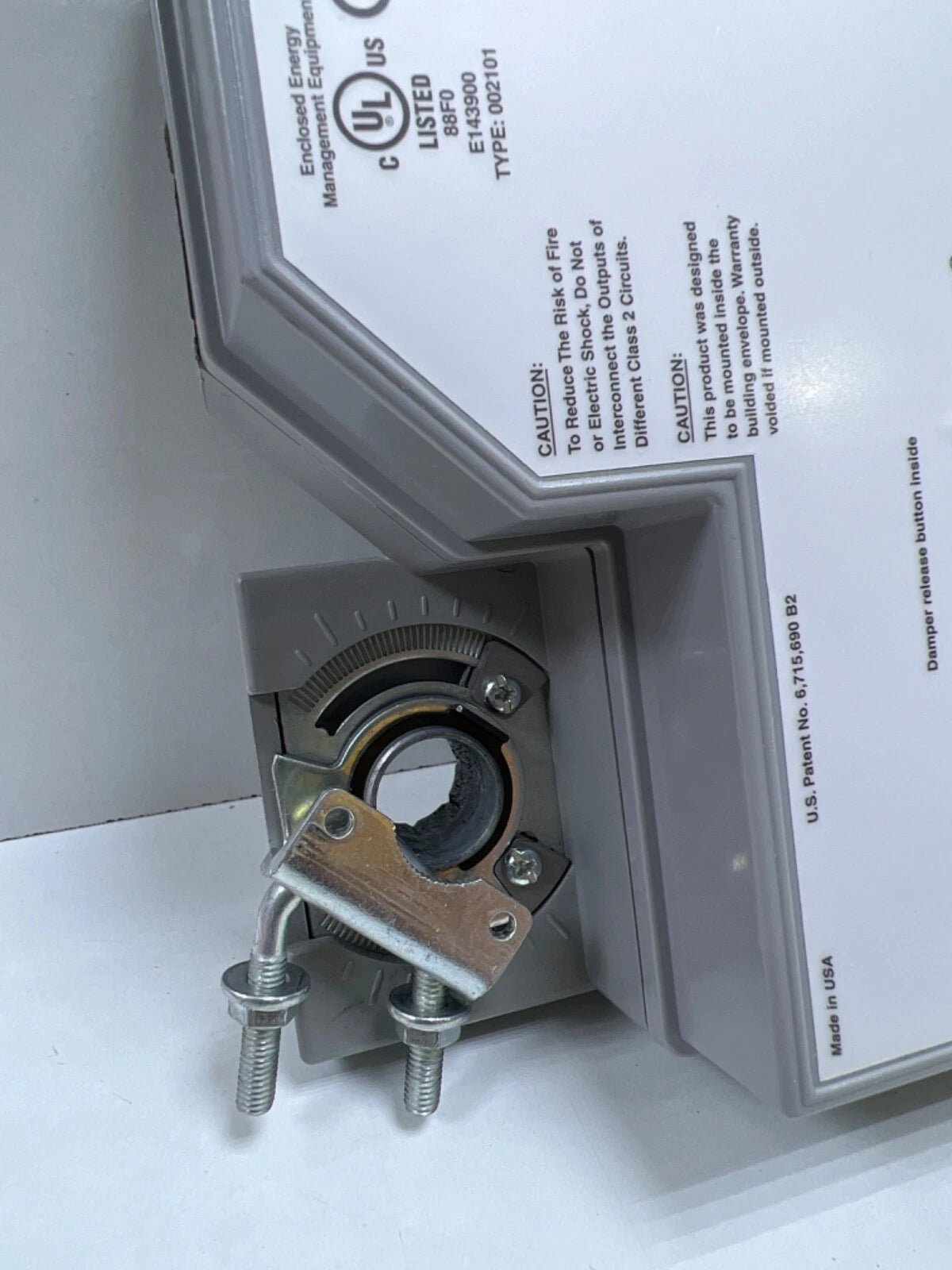

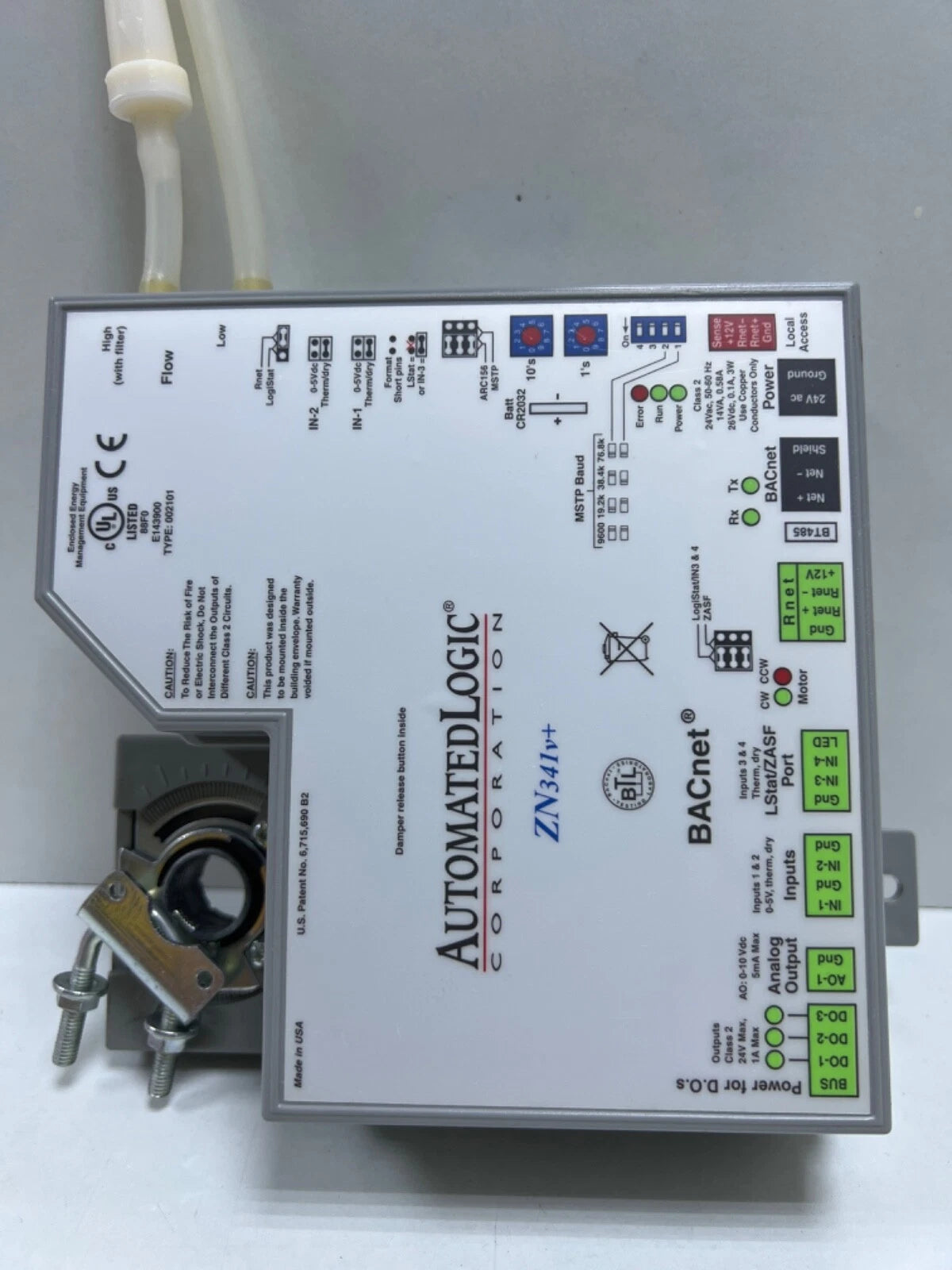

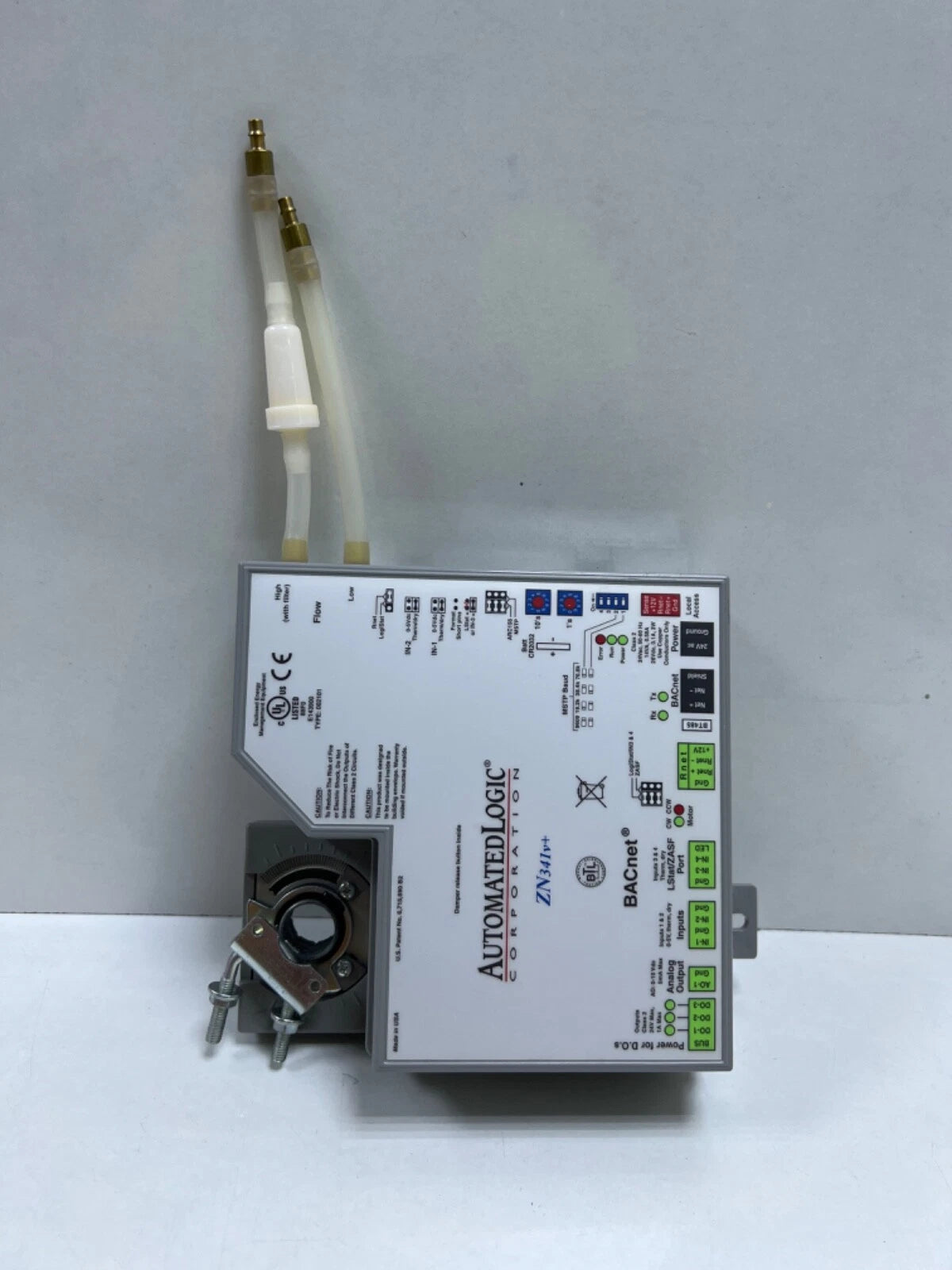

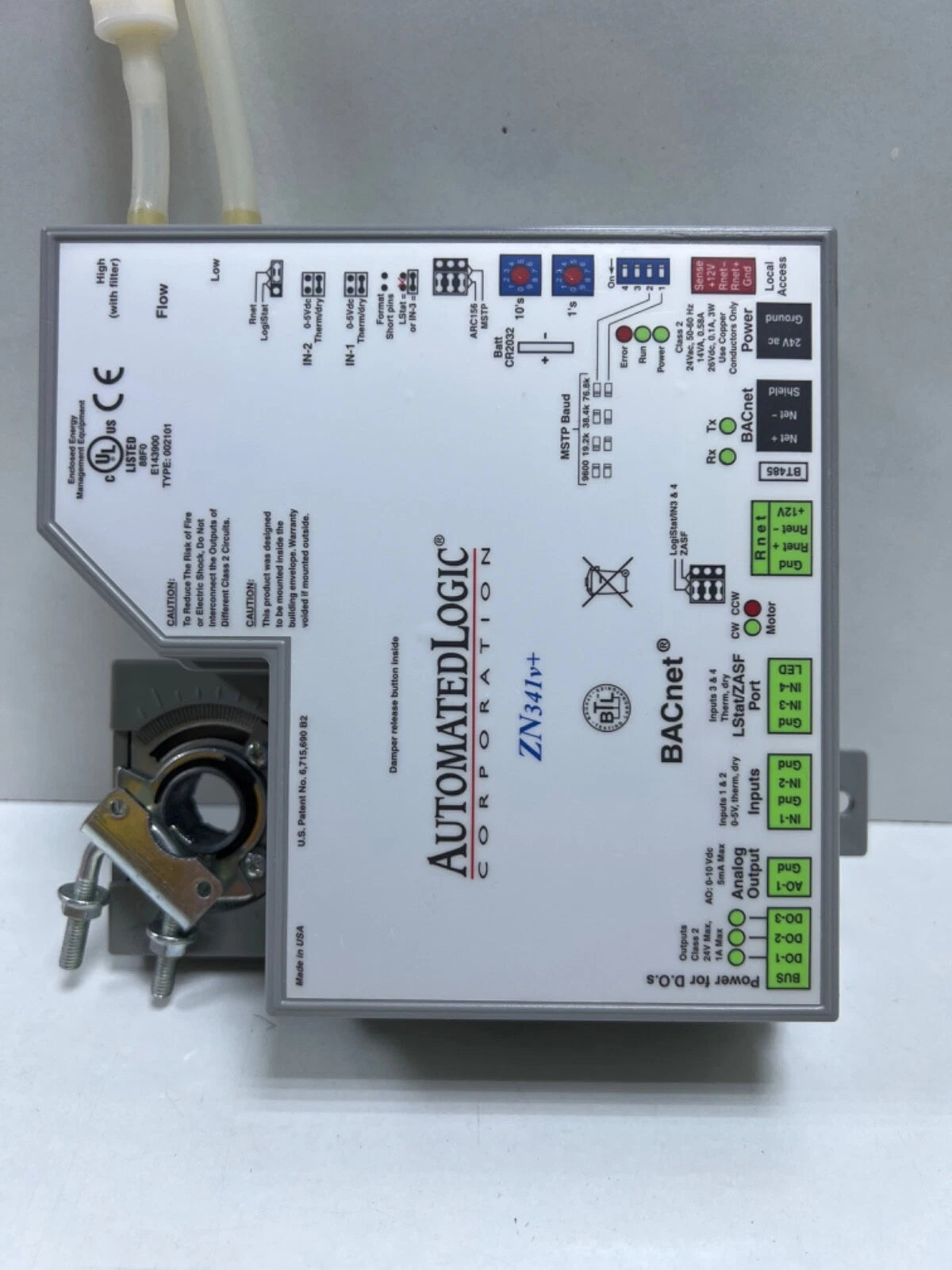

Automated Logic ZN341V+ BACnet Variable Air Volume Zone Controller with Integrated Actuator
- Regular price
- $982.00
- Sale price
- $982.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZN341V+
Description
The Automated Logic ZN341V+ is a fully programmable zone controller designed to provide precise pressure-independent variable air volume control in commercial building automation systems. The Automated Logic ZN341V+ integrates an actuator, precision airflow sensor, and native BACnet communications to manage zone temperature and air quality while supporting energy-efficient HVAC operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | HVAC |
| Part Number | ZN341V+ |
| Subcategory | HVAC Accessory & Rebuild Kit & Seal Kit |
| Product Type | Variable Air Volume Zone Controller |
| Controller Profile | BACnet Advanced Application Controller |
| Communication Protocol | BACnet MS/TP, BACnet over ARCNET |
| Processor | High-Speed 16-Bit Microprocessor |
| Flash Memory | 1 MB |
| RAM | 512 KB |
| Universal Inputs | 4 |
| Binary Outputs | 3 Normally Open Relay Outputs |
| Analog Outputs | 1 (0–10 VDC) |
| Integrated Airflow Sensor | Precision Differential Pressure Sensor (0–2 in. H₂O) |
| Integrated Actuator | Brushless Direct Current Actuator, 35 in-lb (4 Nm) Torque |
| Power Supply | 24 VAC ±10%, 50–60 Hz or 26 VDC |
| Programming Software | EIKON® |
| Compatible Platform | Automated Logic WebCTRL® |
| Weight | 0.73 kg |
Information About ZN341V+
The ZN341V+ is part of the Automated Logic ZN Series of building automation controllers developed for pressure-independent variable air volume applications. It combines a high-speed 16-bit microprocessor, integrated actuator, precision airflow sensor, and native BACnet communication into a compact controller that simplifies installation and commissioning. The controller communicates using BACnet MS/TP or BACnet over ARCNET and integrates seamlessly with the WebCTRL® building automation system while supporting EIKON® graphical programming and Automated Logic room sensors. Designed for commercial HVAC systems, it provides distributed control, remote firmware updates, advanced airflow management, and reliable operation for variable air volume terminal units.
Key Features:
- Native BACnet Communication: Supports BACnet MS/TP and BACnet over ARCNET for seamless building automation integration.
- Integrated Variable Air Volume Control: Combines a precision airflow sensor and integral actuator for pressure-independent airflow regulation.
- High-Speed Processing: Utilizes a 16-bit microprocessor with 1 MB Flash memory and 512 KB RAM for responsive control and graphical programming.
- Precision Airflow Measurement: Built-in differential pressure sensor improves airflow accuracy and occupant comfort.
- Integrated Actuator: Brushless direct current actuator provides reliable damper positioning and extended operational life.
- Flexible Programming: Compatible with EIKON graphical programming software for customized HVAC control sequences.
- Remote Maintenance: Supports remote firmware updates and system commissioning through the WebCTRL platform.
- Building Automation Integration: Compatible with Automated Logic room sensors and distributed peer-to-peer BACnet control networks.
The ZN341V+ delivers the reliability and precision required for pressure-independent variable air volume control in commercial building automation systems.
