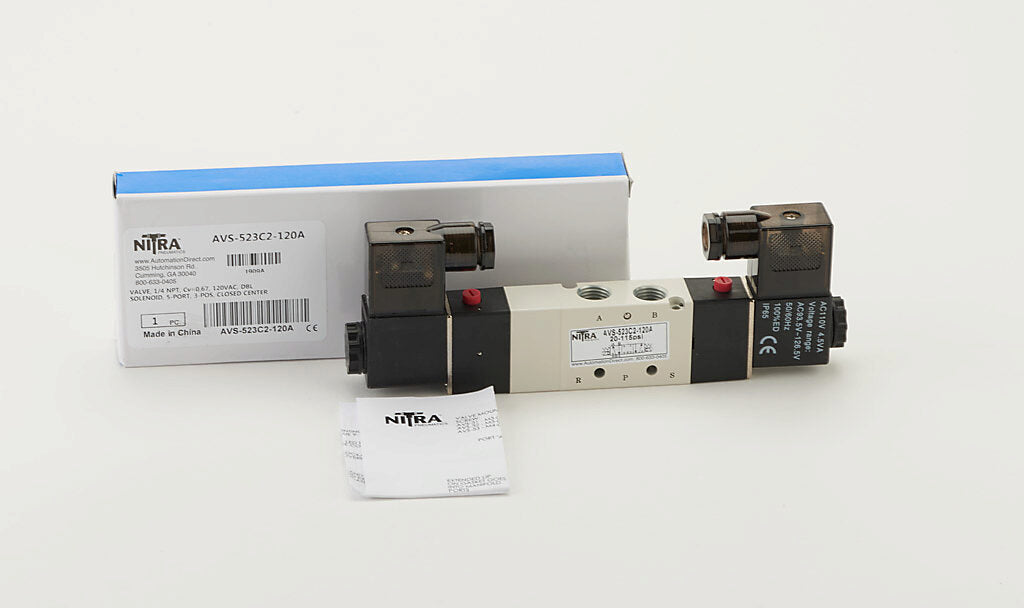

AVS-523C2-120A | Automation Direct NITRA 5-Port 3-Position 120VAC Solenoid Valve
- Regular price
- $224.00
- Sale price
- $224.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AVS-523C2-120A
Description

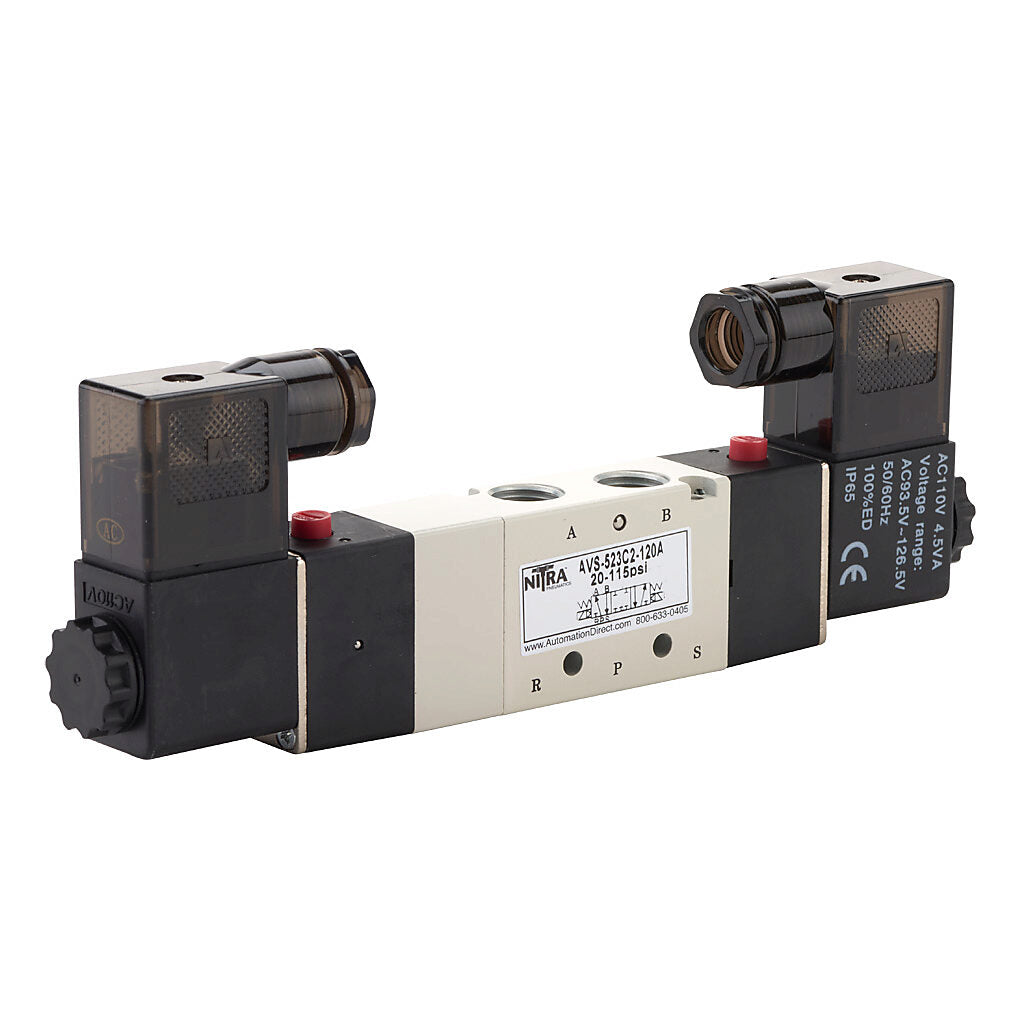

The Automation Direct AVS-523C2-120A is a NITRA 5-port, 3-position solenoid directional control valve designed for pneumatic air systems. Operating on 120 VAC, it features a center-closed configuration with double solenoids for precise actuator control. The AVS-523C2-120A is built for reliable switching of compressed air in industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Pneumatics |
| Part Number | AVS-523C2-120A |
| Subcategory | Solenoid Valves |
| Series | NITRA AVS |
| Working Fluid | Air |
| Valve Type | Solenoid directional control |
| Port Configuration | 5-port (4-way) |
| Number of Positions | 3 |
| Valve Configuration | Center closed |
| Action | Double solenoid |
| Operating Voltage | 120 VAC |
| Power Rating | 4.5 VA |
| Maximum Operating Pressure | 115 psi |
| Minimum Operating Pressure | 0 psi |
| Flow Coefficient (Cv) | 0.67 |
| Inlet Port | (1) 1/4 in female NPT |
| Outlet Ports | (2) 1/4 in female NPT |
| Exhaust Ports | (2) 1/8 in female NPT |
| Body Material | Aluminum |
| Seal Material | Nitrile |
| Working Temperature | 23 to 140°F |
| Electrical Connection | 11 mm DIN style wiring plug |
| Manual Override | Locking |
| Mounting | Optional manifold |
| Weight | 1.2 lb |
Information About AVS-523C2-120A
The AVS-523C2-120A is part of the NITRA AVS series of aluminum-bodied solenoid air valves engineered for directional control in pneumatic systems. It utilizes a 5-port (4-way), 3-position center-closed configuration to manage airflow to cylinders and actuators. The valve includes double solenoids with locking manual override for controlled actuation and maintenance flexibility. Designed for use with air at pressures up to 115 psi, it features LED indication and an 11mm DIN-style wiring plug for secure electrical connection.
Key Features:
- 5-Port, 3-Position Design: Provides 4-way directional control with center-closed configuration.
- Double Solenoid Operation: Electrically actuated from both sides for controlled switching.
- 120 VAC Coil Voltage: Designed for standard industrial AC control power.
- Aluminum Valve Body: Durable construction for long service life.
- Locking Manual Override: Allows manual actuation for testing and maintenance.
- LED Status Indication: Visual confirmation of coil energization.
- 1/4 in NPT Ports: Standard inlet and outlet connections for pneumatic integration.
- 0.67 Cv Flow Coefficient: Supports efficient airflow for actuator operation.
The AVS-523C2-120A delivers the reliability and precision required for directional pneumatic control in industrial automation systems.
