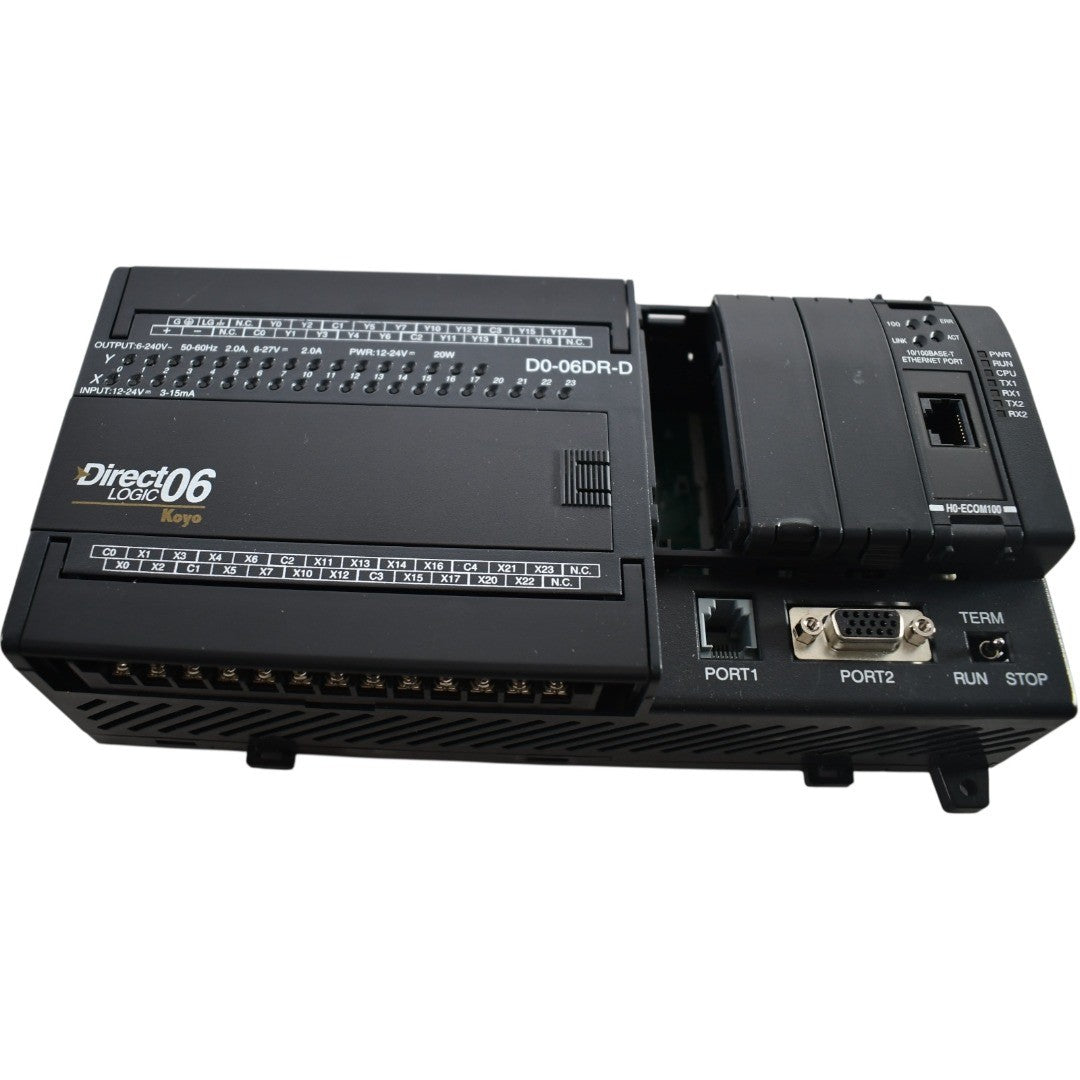

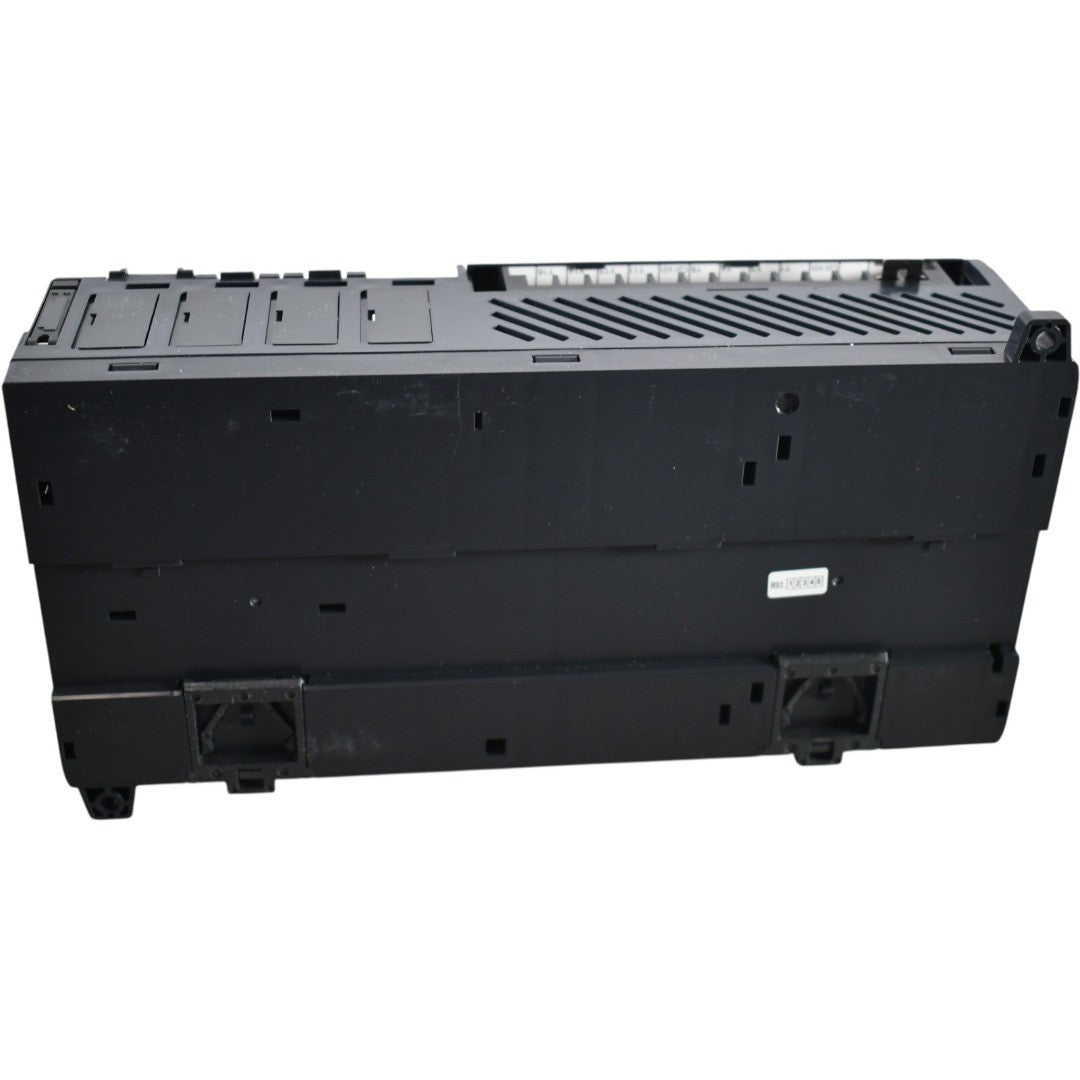

Automation Direct D0-06DR-D DirectLOGIC DL06 PLC with 20 Inputs and 16 Relay Outputs
- Regular price
- $965.00
- Sale price
- $965.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D0-06DR-D
Description
The Automation Direct D0-06DR-D is a compact programmable logic controller (PLC) from the DirectLOGIC DL06 series, designed for machine automation and industrial control applications. Featuring 20 DC inputs, 16 relay outputs, and 14.8K words of total memory, this controller provides flexible logic processing and communication capabilities. Its integrated high-speed counting, PID control functions, and multiple communication protocols make it suitable for a wide range of automation tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Industrial Automation |
| Part Number | D0-06DR-D |
| Subcategory | Programmable Logic Controllers (PLC) |
| Series | DirectLOGIC DL06 |
| Product Type | Programmable Logic Controller |
| Total Memory | 14.8K Words |
| Ladder Memory | 7K Words |
| User Data Memory | 7K Words |
| Programming Language | Ladder Logic |
| Programming Software | DirectSOFT v4.0 or Later |
| Communication Ports | (1) RS-232 RJ12, (1) RS-232/RS-422/RS-485 DB15HD |
| Supported Protocols | DirectNET, Modbus RTU, ASCII, K-sequence |
| Real Time Clock/Calendar | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes |
| Maximum Expansion Modules | 4 |
| External Power Requirement | 12–24 VDC |
| Discrete Input Points | 20 |
| Input Voltage | 12–24 VDC |
| Input Type | Sinking/Sourcing |
| Frequency Response | 7 kHz |
| Discrete Output Points | 16 |
| Output Type | Relay |
| Relay Configuration | 16 Form A (SPST) Relays |
| Load Current | 2 A per Point |
| Maximum PID Loops | 8 |
| High-Speed Input Points | 4 |
| Interrupts | 1 Input Interrupt, 1 Timer Interrupt |
| Weight | 2.60 lbs (1.18 kg) |
Information About D0-06DR-D
The D0-06DR-D is part of Automation Direct's DirectLOGIC DL06 family, offering a self-contained PLC platform with built-in I/O and expansion capability. The controller supports ladder logic programming through DirectSOFT software and includes onboard serial communication ports for networking, programming, and monitoring functions. Designed for industrial automation environments, the unit incorporates battery-backed retentive memory, a real-time clock/calendar, and support for up to four expansion modules. High-speed inputs, advanced counter functions, and multiple PID loops allow the controller to handle both discrete and process control applications.
Key Features:
- DirectLOGIC DL06 Platform: Compact PLC with integrated I/O and communication capabilities.
- 14.8K Word Memory: Includes 7K words of ladder memory and 7K words of user data memory.
- 20 DC Inputs: Supports sinking or sourcing input devices operating at 12–24 VDC.
- 16 Relay Outputs: Provides Form A relay outputs rated for AC or DC switching applications.
- Dual Communication Ports: Includes RS-232 and RS-232/RS-422/RS-485 connectivity.
- High-Speed Counter Functions: Supports up, down, up/down, and quadrature counting modes.
- Eight PID Loops: Enables advanced process control functionality.
- Expansion Capability: Supports up to four additional expansion modules.
The D0-06DR-D delivers the reliability and precision required for industrial machine control, process automation, and discrete manufacturing applications.
