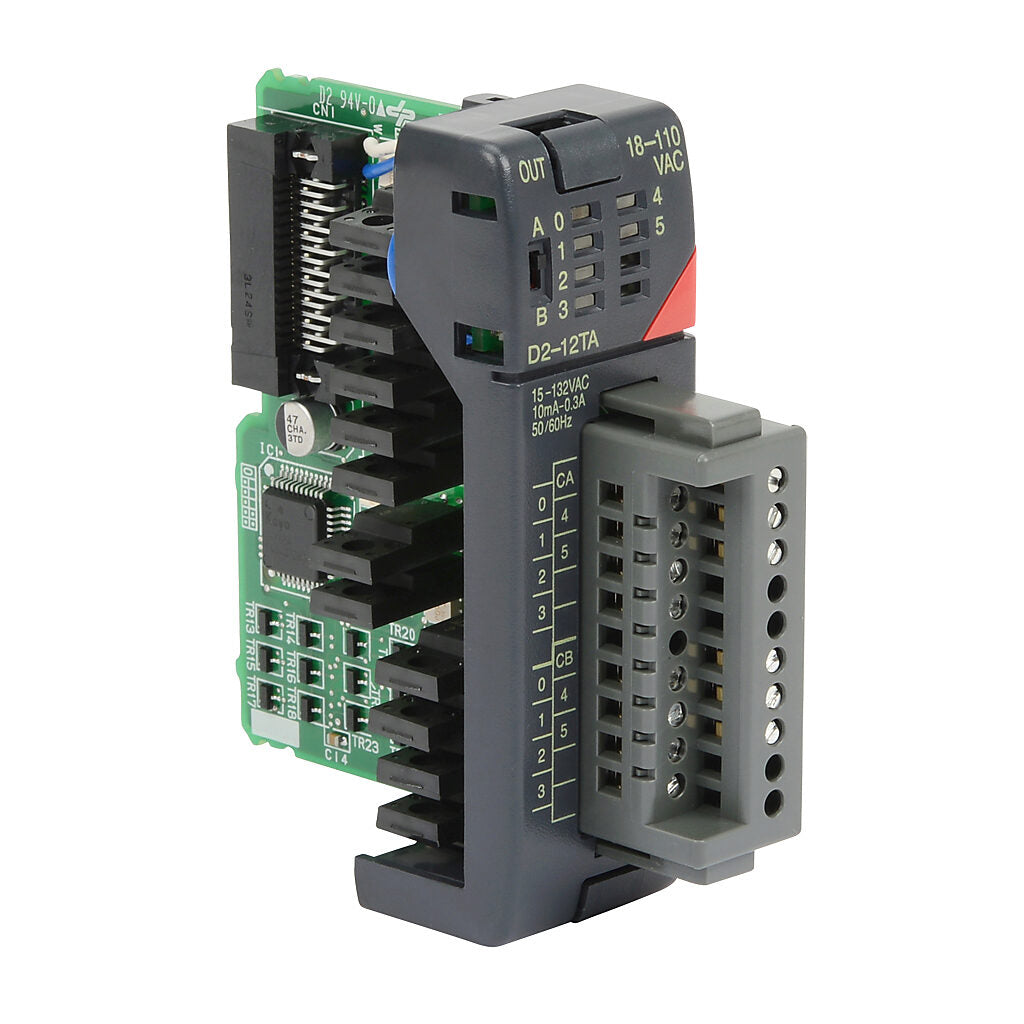

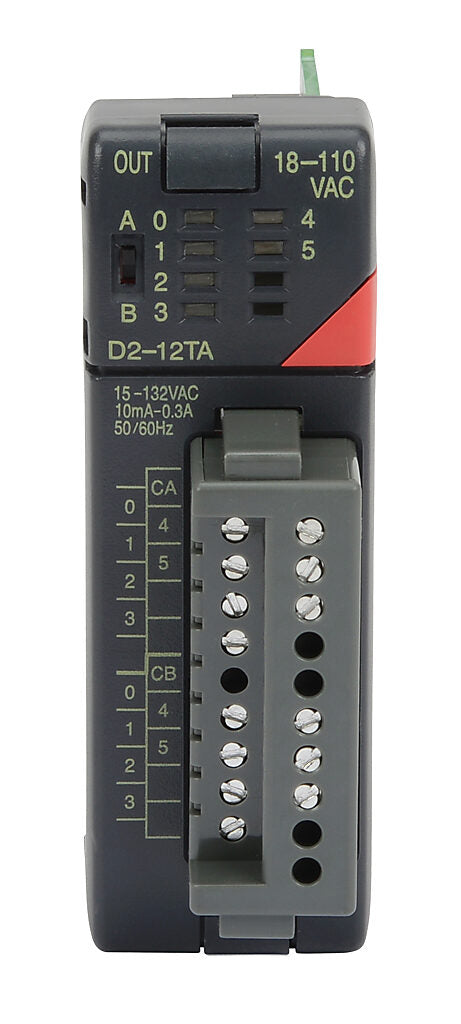

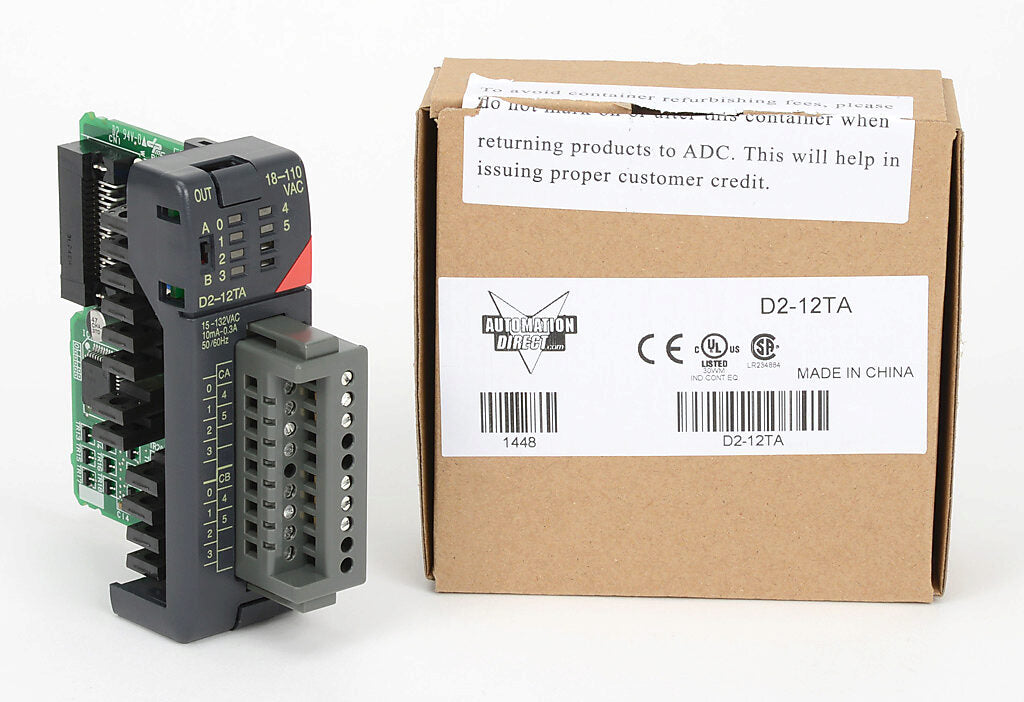

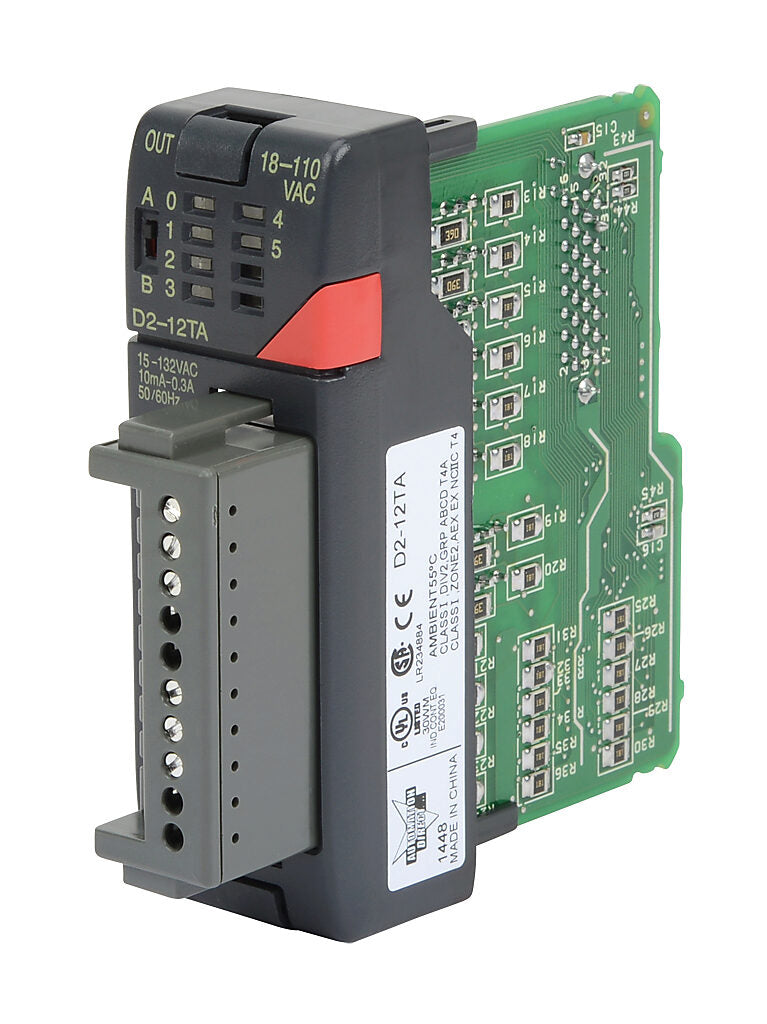

D2-12TA | Automation Direct DL205 12-Point 24–120VAC Discrete Output Module
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D2-12TA
Description
The Automation Direct D2-12TA is a DirectLOGIC DL205 discrete output module designed for switching AC loads in PLC-controlled systems. It provides 12 triac-based output points rated for 24–120 VAC applications. The D2-12TA is engineered for reliable control of lighting, solenoids, and other AC devices in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs & I/O |
| Part Number | D2-12TA |
| Subcategory | Discrete Output Modules |
| Series | DirectLOGIC DL205 |
| I/O Module Type | Discrete output |
| Number of Output Points | 12 |
| Nominal Output Voltage | 24–120 VAC |
| Number of Isolated Commons | 2 |
| Points per Common | 6 |
| Load Current | 0.3A/point, 1.8A/common |
| Output Type | Triac (AC switching) |
| Fuse Type | Replaceable fuse |
| Includes | Removable terminal block |
| Programming Software | DirectSOFT v4.0 or later |
| Mounting | DL205 base unit slot |
| Weight | 0.7 lb |
Information About D2-12TA
The D2-12TA is part of the DirectLOGIC DL205 series of modular PLC I/O components. It features 12 discrete AC output channels organized into two isolated commons, allowing segmented load control. Each group of six outputs shares a common connection, simplifying wiring and distribution. Designed for use with DL205 base units and programmed using DirectSOFT v4.0 or later, this module supports dependable AC load switching with built-in replaceable fuse protection.
Key Features:
- 12 Discrete AC Outputs: Provides twelve triac output points for 24–120 VAC loads.
- Dual Isolated Commons: Two commons with six points each for flexible load grouping.
- AC Voltage Switching: Rated for nominal 24–120 VAC output applications.
- Load Capacity: Supports 0.3A per point and 1.8A per common.
- Replaceable Fuse Protection: Integrated fuse design for field serviceability.
- DL205 Compatibility: Designed for use with DirectLOGIC DL205 PLC systems.
- Removable Terminal Block: Simplifies installation and module replacement.
The D2-12TA delivers the reliability and precision required for AC discrete output control in industrial PLC systems.
Description
The Automation Direct D2-12TA is a DirectLOGIC DL205 discrete output module designed for switching AC loads in PLC-controlled systems. It provides 12 triac-based output points rated for 24–120 VAC applications. The D2-12TA is engineered for reliable control of lighting, solenoids, and other AC devices in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs & I/O |
| Part Number | D2-12TA |
| Subcategory | Discrete Output Modules |
| Series | DirectLOGIC DL205 |
| I/O Module Type | Discrete output |
| Number of Output Points | 12 |
| Nominal Output Voltage | 24–120 VAC |
| Number of Isolated Commons | 2 |
| Points per Common | 6 |
| Load Current | 0.3A/point, 1.8A/common |
| Output Type | Triac (AC switching) |
| Fuse Type | Replaceable fuse |
| Includes | Removable terminal block |
| Programming Software | DirectSOFT v4.0 or later |
| Mounting | DL205 base unit slot |
| Weight | 0.7 lb |
Information About D2-12TA
The D2-12TA is part of the DirectLOGIC DL205 series of modular PLC I/O components. It features 12 discrete AC output channels organized into two isolated commons, allowing segmented load control. Each group of six outputs shares a common connection, simplifying wiring and distribution. Designed for use with DL205 base units and programmed using DirectSOFT v4.0 or later, this module supports dependable AC load switching with built-in replaceable fuse protection.
Key Features:
- 12 Discrete AC Outputs: Provides twelve triac output points for 24–120 VAC loads.
- Dual Isolated Commons: Two commons with six points each for flexible load grouping.
- AC Voltage Switching: Rated for nominal 24–120 VAC output applications.
- Load Capacity: Supports 0.3A per point and 1.8A per common.
- Replaceable Fuse Protection: Integrated fuse design for field serviceability.
- DL205 Compatibility: Designed for use with DirectLOGIC DL205 PLC systems.
- Removable Terminal Block: Simplifies installation and module replacement.
The D2-12TA delivers the reliability and precision required for AC discrete output control in industrial PLC systems.
