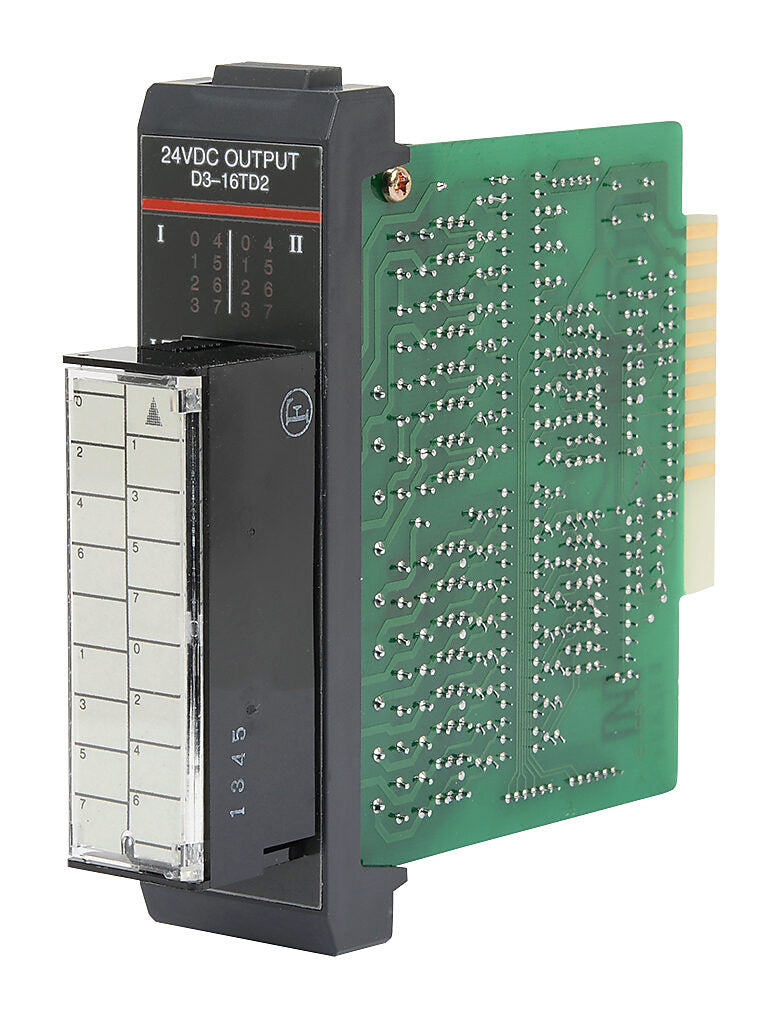

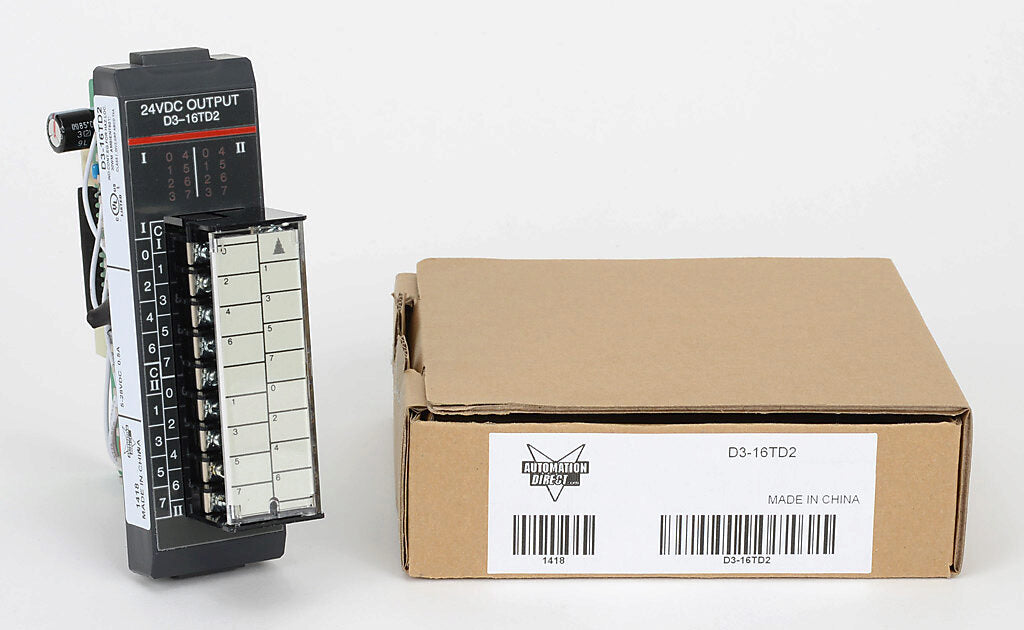

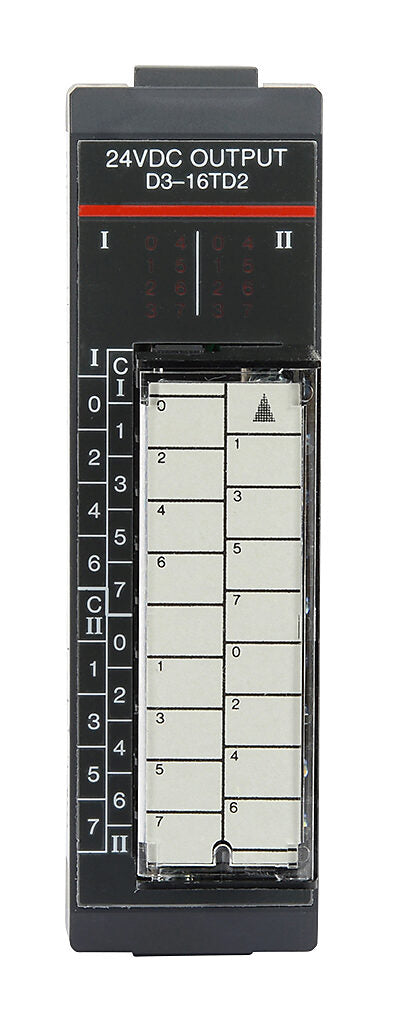

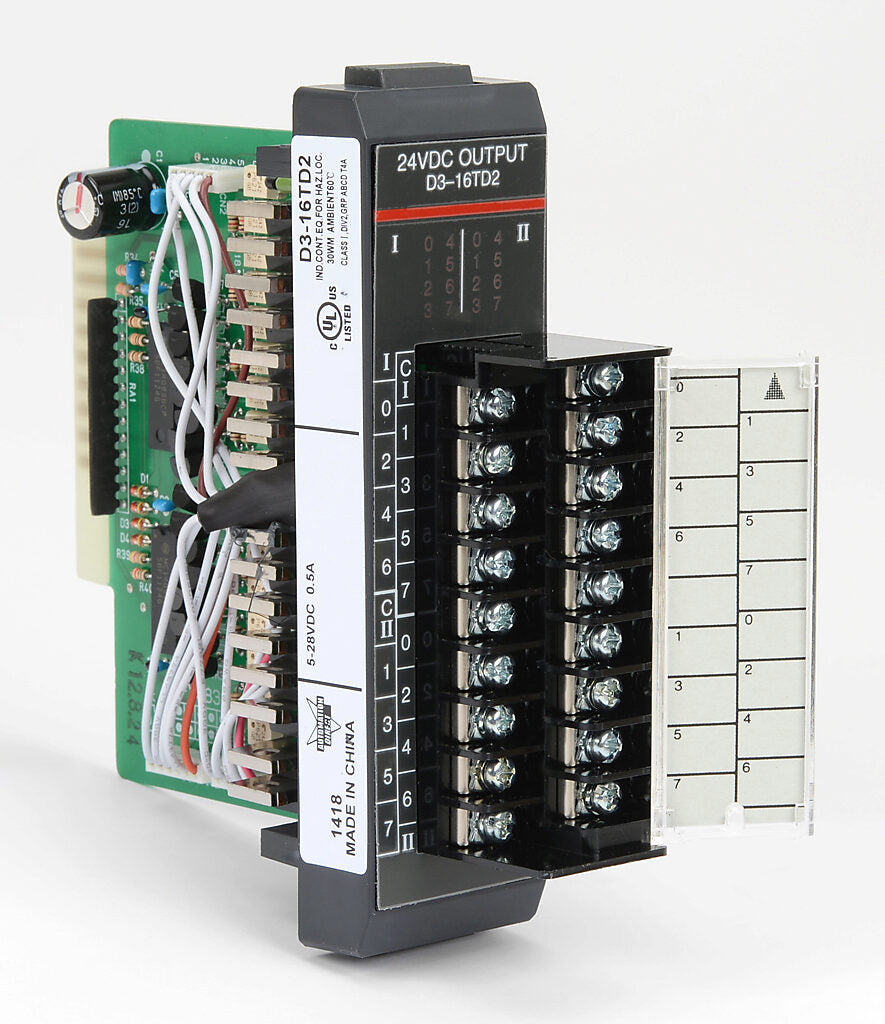

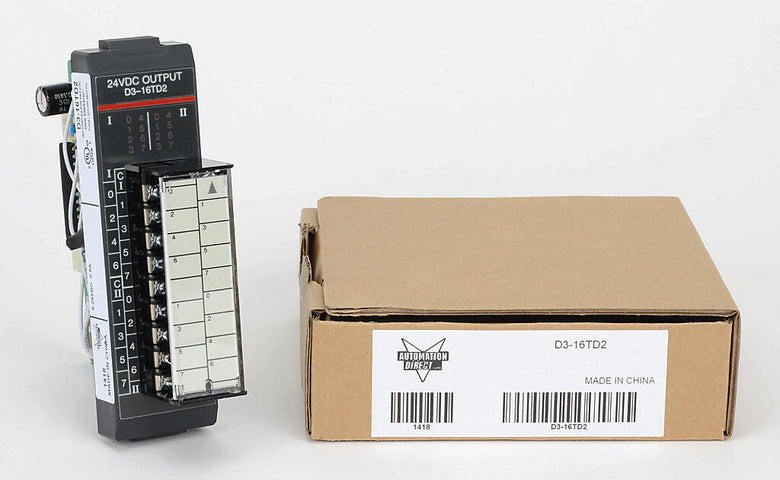

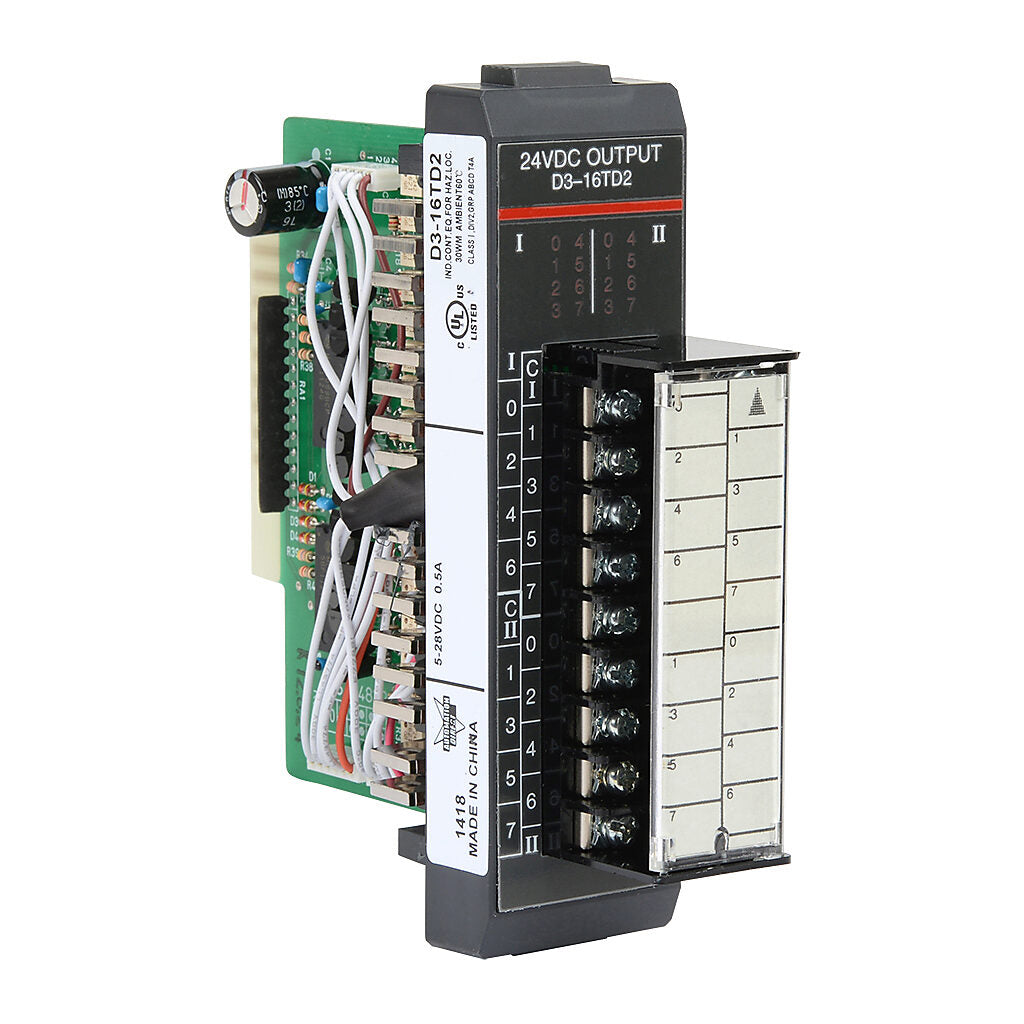

D3-16TD2 | Automation Direct DL305 16-Point 6–24VDC Sourcing Output Module
- Regular price
- $224.00
- Sale price
- $224.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D3-16TD2
Description
The Automation Direct D3-16TD2 is a DL305 series 16-point discrete output module designed for DC control applications. It provides 6–24 VDC sourcing outputs with two isolated commons for flexible load grouping. Rated at 0.5A per point, this module is suitable for driving relays, solenoids, and other DC field devices in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLC I/O Modules |
| Part Number | D3-16TD2 |
| Subcategory | Discrete Output Modules |
| Series | DirectLOGIC DL305 |
| I/O Type | Discrete output |
| Number of Points | 16 |
| Output Voltage Range | 6–24 VDC |
| Output Type | Sourcing |
| Number of Isolated Commons | 2 |
| Points per Common | 8 |
| Current Rating (Per Point) | 0.5A |
| Current Rating (Per Common) | 3A |
| Terminal Block | Removable (included) |
| Application | DC load switching for PLC systems |
| Weight | 0.8 lb |
Information About D3-16TD2
The D3-16TD2 is part of the DirectLOGIC DL305 PLC platform, engineered for reliable discrete output control in modular automation systems. It features 16 sourcing DC outputs divided into two isolated commons with eight points per common, allowing segmented load control. Each output supports up to 0.5A per point and 3A per common, making it appropriate for medium-duty DC switching tasks. The module includes a removable terminal block to simplify installation, maintenance, and field wiring.
Key Features:
- 16 Sourcing DC Outputs: Provides sixteen 6–24 VDC discrete output points.
- Dual Isolated Commons: Two isolated commons with eight outputs per group.
- 0.5A Per Point Rating: Suitable for driving relays, solenoids, and DC loads.
- 3A Per Common Capacity: Supports grouped load control with defined current limits.
- DL305 Compatibility: Designed for use with DirectLOGIC DL305 PLC systems.

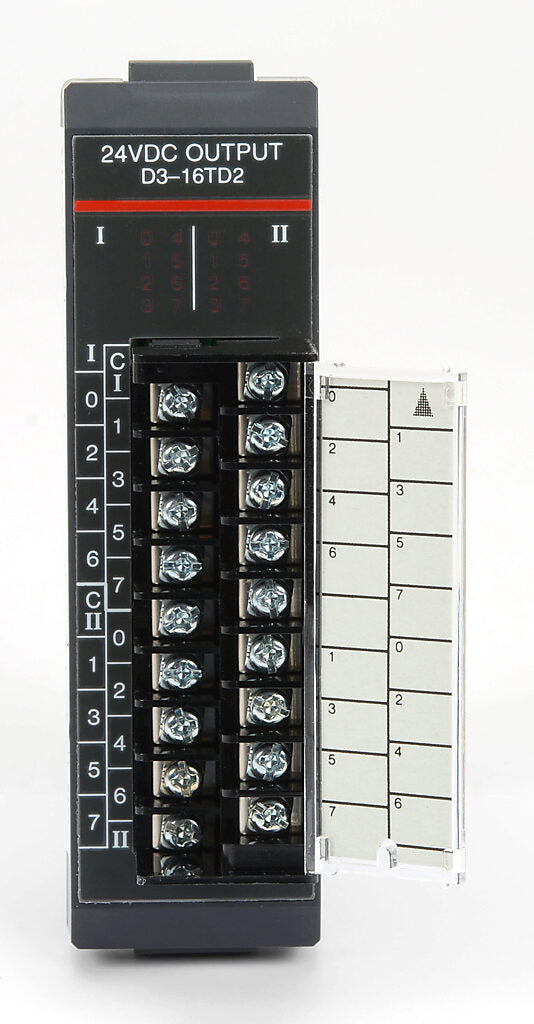

- Removable Terminal Block: Simplifies wiring, replacement, and maintenance.
- Industrial DC Operation: Optimized for low-voltage control panel applications.
The D3-16TD2 delivers the reliability and precision required for discrete DC output control in PLC-based automation systems.
