EA1-S6MLW | Automation Direct C-more Micro 5.7" Touchscreen HMI Operator Interface
- Regular price
- $257.00
- Sale price
- $257.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EA1-S6MLW
Description

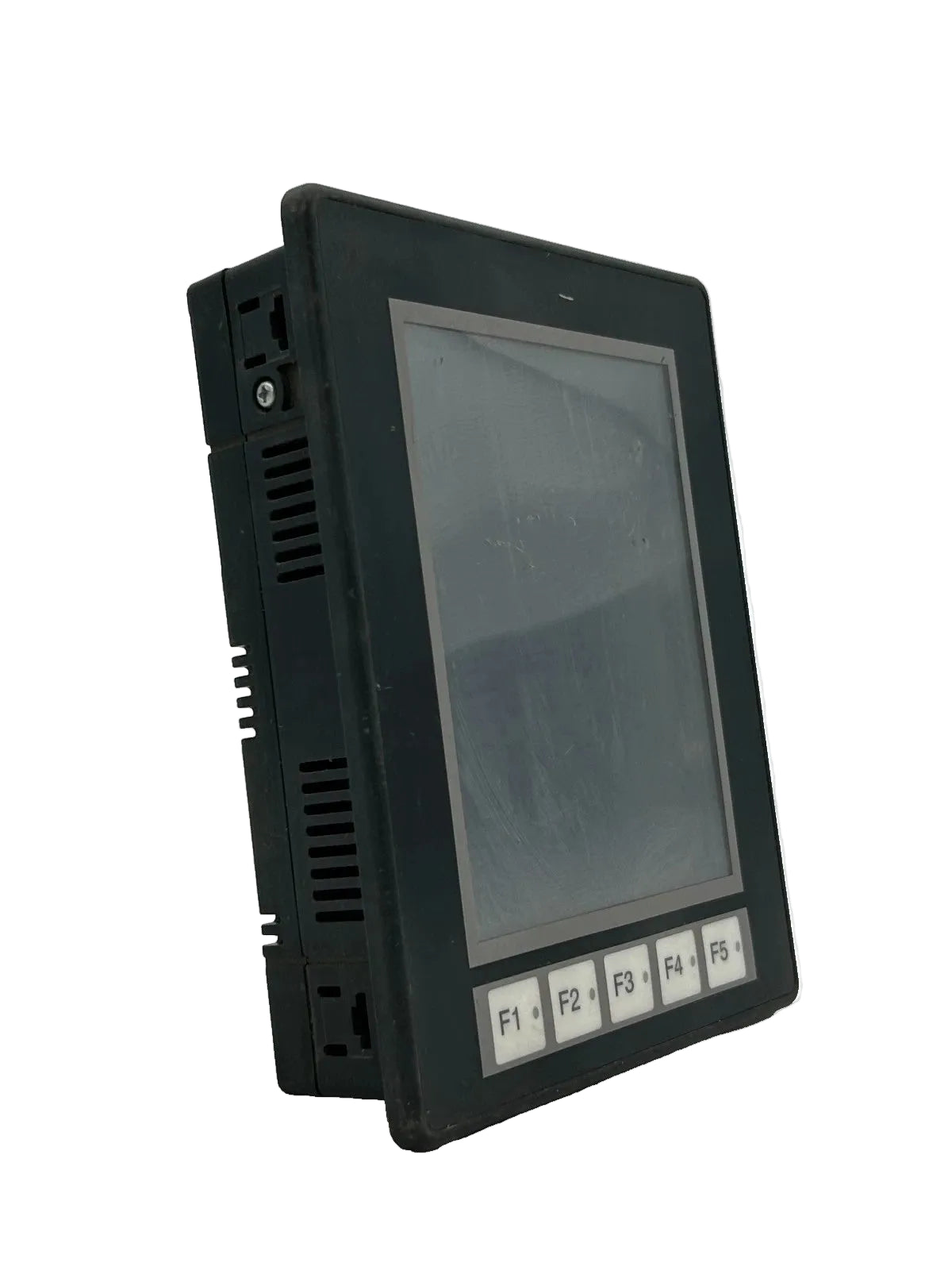

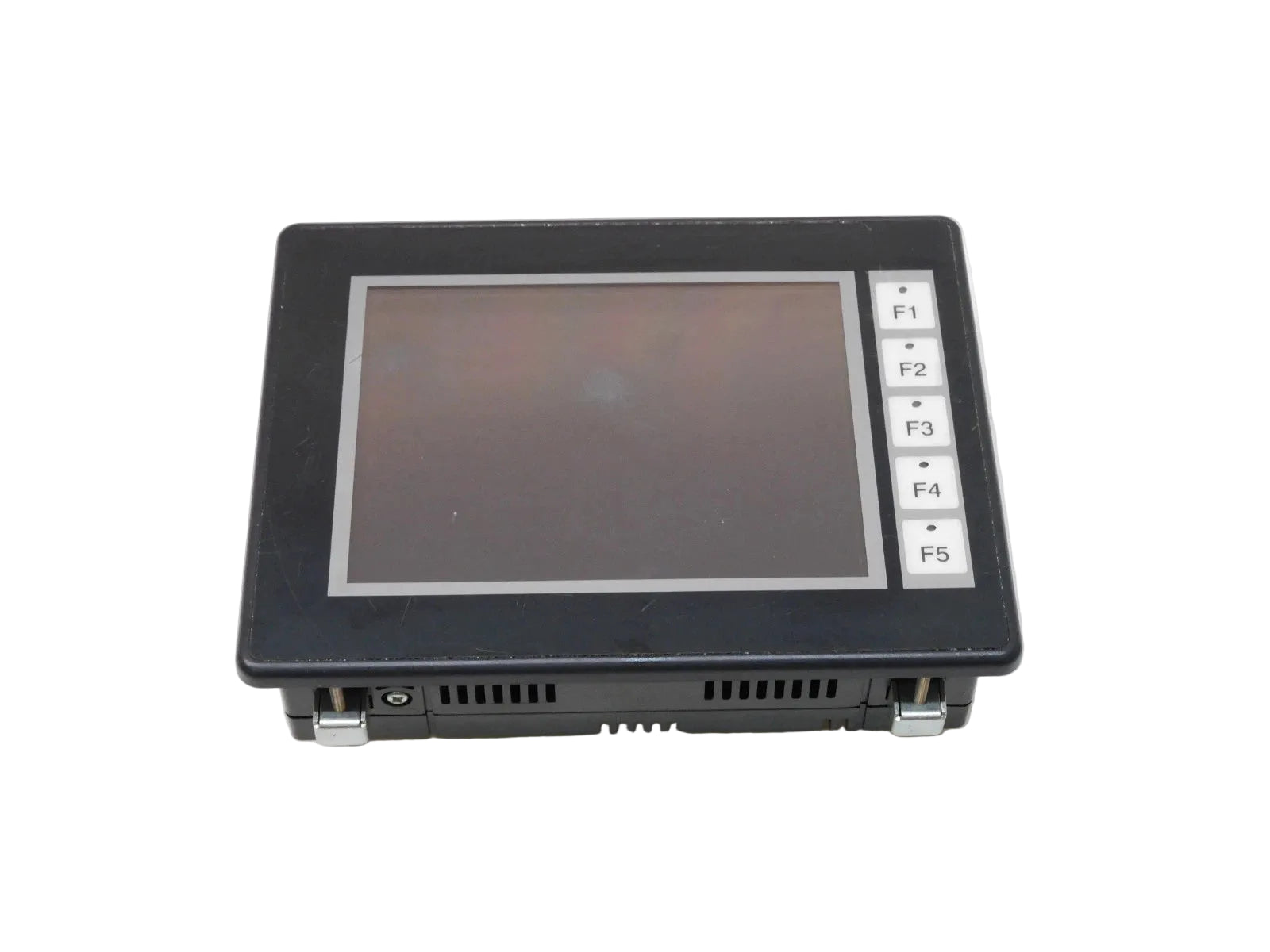

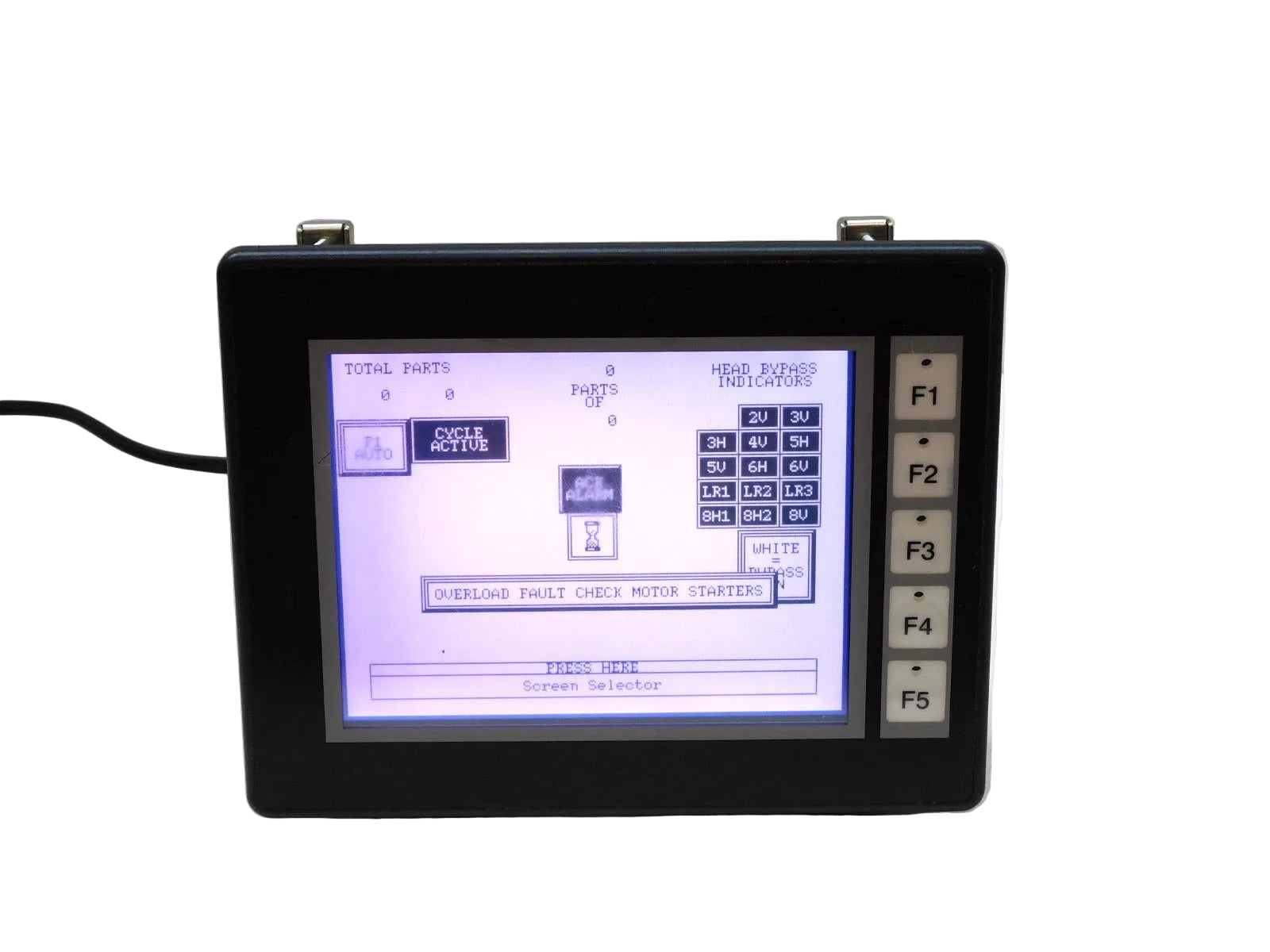

The Automation Direct EA1-S6MLW is a C-more Micro graphic operator interface designed for industrial machine control and monitoring. It features a 5.7-inch monochrome STN LCD display with a 320 × 240 resolution and selectable screen colors. The panel includes a touchscreen interface and programmable function keys for efficient operator interaction.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | HMI / MMI / OIT |
| Part Number | EA1-S6MLW |
| Subcategory | Operator Interface |
| Series | C-more Micro |
| Display Type | STN LCD |
| Screen Size | 5.7 Inch |
| Resolution | 320 × 240 |
| Display Color | Monochrome (Selectable Colors) |
| Backlight Type | LED |
| Interface Type | Touch Screen |
| Function Keys | 5 User-Defined Keys with LED Indicators |

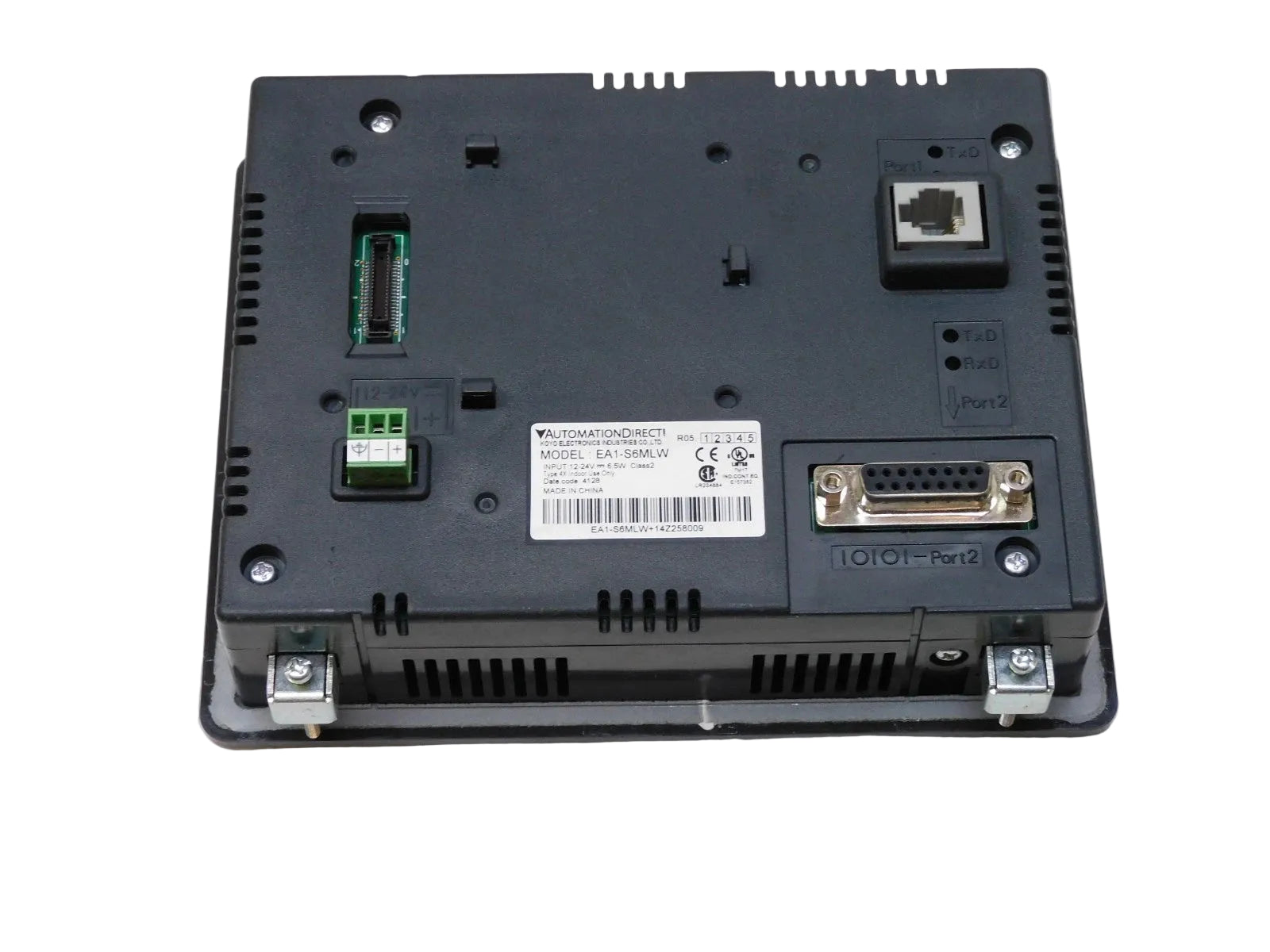

| Communication Port | RS-232 (RJ12) |
| Operating Temperature | 0°C to 50°C |
| Humidity Range | 5% to 95% Non-Condensing |
| Protection Rating | NEMA 4 / 4X, IP65 |
| Dimensions | 114 × 82 × 40.5 mm |
| Weight | 2.00 lbs |
Information About EA1-S6MLW
The EA1-S6MLW is part of the Automation Direct C-more Micro HMI series used in industrial automation systems. It incorporates an STN LCD display with a high-contrast LED backlight and selectable color schemes including white, pink variations, and red. The interface supports communication through an RS-232 port and allows operators to control machines through touchscreen inputs and programmable function keys with LED indicators. Programming and configuration are performed using EA-MG-PGMSW Micro-Graphic software, which provides simulation, object libraries, and graphical screen design tools.
Key Features:
-
5.7-Inch STN LCD Display: Provides clear monochrome visualization with 320 × 240 resolution.
-
Touchscreen Interface: Allows direct machine control through an interactive display.
-
Selectable Display Colors: Supports white, pink1, pink2, pink3, and red screen options.
-
LED Backlight System: High-contrast white LED illumination improves visibility.
-
Five Programmable Function Keys: User-defined keys with LED indicators for quick commands.
-
RS-232 Communication Port: Enables connection to controllers and automation equipment.
-
NEMA 4/4X IP65 Rated Enclosure: Designed for industrial panel environments.
-
C-more Micro Programming Support: Compatible with EA-MG-PGMSW configuration software.
The EA1-S6MLW delivers the reliability and precision required for operator interface control in industrial automation systems.
