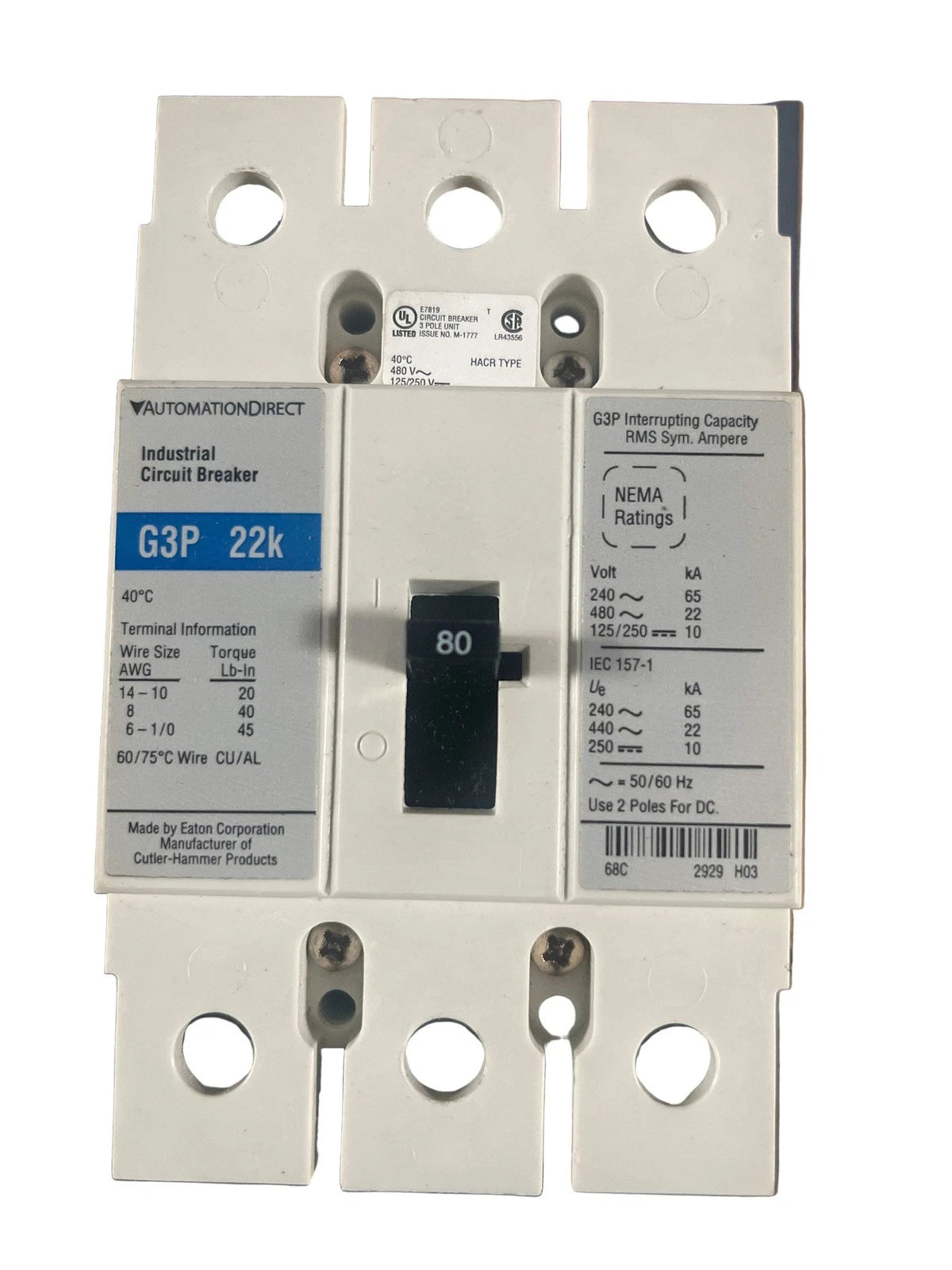

G3P-080 | Automation Direct Eaton 80A 3-Pole Molded Case Circuit Breaker
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: G3P-080
Description
The Automation Direct G3P-080 is an Eaton-manufactured molded case circuit breaker designed for feeder and branch circuit protection. Rated at 80A with a 100A frame size, it supports up to 480 VAC and 250 VDC applications. This three-pole, thermal magnetic breaker provides dependable overcurrent protection in industrial and commercial electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct (Eaton) |
| Category | Circuit Protection |
| Part Number | G3P-080 |
| Subcategory | Molded Case Circuit Breakers |
| Circuit Breaker Type | Molded case |
| Circuit Type | Feeder and branch |
| Frame Size | 100A |
| Amperage Rating | 80A |
| Number of Poles | 3 |
| Voltage Rating | 480 VAC / 250 VDC |
| Trip Type | Thermal magnetic |
| Interrupting Rating | 22kA @ 480 VAC |
| Current-Limiting | No |
| UL Rating | UL 489 listed |
| HACR Rated | Yes |
| Reverse Feed Capable | Yes |
| Mounting | Panel |
| Included Accessories | Line and load lug terminals |
| Weight | 3.0 lb |
Information About G3P-080
The G3P-080 is part of the AutomationDirect G3 series of molded case circuit breakers built for reliable distribution and motor circuit protection. It features a thermal magnetic trip mechanism that responds to both overload and short-circuit conditions. With a 22kA interrupting rating at 480 VAC, the breaker is suitable for demanding industrial panel installations. The unit is UL 489 listed, HACR rated, reverse feed capable, and includes line and load lug terminals for panel mounting applications.
Key Features:
- 80A Amperage Rating: Designed for feeder and branch circuit protection.
- 3-Pole Configuration: Provides three-phase circuit interruption capability.
- Thermal Magnetic Trip: Protects against overload and short-circuit conditions.
- 22kA Interrupting Capacity: Rated at 480 VAC for high fault current environments.
- 480 VAC / 250 VDC Rating: Suitable for AC and DC distribution systems.
- UL 489 Listed: Certified for industrial and commercial protection applications.
- HACR Rated: Approved for heating, air conditioning, and refrigeration circuits.
- Panel Mount Design: Includes line and load lug terminals for secure installation.
The G3P-080 delivers the reliability and precision required for industrial feeder and branch circuit overcurrent protection.
