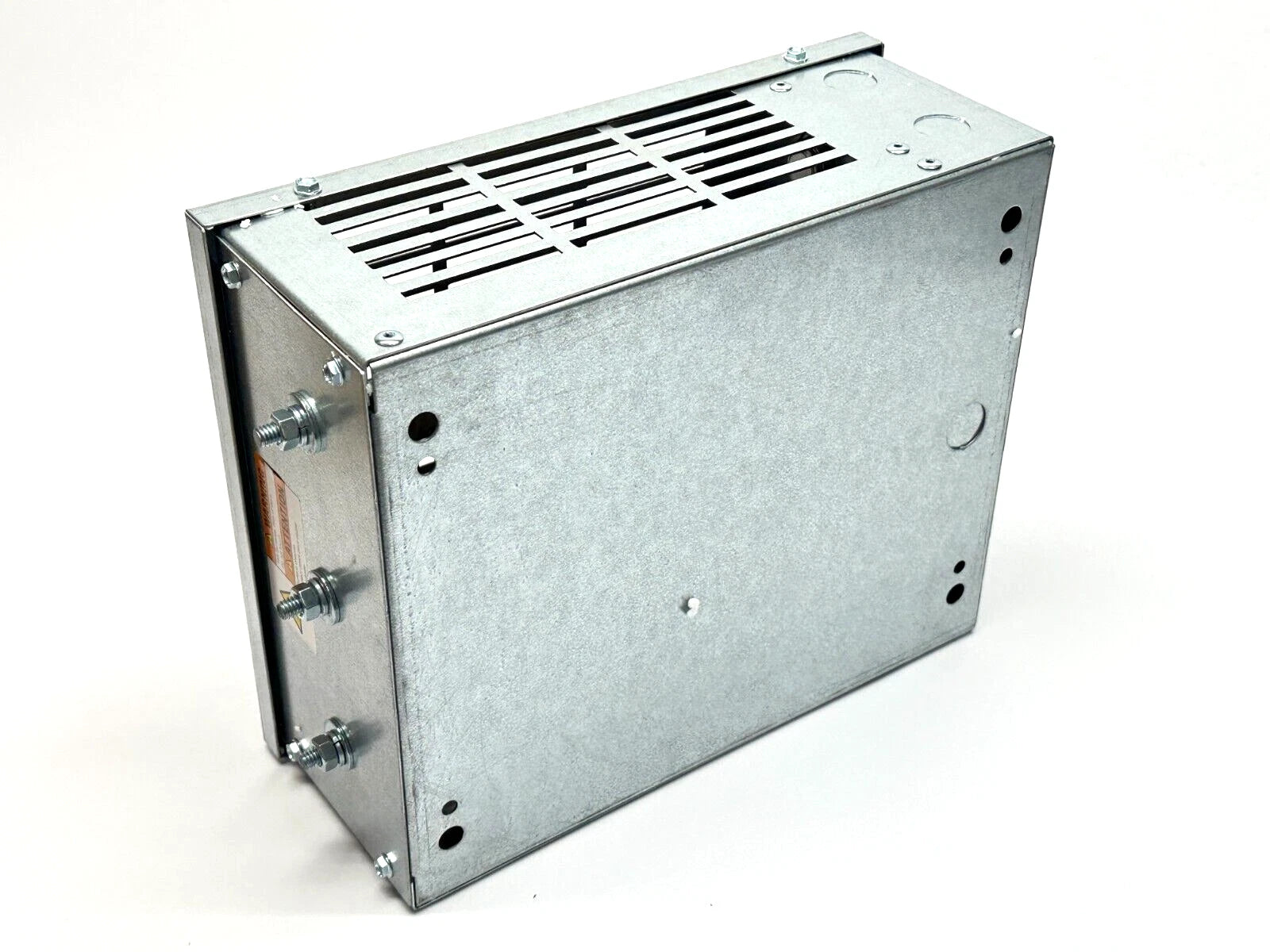

GS-4015-BR-ENC | AutomationDirect 1kW 50Ω NEMA 1 Brake Resistor
- Regular price
- $547.00
- Sale price
- $547.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GS-4015-BR-ENC
Description
The AutomationDirect GS-4015-BR-ENC is a 1 kW enclosed braking resistor designed for dynamic braking in AC drive systems. It features a 50 ohm resistance value and a NEMA 1 enclosure with an integrated temperature switch for thermal protection. This unit is intended for use with compatible AutomationDirect AC drives, including the GS3-4015.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AutomationDirect |
| Category | Drives |
| Part Number | GS-4015-BR-ENC |
| Subcategory | Brake Resistor |
| Brake Resistor Power Rating | 1 kW |
| Resistance | 50 Ohm |
| Enclosure Type | NEMA 1 |
| Built-in Temperature Switch | Yes |
| Connection Type | Terminal Block |
| Application | Dynamic Braking for AC Drives |
| Compatible Drives | GS3-4015 and other supported GS series drives |
| Country of Origin | USA |
| Weight | 11.00 lbs |
Information About GS-4015-BR-ENC
The GS-4015-BR-ENC is part of the AutomationDirect GS series braking resistor line developed for dynamic braking applications up to 600V drive systems. It is an enclosed NEMA 1 model equipped with a built-in temperature switch to protect against overheating during high-energy deceleration cycles. The resistor is rated at 1.0 kW and 50 ohms, making it suitable for specific mid-range AC drive configurations. Designed for industrial panel installation, it connects via terminal block and is manufactured in the USA.
Key Features:
-
1 kW Power Rating: Designed to dissipate braking energy in dynamic braking applications.
-
50 Ohm Resistance: Matched for compatible GS series AC drive braking circuits.
-
NEMA 1 Enclosure: Provides basic indoor protection for panel-mounted installations.
-
Built-In Temperature Switch: Integrated thermal protection enhances operational safety.
-
AC Drive Compatibility: Suitable for use with GS3-4015 and other supported drives.
-
Terminal Block Connection: Secure wiring interface for industrial environments.
-
Industrial Construction: Designed for continuous-duty drive systems.
The GS-4015-BR-ENC delivers the reliability and precision required for controlled motor deceleration and dynamic braking in AC drive systems.
