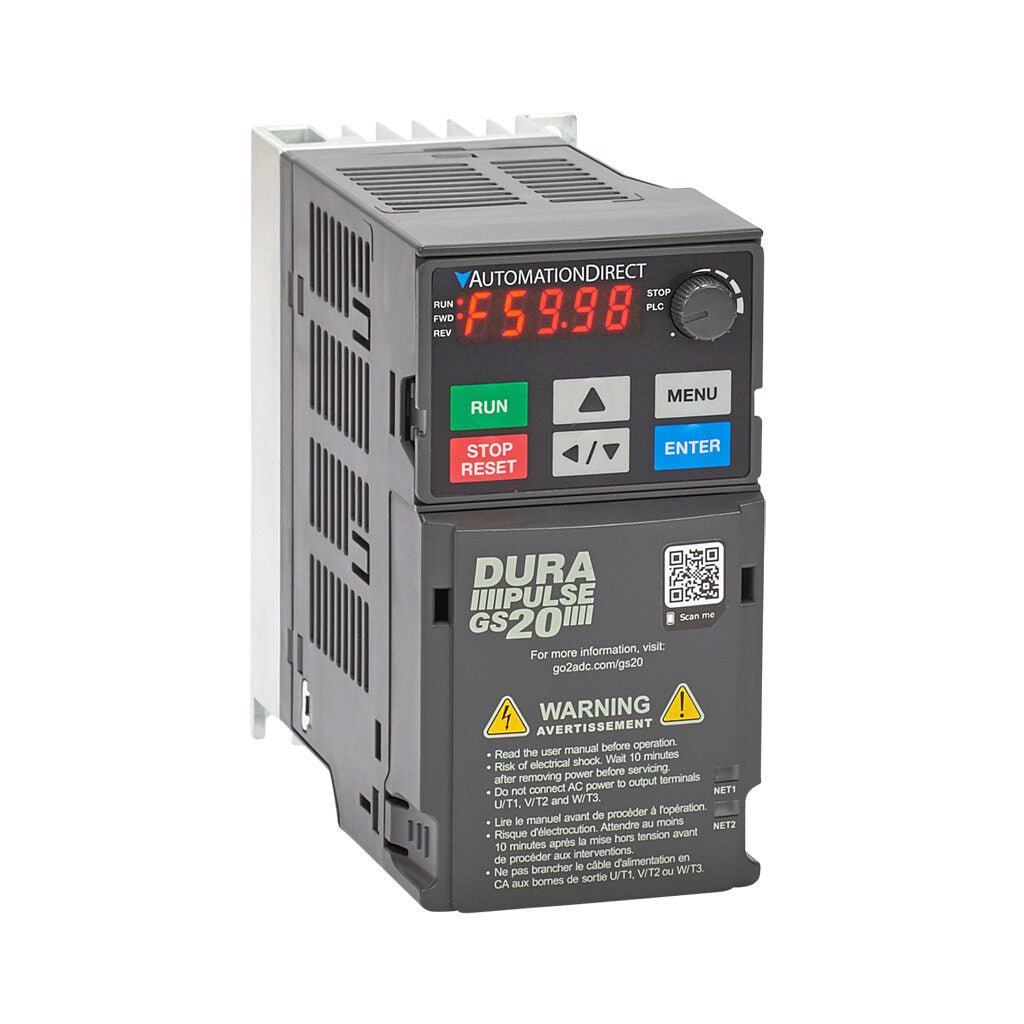

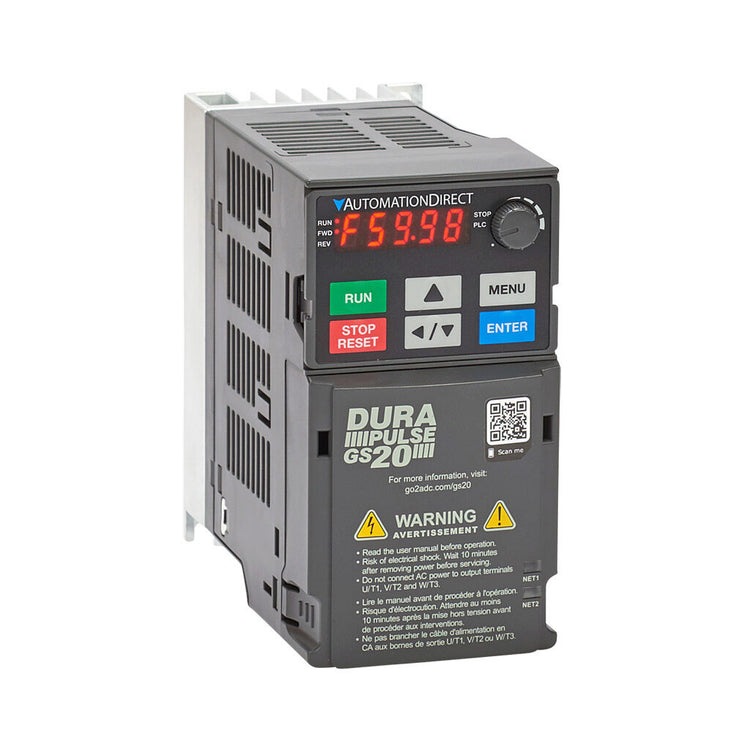

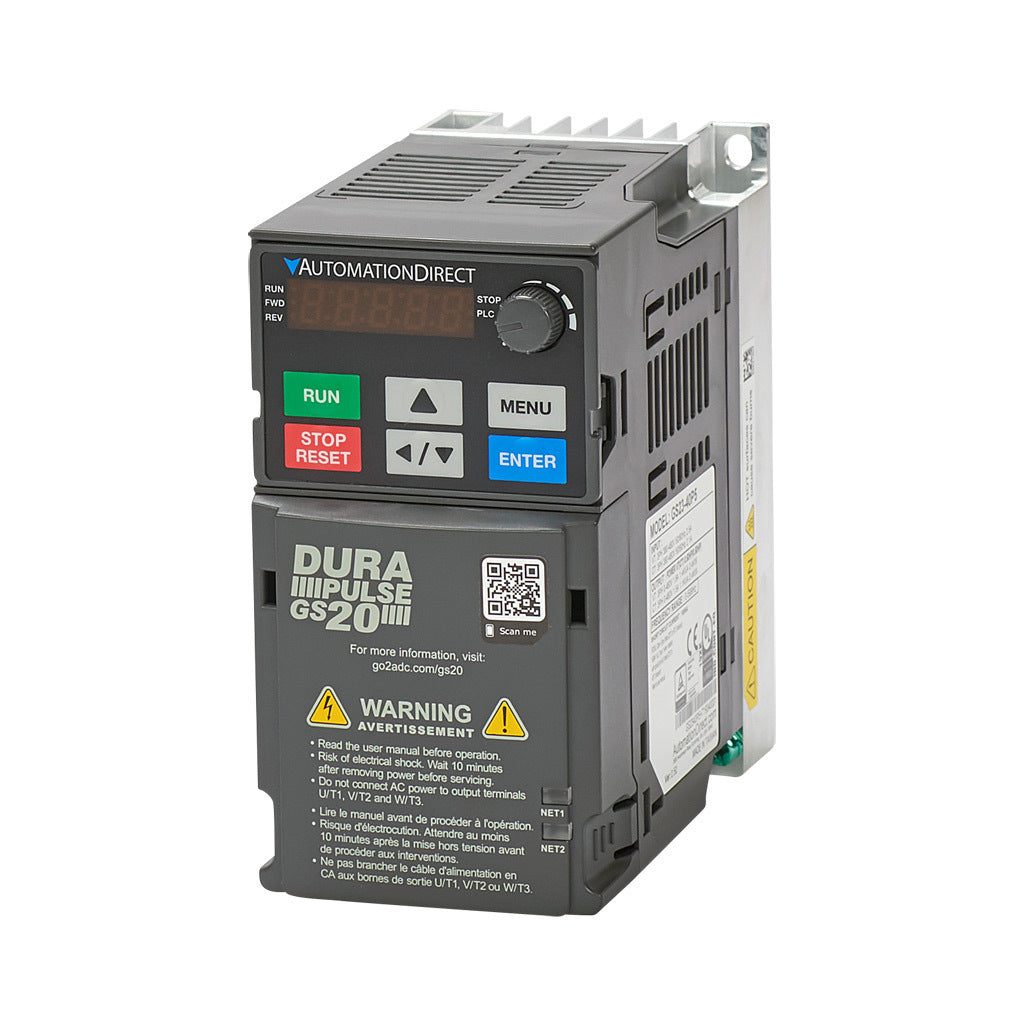

GS23-40P5 | Automation Direct DURApulse GS20 1/2HP 460V AC Drive
- Regular price
- $287.00
- Sale price
- $287.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GS23-40P5
Description
The Automation Direct GS23-40P5 is a DURApulse GS20 series general purpose AC drive designed for precise control of three-phase motors. Rated for 1/2 HP with 460 VAC three-phase input and output, it supports multiple motor control modes including SVC, V/Hz, FOC, and torque control. This compact IP20 enclosed drive is engineered for industrial applications requiring reliable speed regulation and flexible integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Variable Frequency Drives |
| Part Number | GS23-40P5 |
| Subcategory | AC Drives |
| Series | DURApulse GS20 |
| Controller Type | General purpose |
| Input Voltage | 460 VAC, 3-phase |
| Output Voltage | 460 VAC, 3-phase |
| Horsepower Rating | 1/2 HP (3-phase input) |
| Amperage Rating | 1.5A |
| Variable Torque Amperage | 1.8A |
| Control Modes | SVC, V/Hz, FOC, torque |
| Output Frequency Range | 0.1–599 Hz |
| Carrier Frequency Range | 2–15 kHz |
| Dynamic Braking | Integrated |
| Safe Torque Off (STO) | Yes |
| Analog Inputs | 2 (current/voltage) |
| Analog Outputs | 1 (current/voltage) |
| Discrete Inputs | 7 (24 VDC, sinking/sourcing) |
| Discrete Outputs | 3 (relay/sinking/sourcing) |
| Communication Ports | RS-485 (RJ45), USB B |
| Protocols | Modbus RTU Slave, Modbus ASCII Slave |
| Mounting | Panel or wall |
| Enclosure Rating | IP20 |
| Operating Temperature | -20 to 50°C |
| Connector Type | Spring clamp terminals |
| Optional Communication | EtherNet/IP and Modbus TCP card available |
| Weight | 2.2 lb |
Information About GS23-40P5
The GS23-40P5 is part of the DURApulse GS20 family of variable frequency drives built for industrial motor control systems. It operates on 460 VAC three-phase input power and delivers three-phase 460 VAC output for induction and permanent magnet AC motors. The drive incorporates integrated dynamic braking and Safe Torque Off (STO) functionality to enhance operational control and safety. With RS-485 and USB connectivity, support for Modbus RTU/ASCII protocols, and optional EtherNet/IP or Modbus TCP communication cards, it integrates into modern networked automation environments.
Key Features:
- 1/2 HP Rating: Designed for 460 VAC three-phase motor control applications.
- Multiple Control Modes: Supports SVC, V/Hz, FOC, and torque control.
- Integrated Dynamic Braking: Improves controlled deceleration performance.
- Safe Torque Off (STO): Built-in safety feature for secure motor shutdown.
- Wide Frequency Range: Adjustable output from 0.1 to 599 Hz.

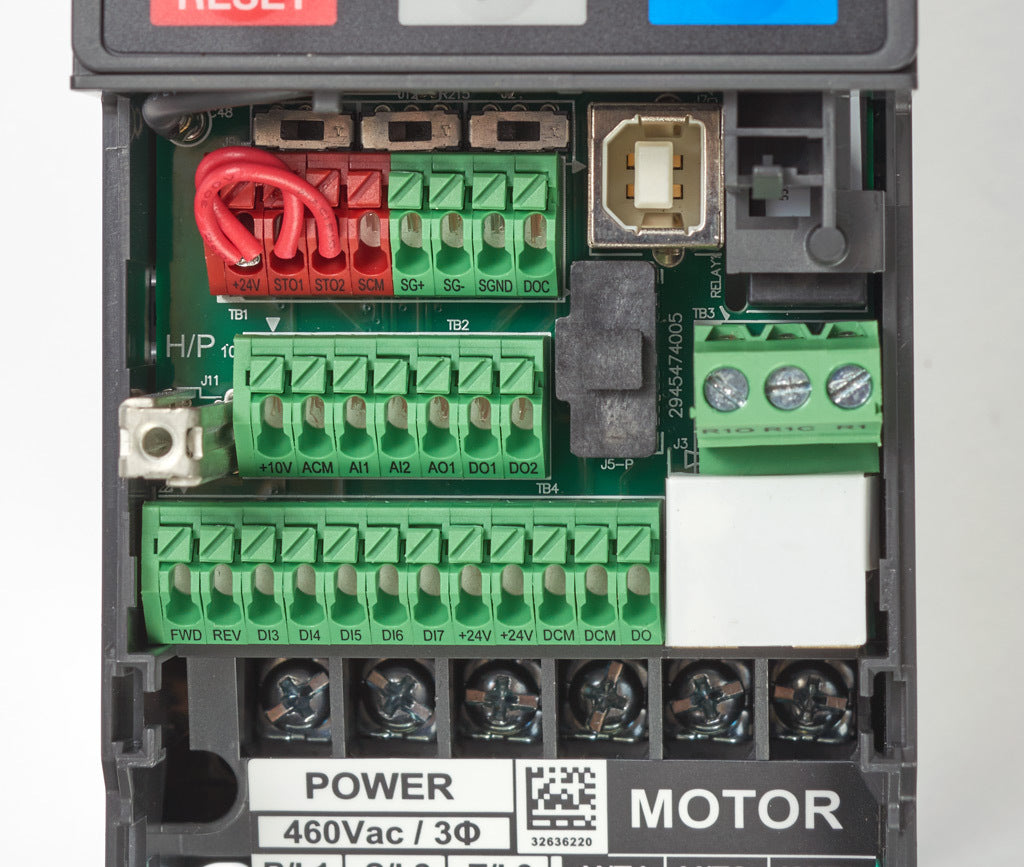

- Flexible I/O Configuration: Includes analog, discrete, and relay outputs.
- Communication Ready: RS-485 and USB ports with Modbus RTU/ASCII support.
- Compact Frame Size A4: Panel or wall mount installation with IP20 enclosure.
The GS23-40P5 delivers the reliability and precision required for industrial variable frequency motor drive applications.
