Product Description P/N: GS23-47P5
Description

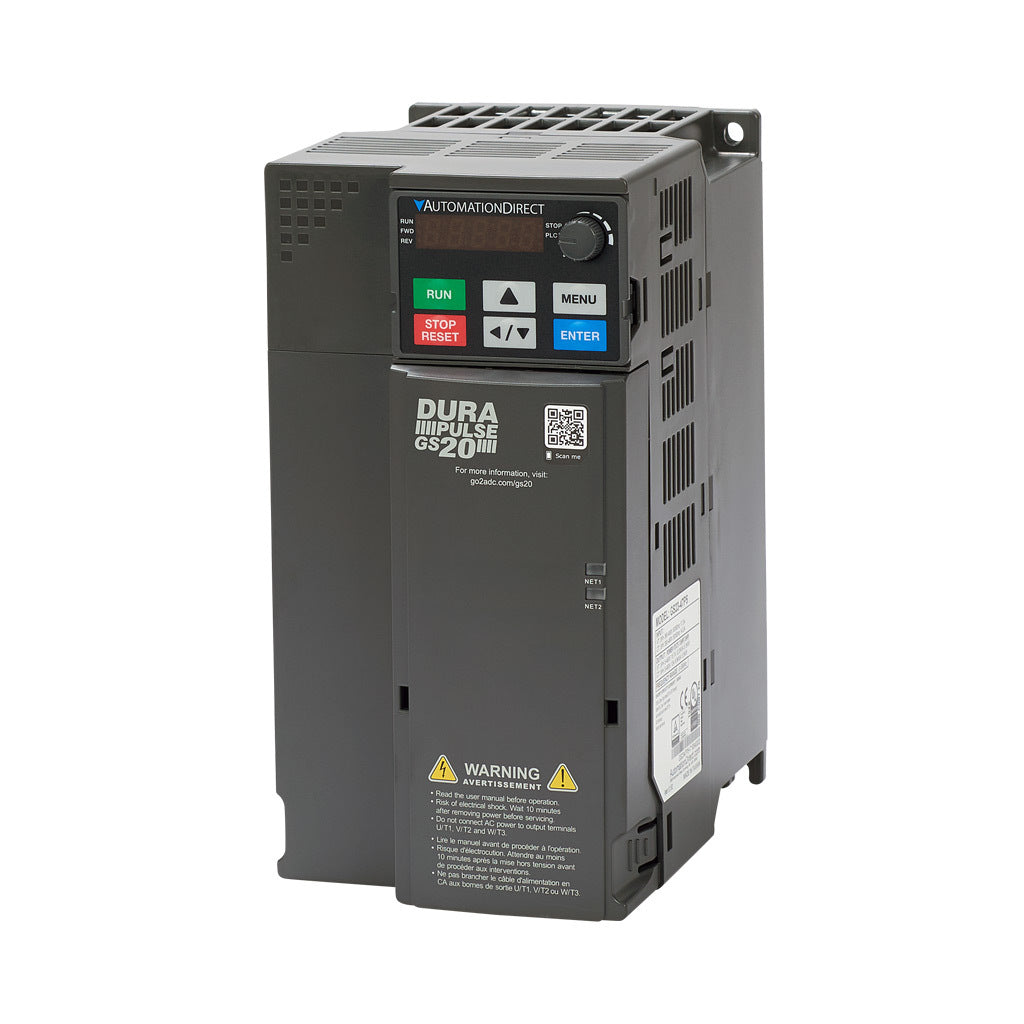

The Automation Direct GS23-47P5 is a DURApulse GS20 series AC drive designed for precise speed and torque control of three-phase motors. Rated for 7-1/2 horsepower at 460 VAC with 3-phase input, it supports advanced control modes including SVC, V/Hz, FOC, and torque control. This general-purpose variable frequency drive is built for industrial applications requiring flexible motor control and integrated dynamic braking.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Motor Drives |
| Part Number | GS23-47P5 |
| Subcategory | AC Drives (VFD) |
| Series | DURApulse GS20 |
| Drive Type | General purpose AC drive |
| Nominal Input Voltage | 460 VAC |
| Nominal Output Voltage | 460 VAC |
| Input Phases | 3-phase |
| Output Phases | 3-phase |
| Horsepower Rating | 7-1/2 HP (3-phase input) |
| Amperage Rating | 13A |
| Variable Torque Amperage | 15.7A |
| Control Modes | SVC, V/Hz, FOC, torque |
| Output Type | PWM |
| Output Frequency Range | 0.1–599 Hz |
| Carrier Frequency Range | 2–15 kHz |
| Safe Torque Off (STO) | Yes |
| Dynamic Braking | Integrated |
| Analog Inputs | 2 (current/voltage, 0–20 mA, 4–20 mA, ±10 VDC) |
| Analog Outputs | 1 (0–20 mA, 4–20 mA, 0–10 VDC) |
| Discrete Inputs | 7 points, 24 VDC, sinking/sourcing |
| Discrete Outputs | 3 points (relay/sinking/sourcing) |
| Relay Configuration | (1) Form C (SPDT) |
| Communication Ports | RS-485 (RJ45), USB B |
| Protocols | Modbus RTU Slave, Modbus ASCII Slave |
| IP Rating | IP20 |

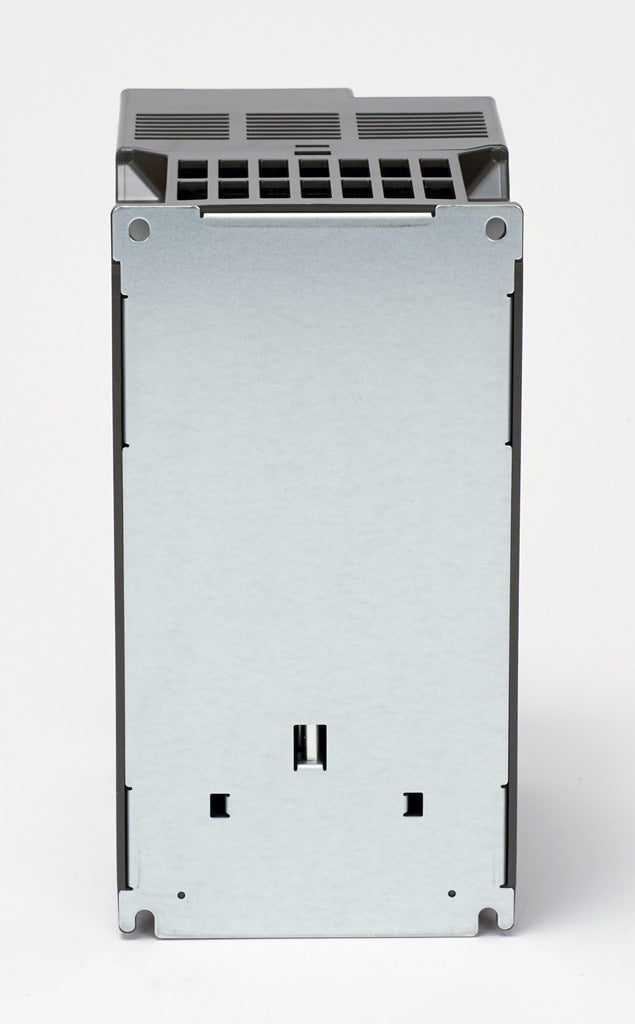

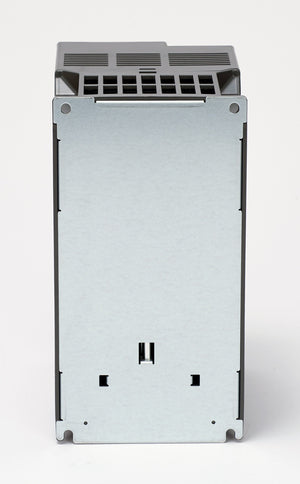

| Mounting | Panel or wall |
| Frame Size | D |
| Operating Temperature | -20 to 50°C |
| For Use With | 3-phase induction and permanent magnet AC motors |
| Weight | Approx. 11 lb |
Information About GS23-47P5

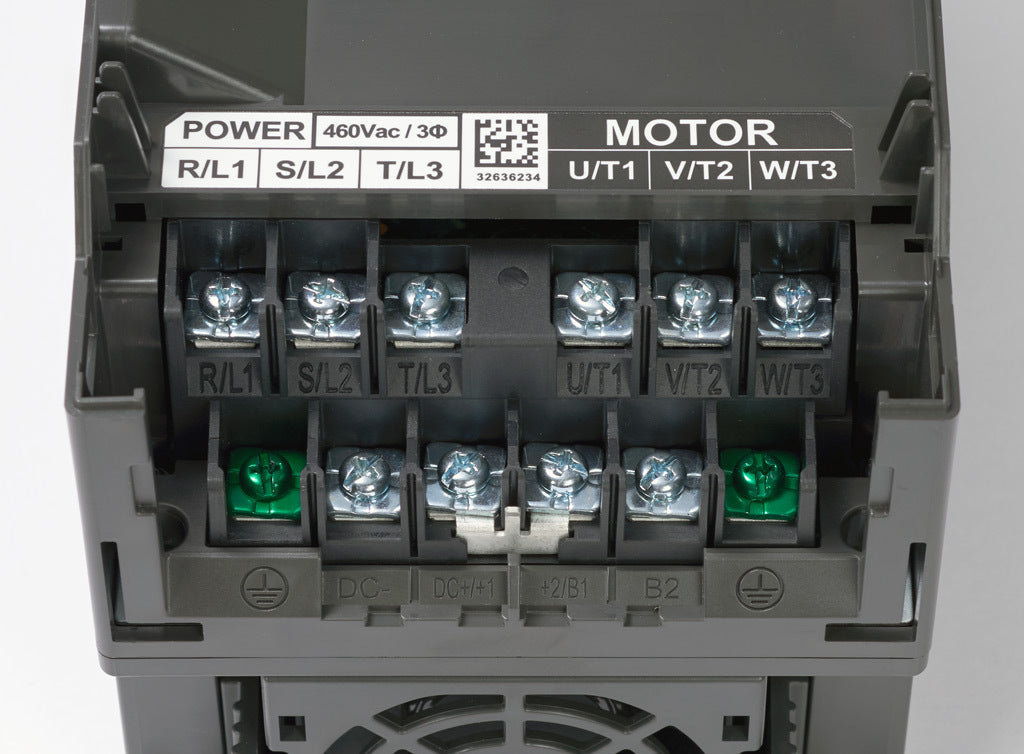

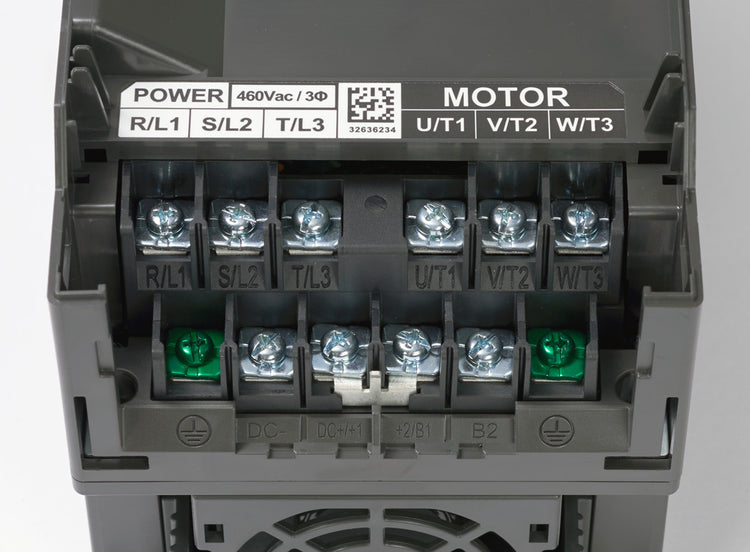

The GS23-47P5 is part of the DURApulse GS20 family of enclosed AC drives engineered for reliable operation in demanding environments. It operates on 460 VAC three-phase input and provides three-phase PWM output for controlling induction and permanent magnet AC motors. The drive features built-in Safe Torque Off (STO), integrated dynamic braking, and multiple programmable I/O options for system integration. Communication is supported through RS-485 and USB ports with Modbus RTU and ASCII protocols, and optional EtherNet/IP or Modbus TCP expansion is available.
Key Features:
- 7-1/2 HP Output Rating: Designed for 460 VAC three-phase motor applications up to 7.5 horsepower.
- Multiple Control Modes: Supports SVC, V/Hz, FOC, and torque control for flexible motor performance tuning.
- Integrated Dynamic Braking: Built-in braking capability for improved deceleration control.
- Safe Torque Off (STO): Provides safety functionality for controlled motor shutdown.
- Extensive I/O Configuration: Includes analog, discrete, and relay outputs for system control integration.
- Wide Frequency Range: Adjustable output frequency from 0.1 to 599 Hz with carrier frequency range of 2–15 kHz.
- RS-485 and USB Connectivity: Supports Modbus RTU/ASCII communication up to 115.2k baud.
- Panel or Wall Mount Design: Enclosed IP20 unit suitable for industrial installations.
The GS23-47P5 delivers the reliability and precision required for industrial motor speed control and variable frequency drive applications.
