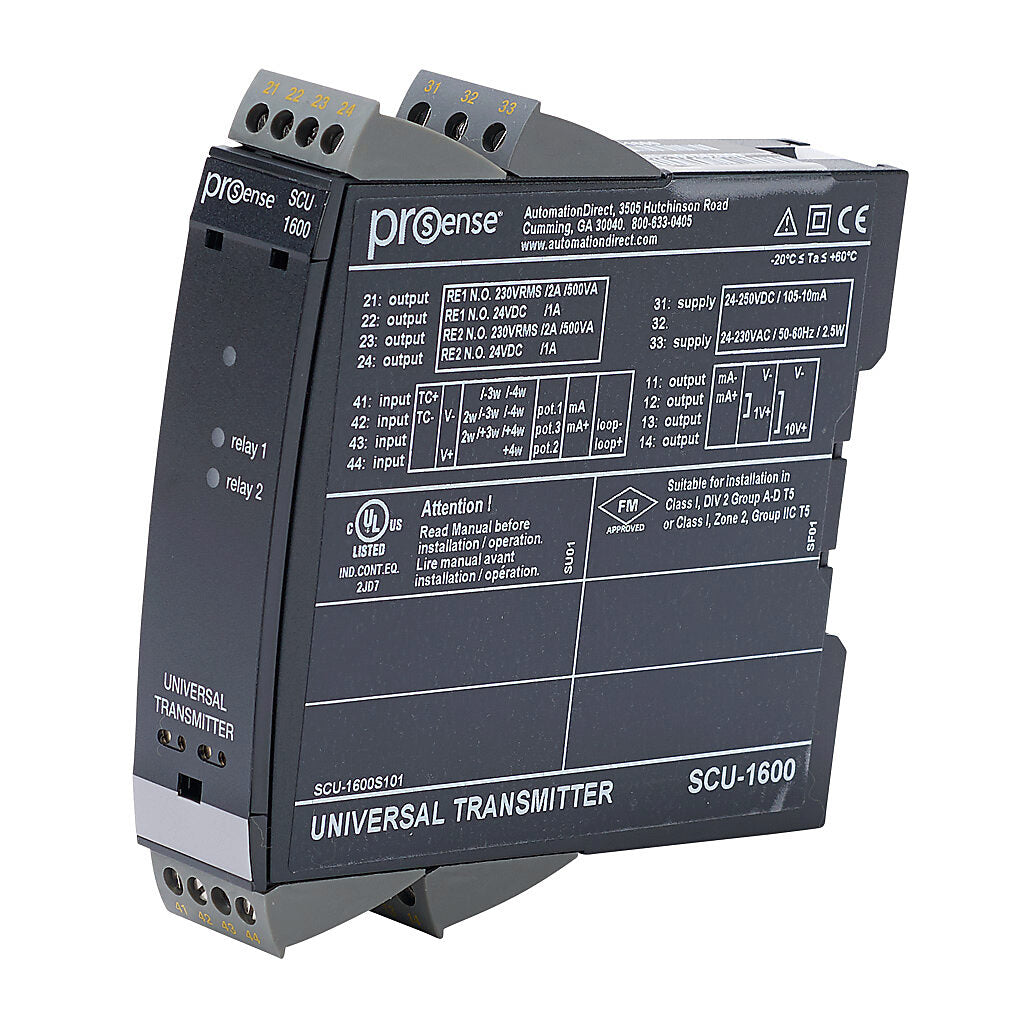

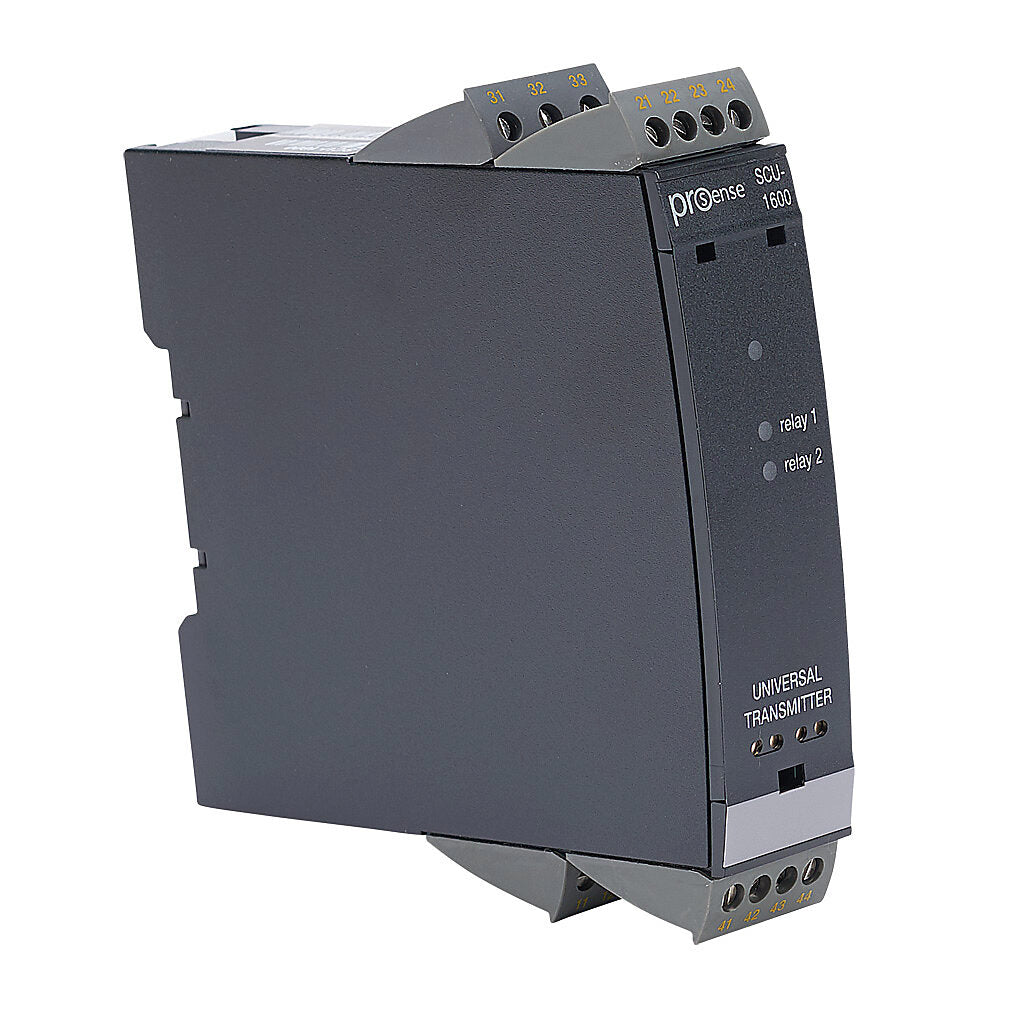

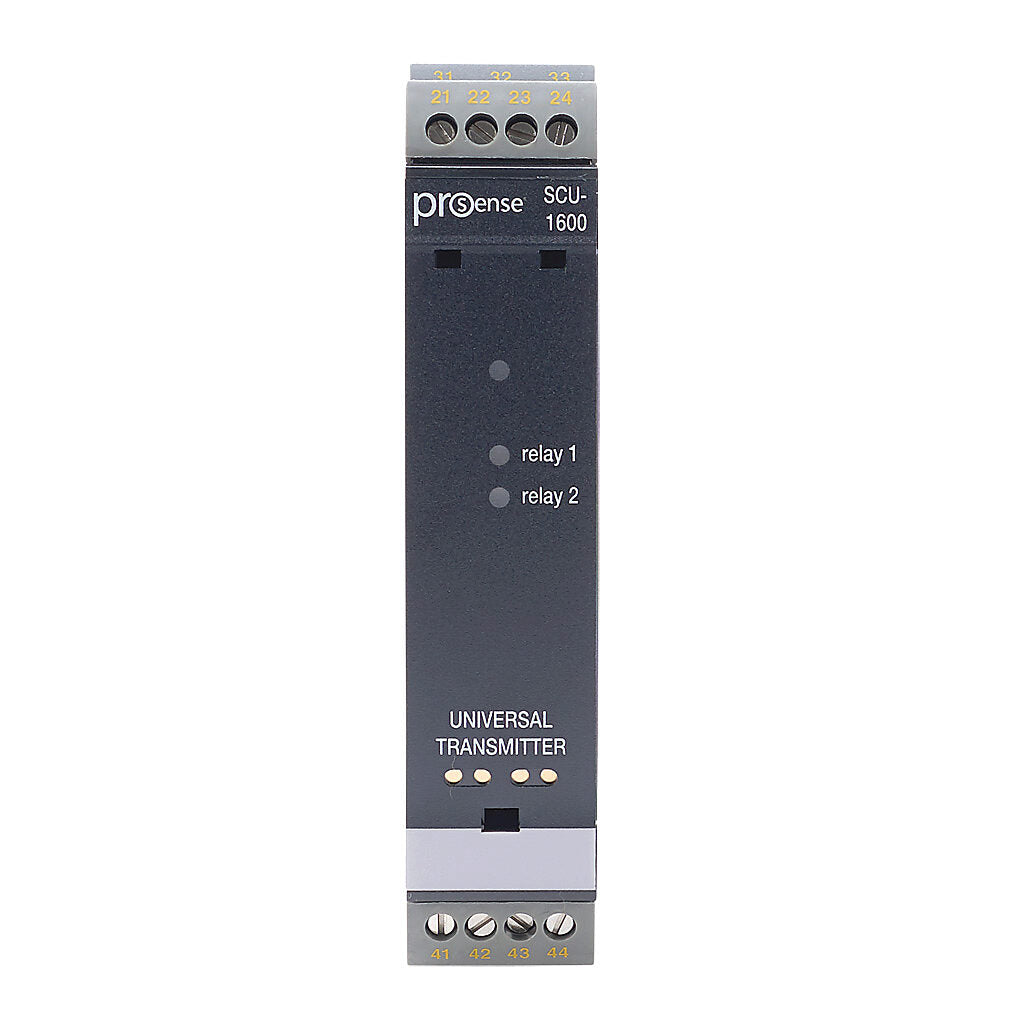

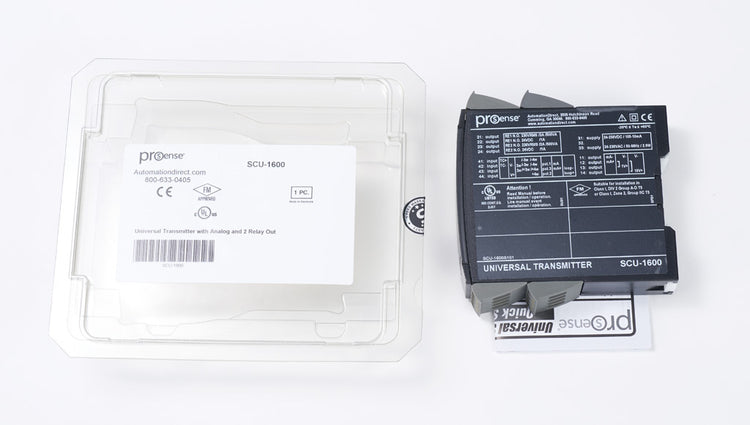

SCU-1600 | Automation Direct ProSense Isolated Universal Signal Conditioner
- Regular price
- $497.00
- Sale price
- $497.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SCU-1600
Description
The Automation Direct SCU-1600 is a ProSense isolated signal conditioner designed for flexible conversion and monitoring of analog and temperature signals. It supports a wide range of input types including current, voltage, RTD, thermocouple, and potentiometer signals, with three configurable outputs. Built for industrial and hazardous location applications, this DIN rail-mounted unit provides reliable signal isolation and conditioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Process Control |
| Part Number | SCU-1600 |
| Subcategory | Signal Conditioners |
| Series | ProSense SCU |
| Isolation | Isolated |
| Number of Input Channels | 1 |
| Input Types | Current, voltage, RTD, thermocouple, potentiometer |
| Input Current Range | 0–20 mA, 4–20 mA |
| Input Voltage Range | 0–1, 0.2–1, 0–5, 1–5, 0–10, 2–10 VDC |
| RTD Types | Pt, Ni, Cu types (Pt10–Pt1000, Ni50–Ni1000, Cu10–Cu100) |
| Thermocouple Types | J, K, N, T, E, R, S, B, L, U, W3, W5, LR |
| Number of Output Channels | 3 |
| Output Types | Current, voltage, (2) Form A (SPST) relays |
| Relay Load Rating | 230 VAC 2A / 24 VDC 1A max |
| Operating Voltage | 21.6–253 VAC / 19.2–300 VDC |
| Mounting | 35 mm DIN rail |
| Housing Material | Plastic |

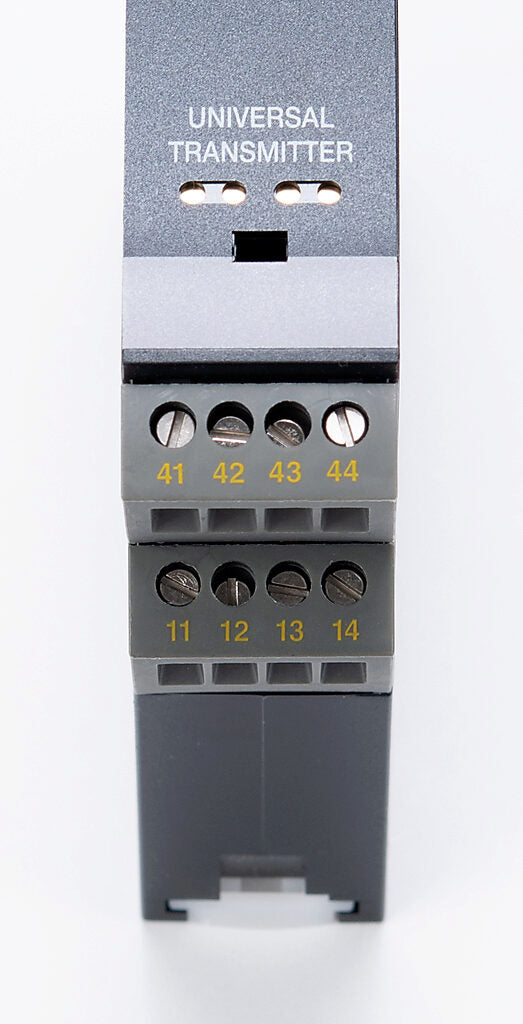

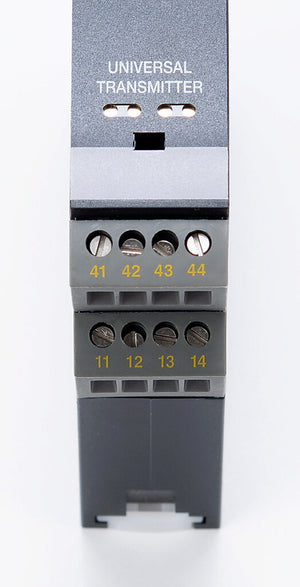

| Electrical Connection | Removable screw terminal plugs |
| Programming Requirement | SCU-PDM2 module required |
| Application | Hazardous location rated signal conditioning |
| Weight | 0.5 lb |
Information About SCU-1600
The SCU-1600 is part of the ProSense SCU series of field-configurable signal conditioners engineered for industrial process control environments. It features one universal input channel capable of handling multiple analog and temperature signal types, along with three independently configurable outputs. The unit provides electrical isolation to protect control systems from ground loops and signal interference. Designed for 35 mm DIN rail mounting, it operates on a wide AC/DC power range and requires the SCU-PDM2 programming module (sold separately) for configuration.
Key Features:
- Universal Input Channel: Accepts current, voltage, RTD, thermocouple, and potentiometer signals.
- Wide RTD and Thermocouple Support: Compatible with multiple Pt, Ni, Cu RTDs and common thermocouple types.
- Three Configurable Outputs: Supports current, voltage, and dual SPST relay outputs.
- Signal Isolation: Electrically isolated design reduces noise and protects control equipment.
- Wide Power Range: Operates from 21.6–253 VAC or 19.2–300 VDC.
- Hazardous Location Rated: Suitable for use in classified industrial environments.
- DIN Rail Mounting: Compact plastic housing for 35 mm DIN rail installation.
- Field Programmable: Configured using SCU-PDM2 programming module (sold separately).
The SCU-1600 delivers the reliability and precision required for industrial signal conditioning and isolated process monitoring applications.
