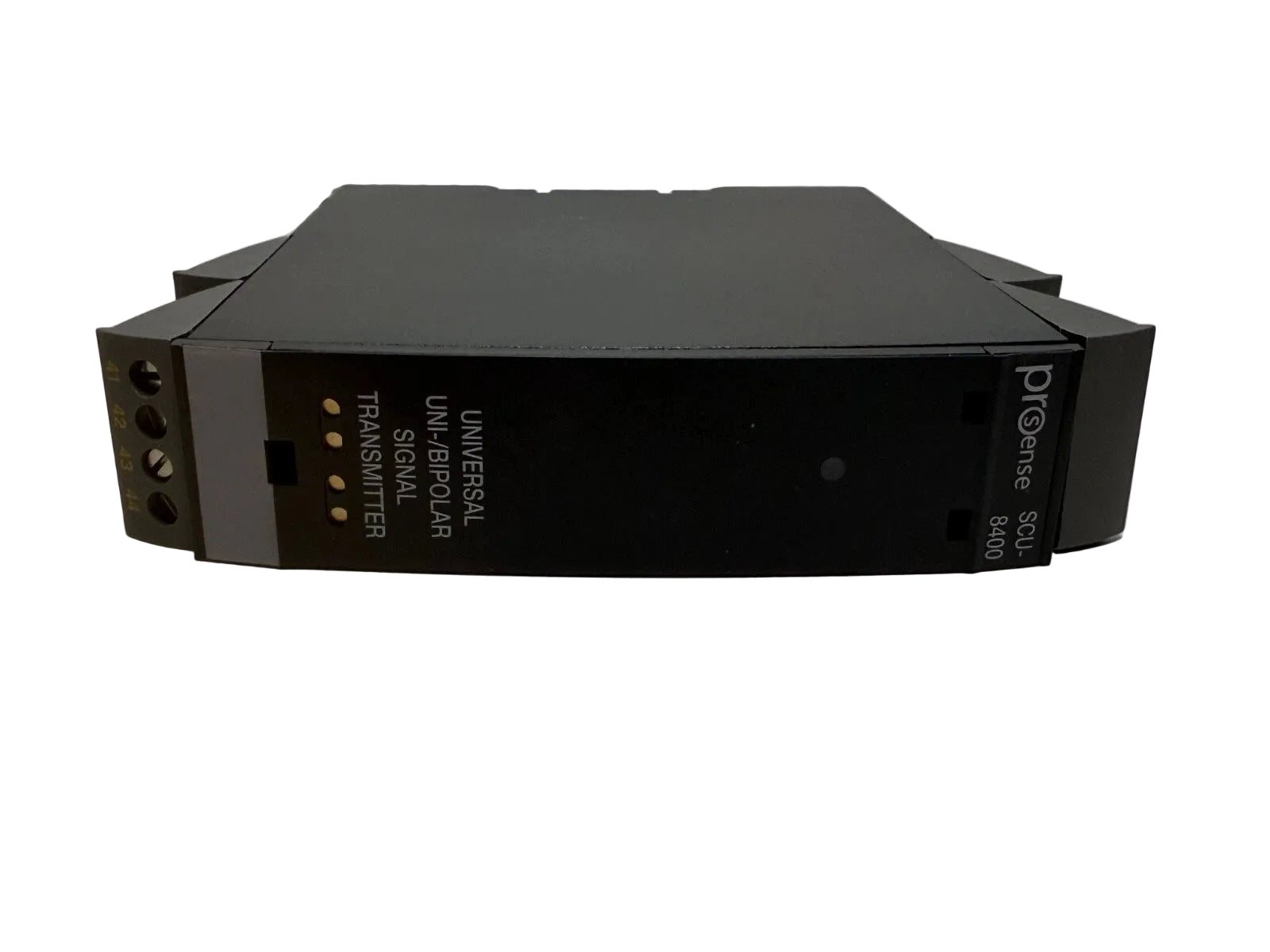

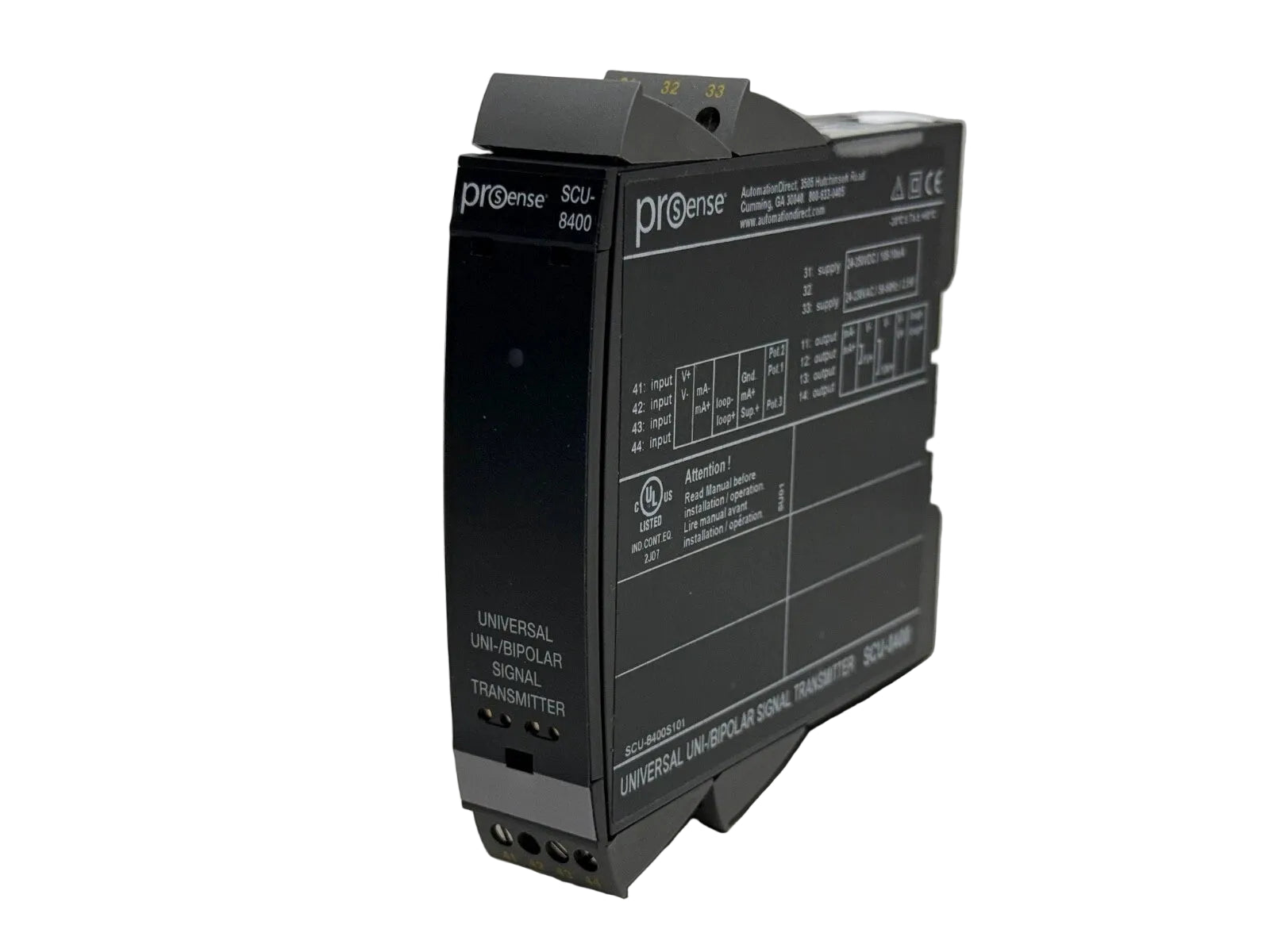

SCU-8400 | Automation Direct ProSense Isolated Signal Conditioner DIN Rail
- Regular price
- $459.00
- Sale price
- $459.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SCU-8400
Description
The Automation Direct SCU-8400 is an isolated signal conditioner designed for industrial signal conversion and isolation. It accepts a wide range of current, voltage, or potentiometer input signals and converts them into configurable analog output signals. The unit supports flexible installation on a 35 mm DIN rail and operates across a wide AC or DC supply voltage range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Controls & Indicators |

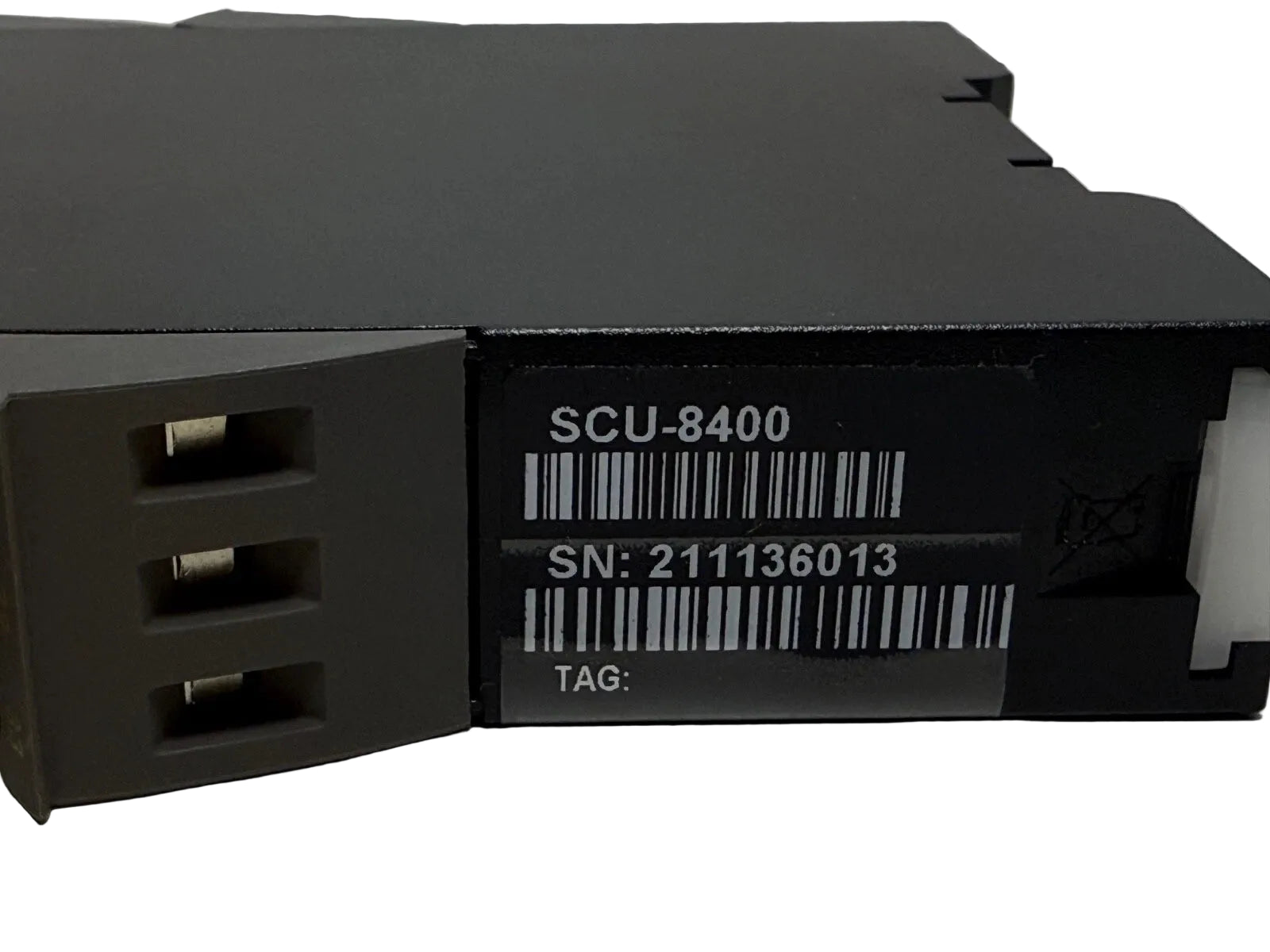

| Part Number | SCU-8400 |
| Subcategory | Signal Conditioner/Transmitter |
| Product Type | Signal Conditioner |
| Series | ProSense |
| Isolation | Isolated Input/Output |
| Number of Input Channels | 1 |
| Input Types | Current, Voltage, Potentiometer |
| Input Signal Range | Multiple Configurable Current and Voltage Ranges |
| Number of Output Channels | 1 |
| Output Types | Current or Voltage |
| Output Signal Range | Configurable Current and Voltage Ranges |
| Operating Voltage | 21.6–253 VAC / 19.2–300 VDC |
| Mounting Type | 35 mm DIN Rail |
| Electrical Connection | Removable Screw Terminal Plugs |
| Programming Requirement | SCU-PDM2 Programming Module (Sold Separately) |
| Housing Material | Plastic |
| Weight | 0.01 lbs |
Information About SCU-8400
The SCU-8400 is part of the ProSense signal conditioning product line developed by Automation Direct for industrial measurement and control applications. It features a single input channel capable of accepting unipolar or bipolar current, voltage, or potentiometer signals. The device converts the incoming signal into configurable analog current or voltage outputs while maintaining electrical isolation to protect connected equipment. Designed for flexible system integration, the module supports field configuration and connects through removable screw terminal plugs for simplified wiring.
Key Features:
-
Isolated Signal Conditioning: Provides electrical isolation between input and output circuits.
-
Single Channel Input and Output: Supports one analog input and one analog output channel.
-
Multi-Signal Input Support: Accepts current, voltage, and potentiometer signals.
-
Configurable Output Signals: Generates unipolar or bipolar current or voltage outputs.
-
Wide Operating Voltage Range: Operates from 21.6–253 VAC or 19.2–300 VDC supply.
-

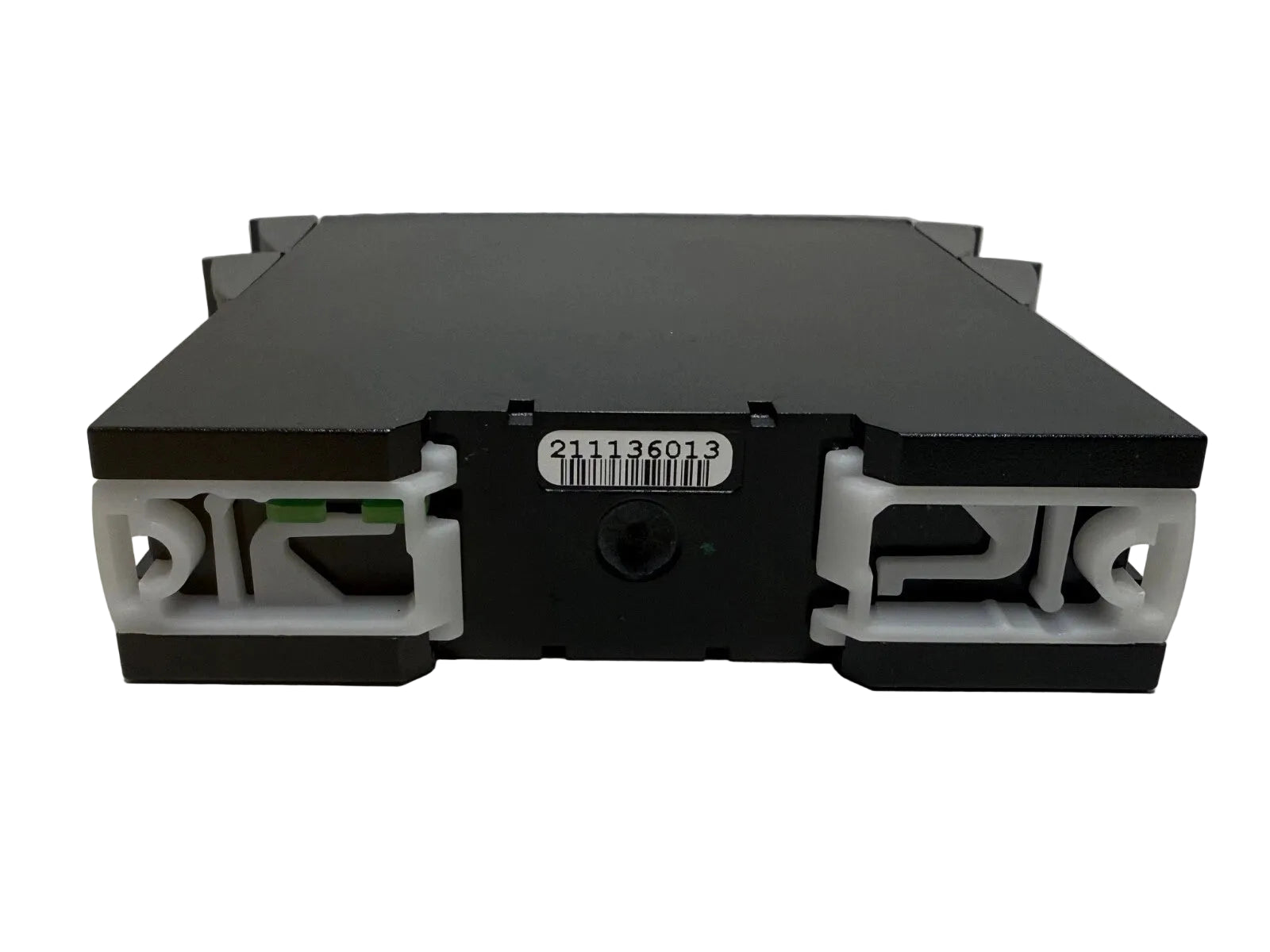

DIN Rail Mounting: Designed for installation on standard 35 mm DIN rails.
-
Field Configurable Operation: Adjustable signal parameters for different applications.
-

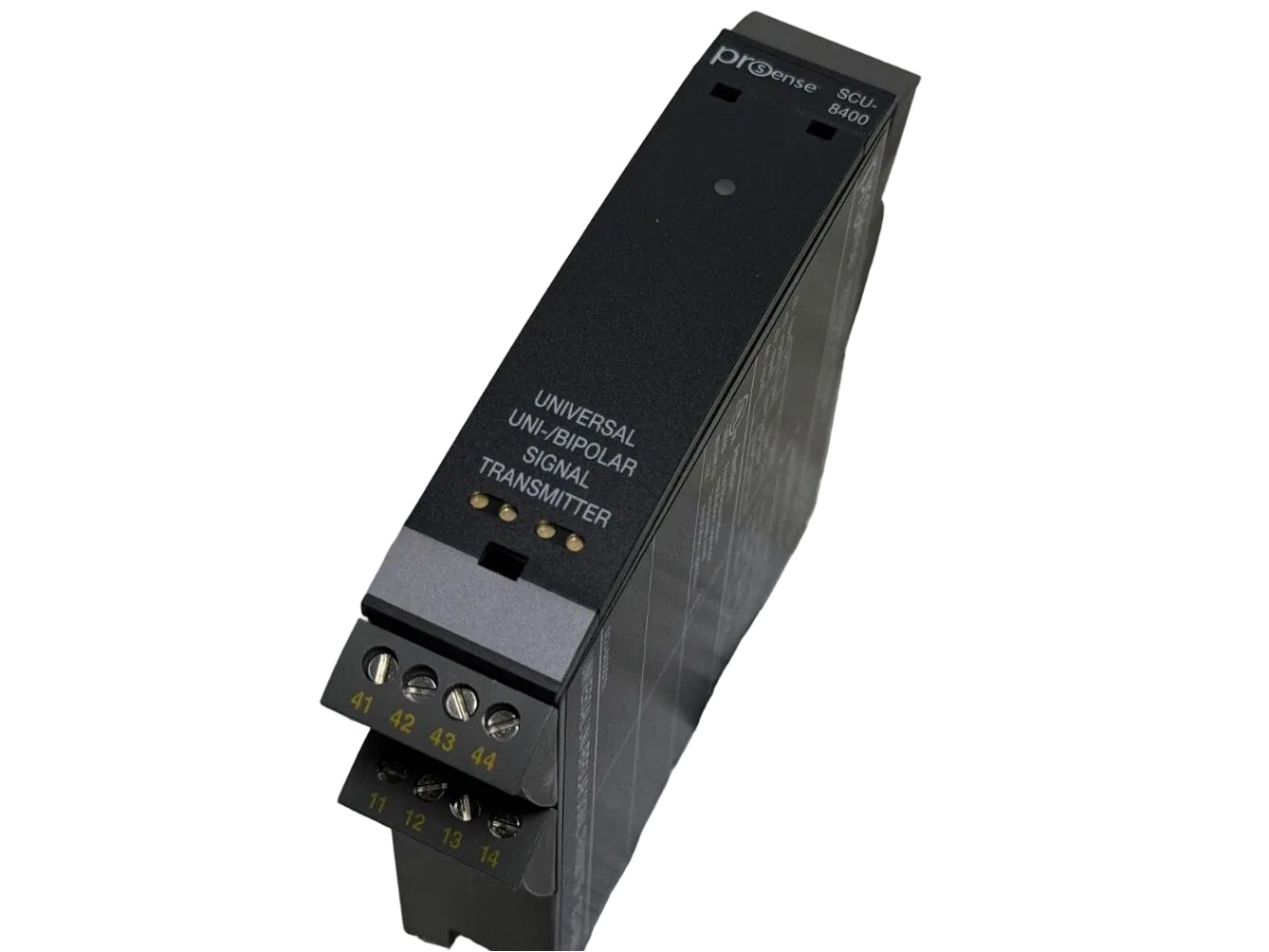

Removable Screw Terminal Connections: Simplifies installation and maintenance.
The SCU-8400 delivers the reliability and precision required for industrial signal conditioning and analog signal conversion applications.
