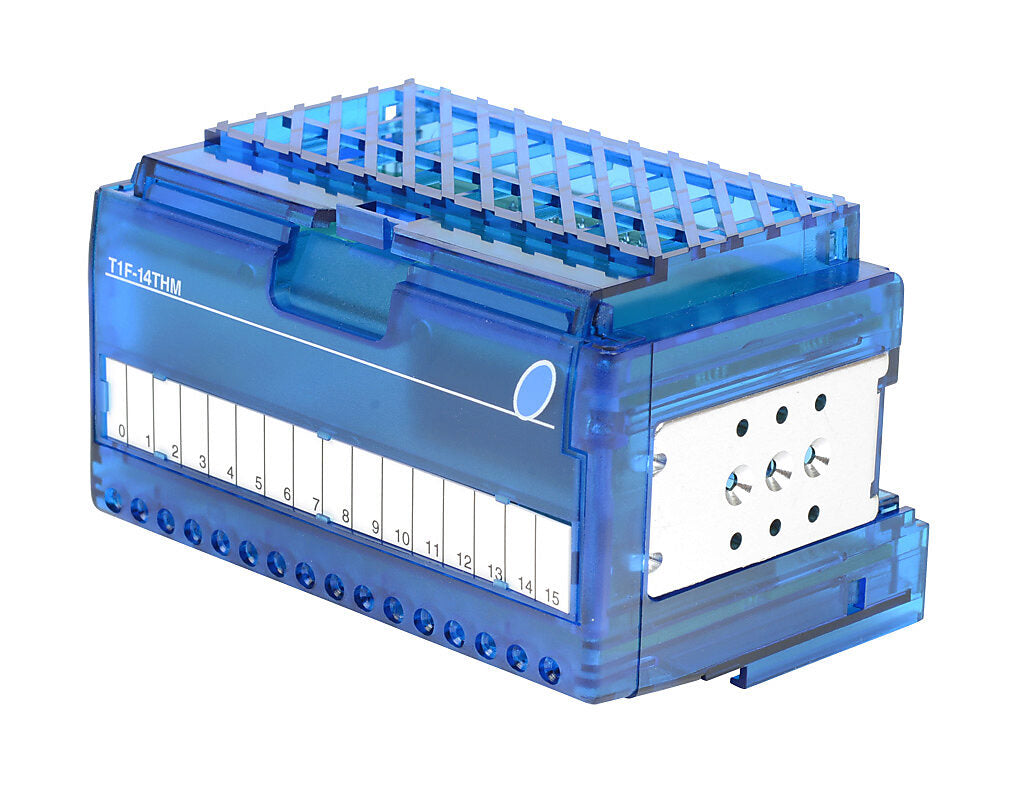

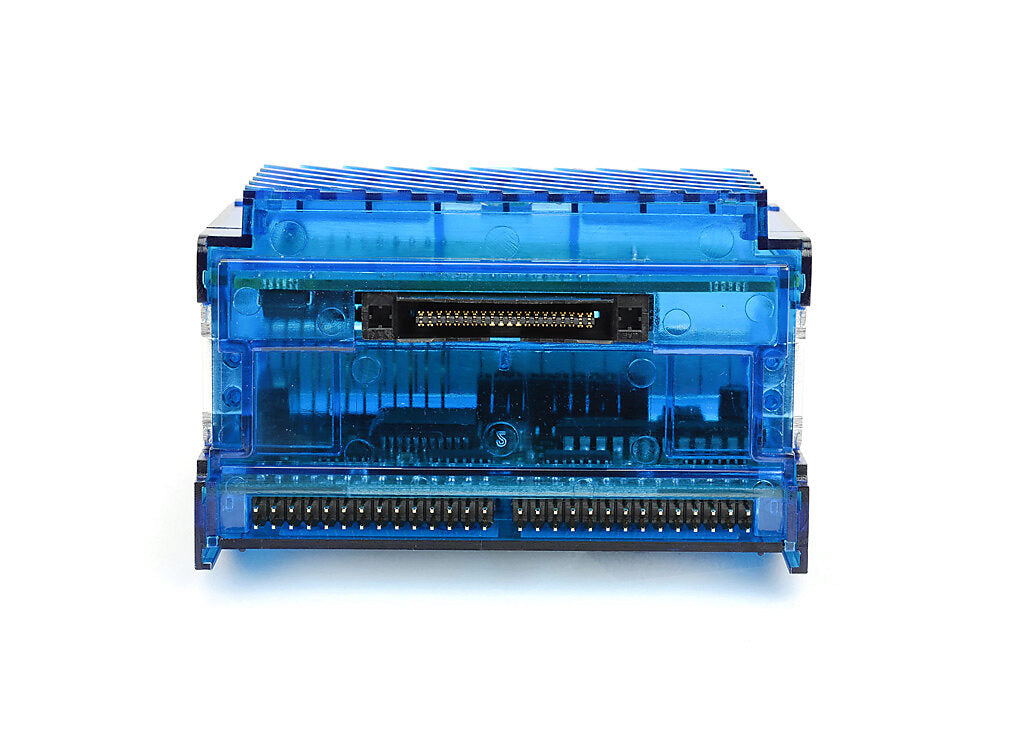

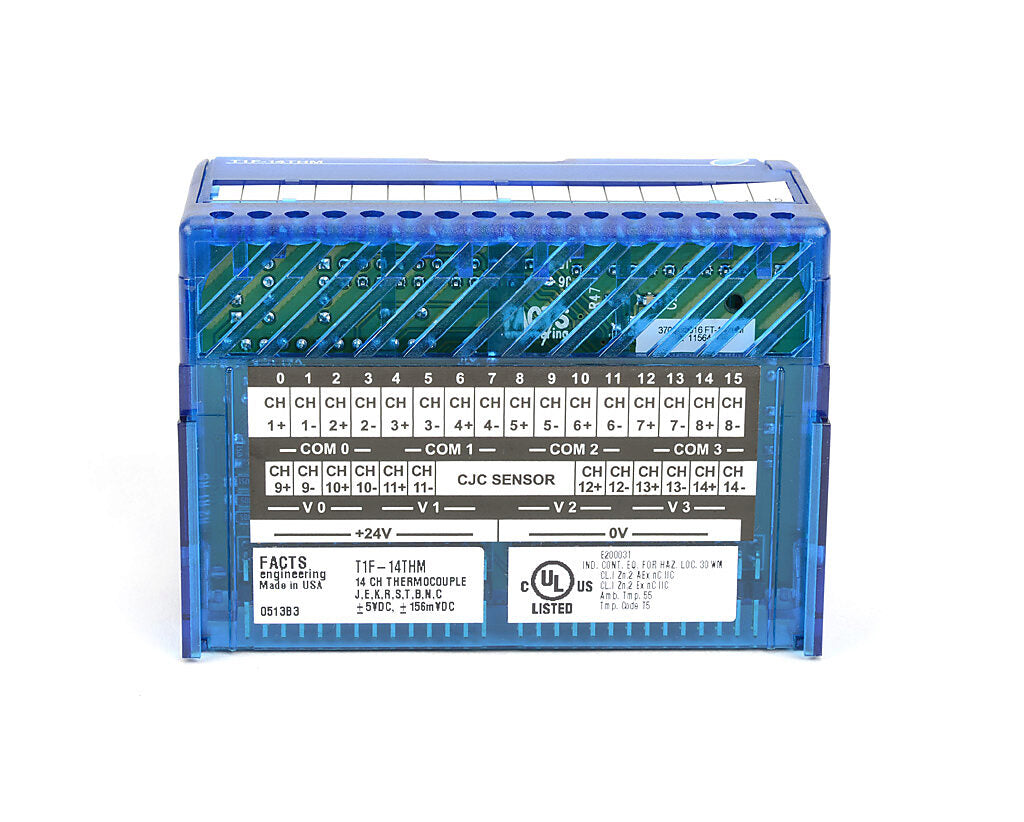

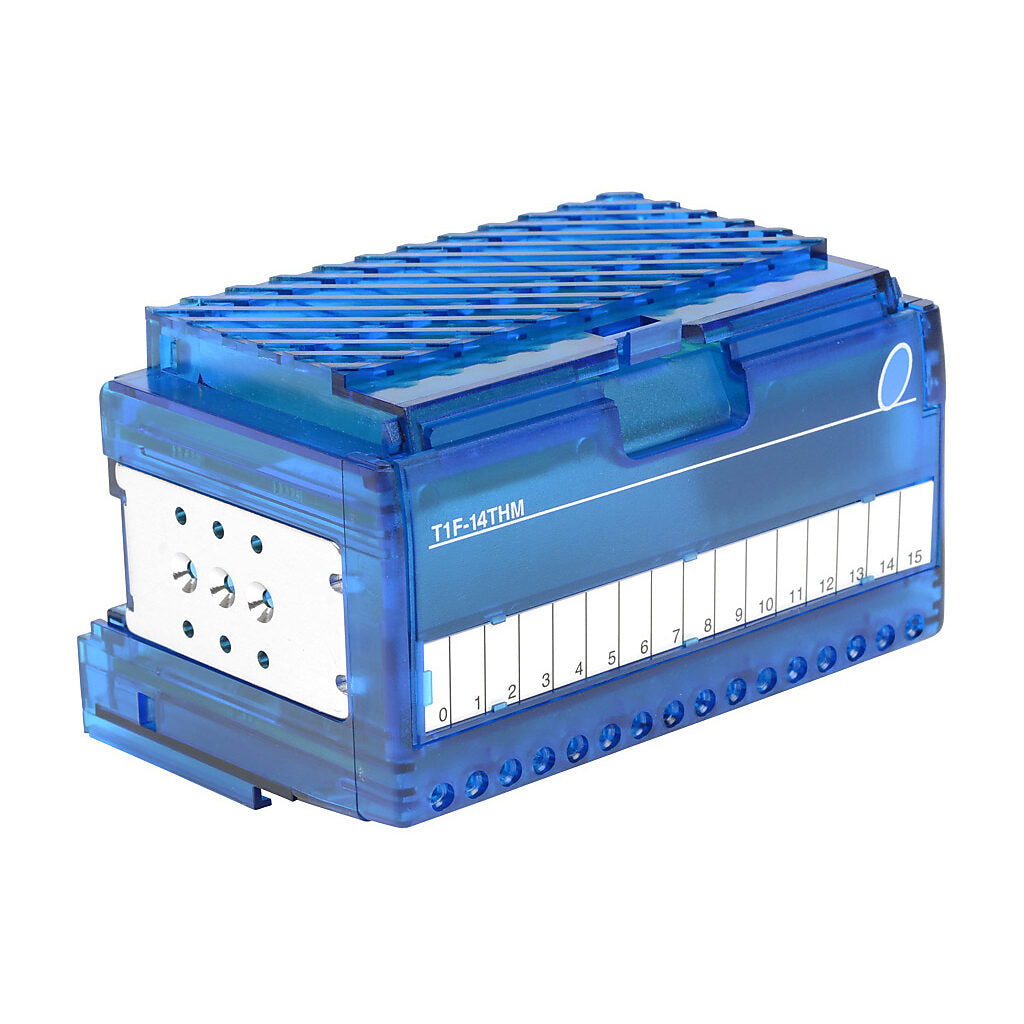

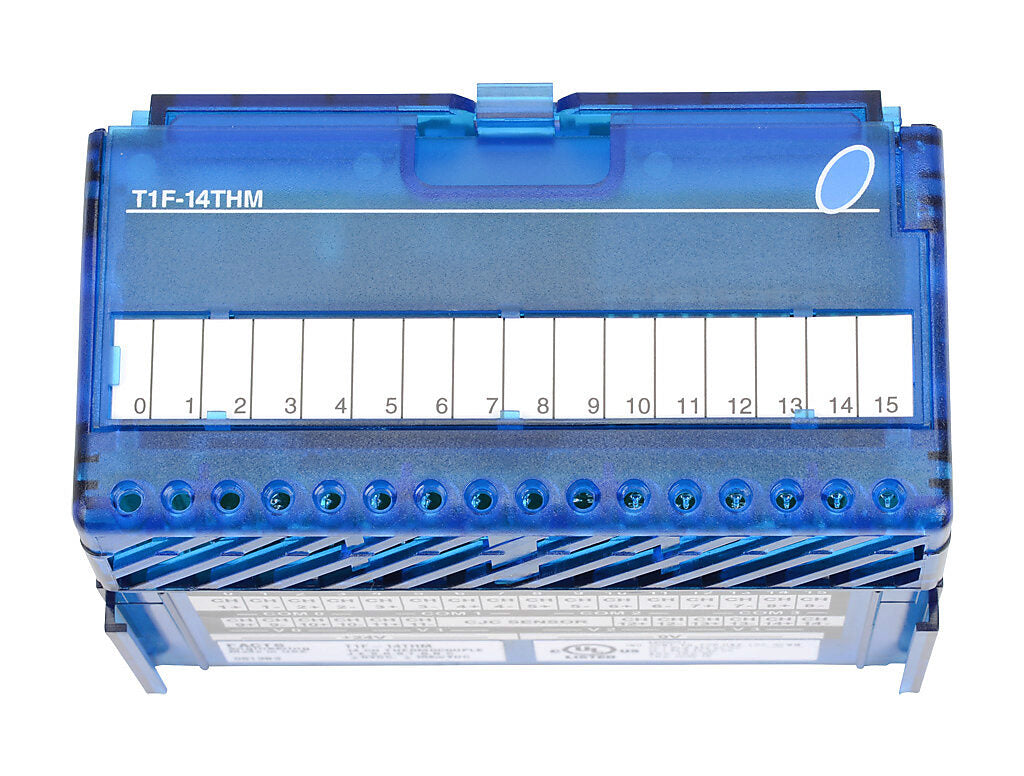

Automation Direct T1F-14THM Terminator 14-Channel Thermocouple Input Module 16-Bit
- Regular price
- $1,377.00
- Sale price
- $1,377.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T1F-14THM
Description
The Automation Direct T1F-14THM Terminator temperature input module is a 14-channel thermocouple input module designed for precise temperature measurement in industrial automation systems. It features 16-bit resolution for accurate signal conversion and supports multiple thermocouple types including J, K, and T. This module is ideal for process monitoring applications requiring reliable multi-point temperature input.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct Terminator |
| Category | Industrial Automation |
| Part Number | T1F-14THM |
| Subcategory | Temperature Input Modules |
| Module Type | Temperature Input |
| Input Signal Type | Thermocouple |
| Number of Channels | 14 |
| Supported Thermocouple Types | J, E, K, R, S, T, B, N, C |
| Input Voltage Range | 0–5 VDC, ±5 VDC, 0–156 mVDC, ±156 mVDC |
| Input Resolution | 16-bit |
| Channel Isolation | Non-isolated |
| External Power Requirement | 24 VDC |
| Compatible Terminal Bases | T1K-16B, T1K-16B-1 |
| Programming Software | Do-more Designer v1.2 or later |
| Series | Terminator |
| Weight | 0.8 lb (approx.) |
Information About T1F-14THM
The T1F-14THM is part of the Terminator series, developed for distributed I/O systems requiring flexible and scalable analog input capabilities. It is designed to accept thermocouple signals across a wide range of types, making it suitable for diverse temperature sensing applications. The module operates with non-isolated channels and requires an external 24 VDC power supply, along with a compatible T1K-16B or T1K-16B-1 terminal base for installation. Integration with Do-more Designer software enables configuration, monitoring, and control within automation environments.
Key Features:
- 14 Temperature Input Channels: Supports multiple thermocouple inputs for comprehensive monitoring
- Wide Thermocouple Compatibility: Accepts J, E, K, R, S, T, B, N, and C types
- High Resolution Measurement: Provides 16-bit resolution for precise temperature readings
- Flexible Input Signal Range: Supports voltage ranges including 0–5 VDC, ±5 VDC, and ±156 mVDC
- Terminator Series Integration: Designed for use within modular Terminator I/O systems
- External Power Requirement: Operates with a 24 VDC external supply
- Software Compatibility: Configurable using Do-more Designer programming software
- Terminal Base Requirement: Requires T1K-16B or T1K-16B-1 for proper installation
The T1F-14THM delivers the reliability and precision required for accurate temperature monitoring and process control in industrial automation systems.
