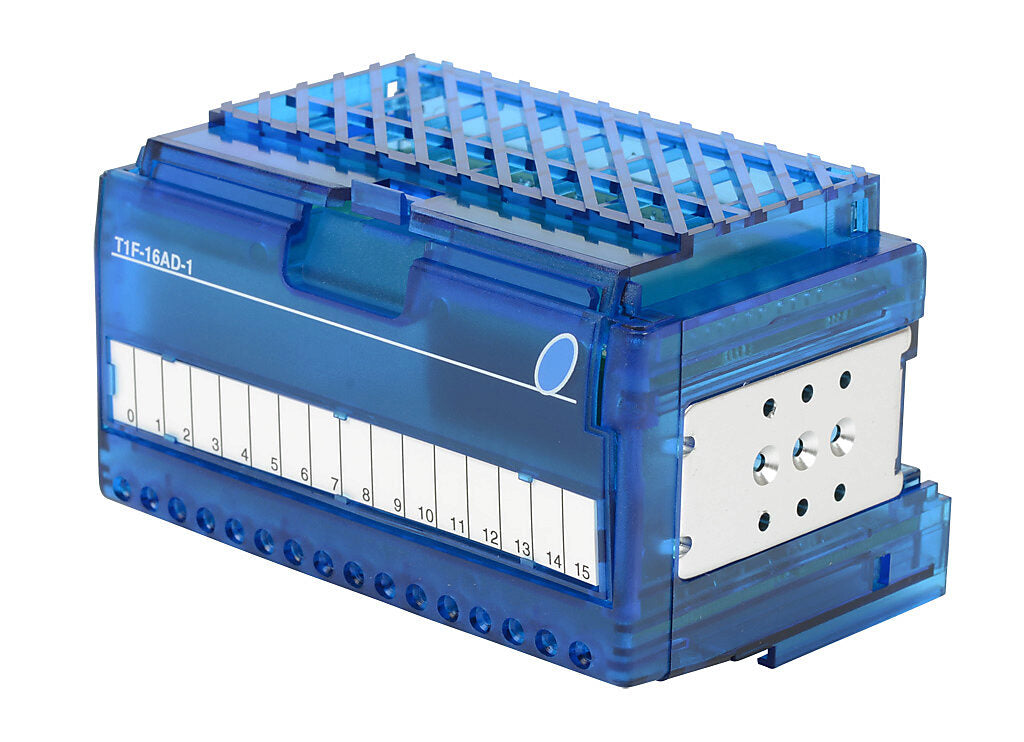

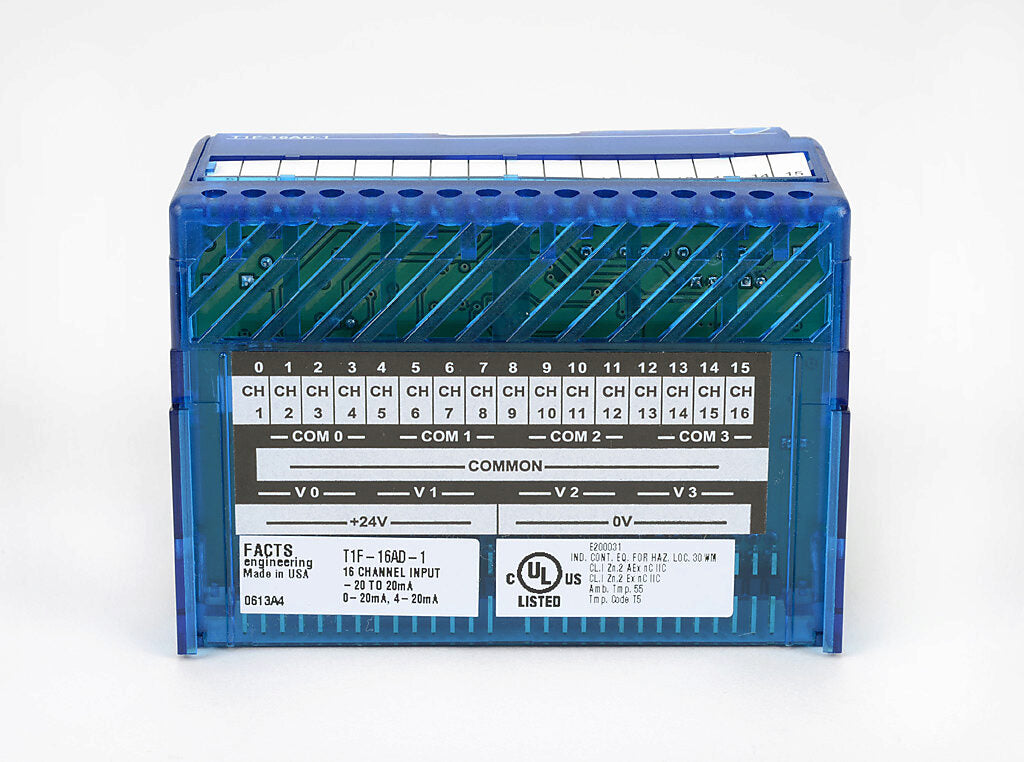

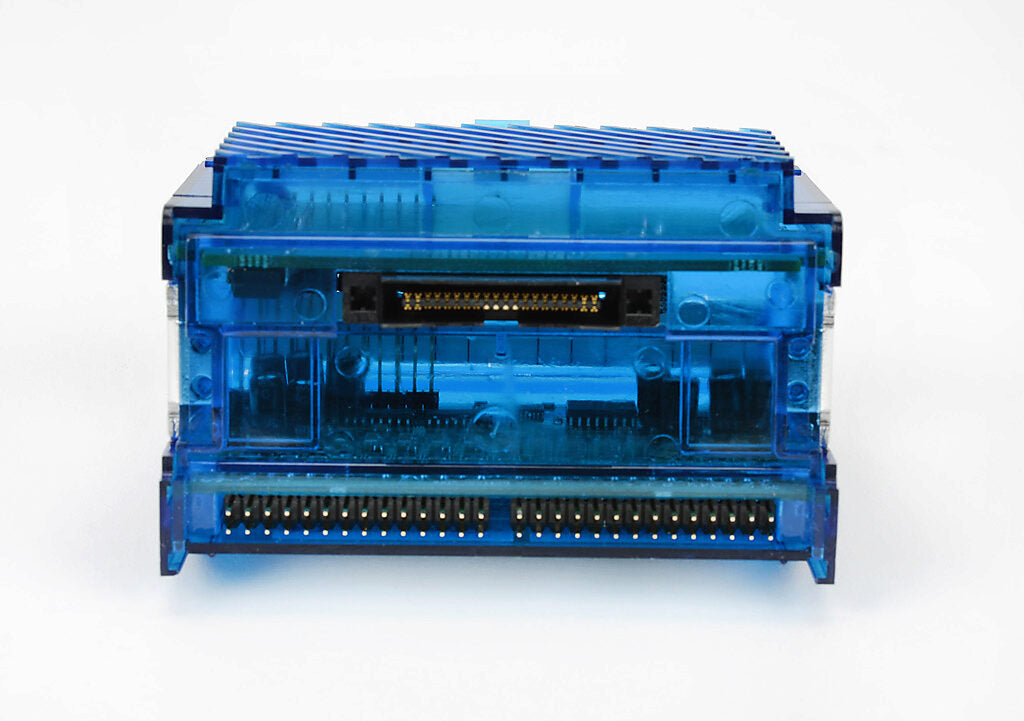

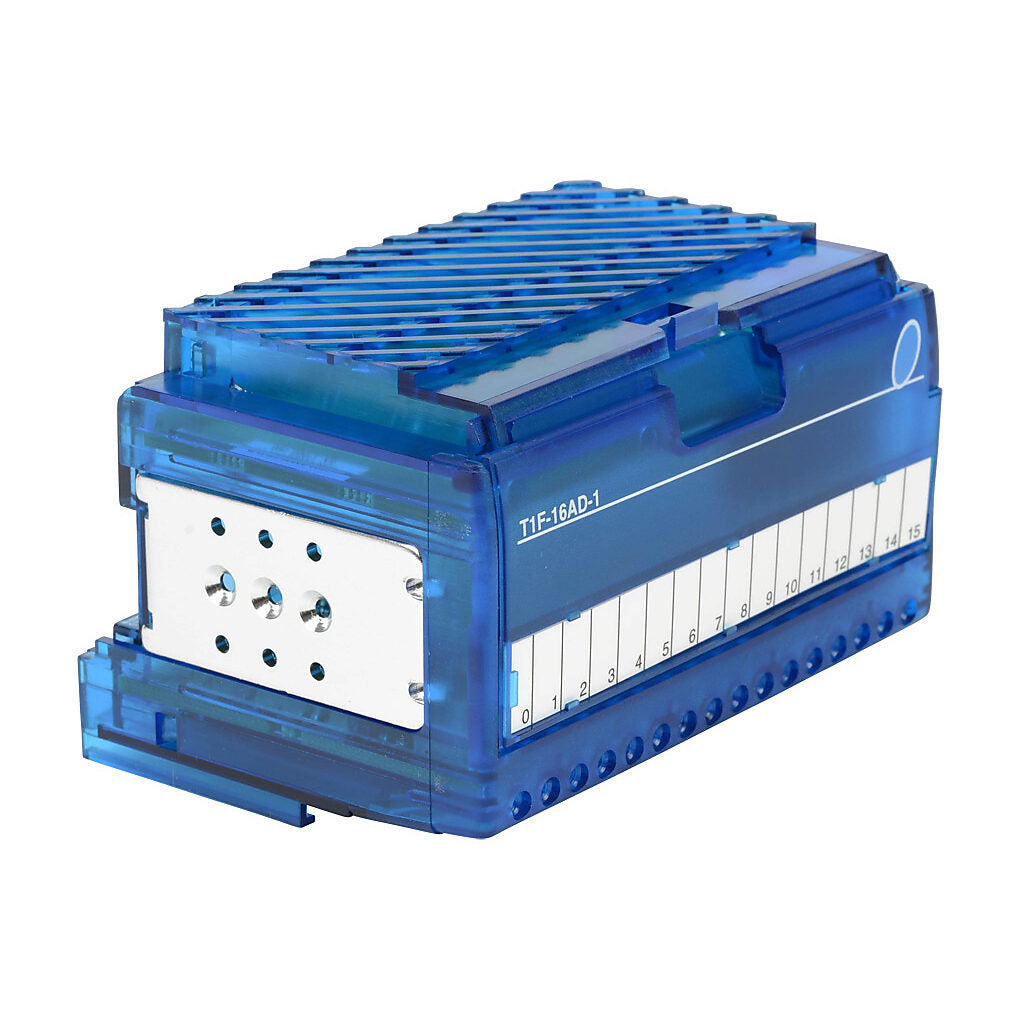

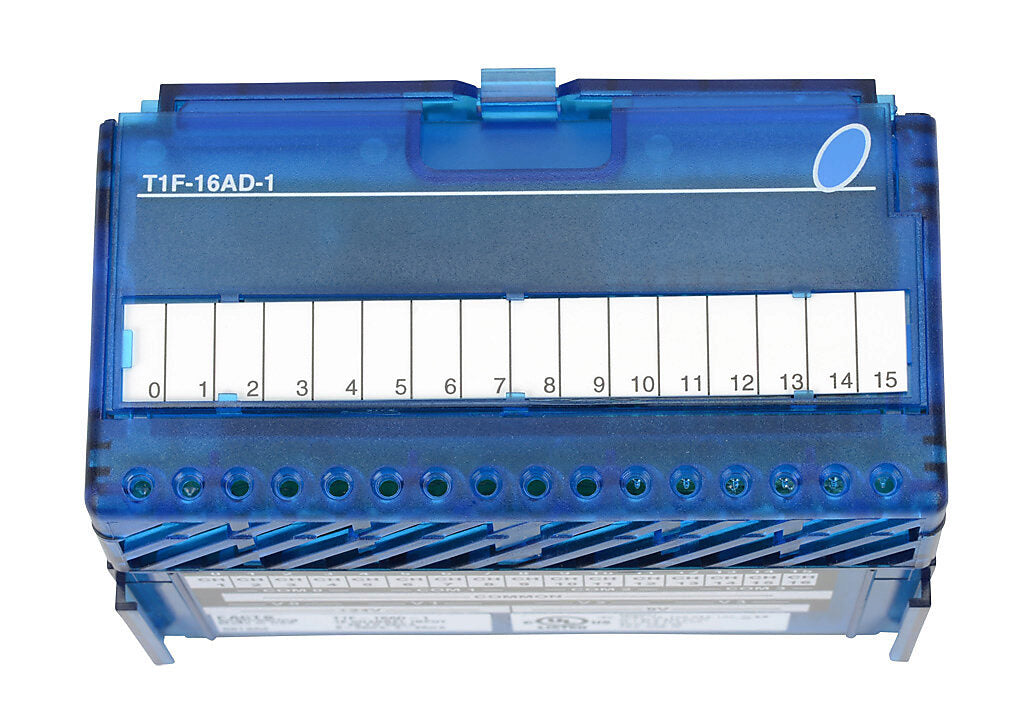

Automation Direct T1F-16AD-1 Terminator 16-Channel Analog Input Module 4-20mA 14-Bit
- Regular price
- $1,224.00
- Sale price
- $1,224.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T1F-16AD-1
Description
The Automation Direct T1F-16AD-1 Terminator analog input module is a 16-channel current input module designed for precise signal acquisition in industrial automation systems. It features 14-bit resolution and supports multiple current ranges including 0–20 mA and 4–20 mA. This module is suited for applications requiring accurate monitoring of analog process signals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct Terminator |
| Category | Industrial Automation |
| Part Number | T1F-16AD-1 |
| Subcategory | Analog Input Modules |
| Module Type | Analog Input |
| Number of Channels | 16 |
| Input Signal Type | Current |
| Input Range | 0–20 mA, 4–20 mA, ±20 mA |
| Input Resolution | 14-bit |
| Input Type | Sinking |
| Input Commons | 1 non-isolated common |
| External Power Requirement | 24 VDC |
| Compatible Terminal Bases | T1K-16B, T1K-16B-1 |
| Programming Software | Do-more Designer v1.2 or later |
| Series | Terminator |
| Weight | 0.8 lb (approx.) |
Information About T1F-16AD-1
The T1F-16AD-1 is part of the Terminator series, developed for flexible and distributed I/O system architectures in industrial environments. It is designed to handle multiple current input signals using a sinking configuration, making it compatible with a wide range of field devices. The module requires an external 24 VDC power supply and must be installed on a T1K-16B or T1K-16B-1 terminal base for proper operation. Integration with Do-more Designer software allows for efficient configuration and monitoring within automated control systems.
Key Features:
- 16 Analog Input Channels: Supports high-density signal acquisition for multiple devices
- Current Input Capability: Accepts 0–20 mA, 4–20 mA, and ±20 mA signals
- 14-Bit Resolution: Provides accurate and stable analog input measurements
- Sinking Input Type: Suitable for common industrial wiring configurations
- External Power Supply: Requires 24 VDC for reliable module operation
- Terminator Series Compatibility: Designed for use in modular distributed I/O systems
- Software Integration: Compatible with Do-more Designer for configuration and diagnostics
- Terminal Base Requirement: Requires T1K-16B or T1K-16B-1 for installation
The T1F-16AD-1 delivers the reliability and precision required for analog signal monitoring and process control applications.
