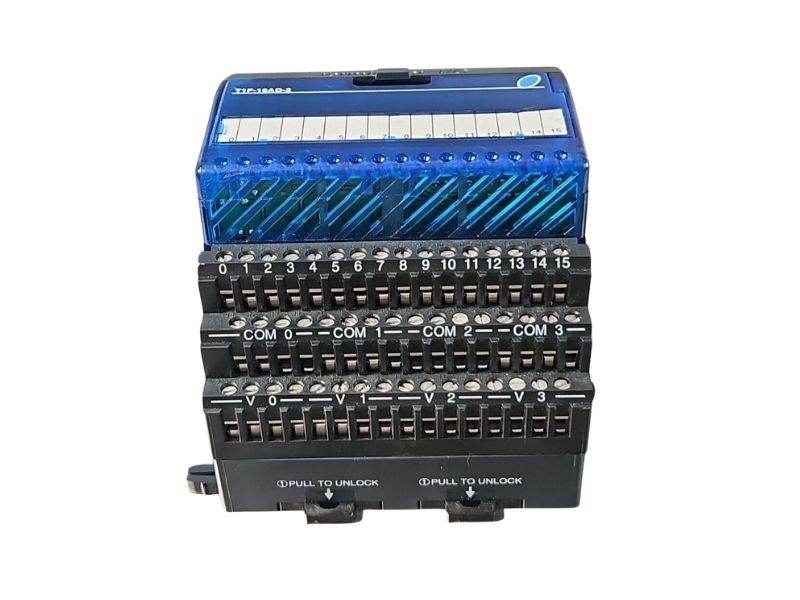

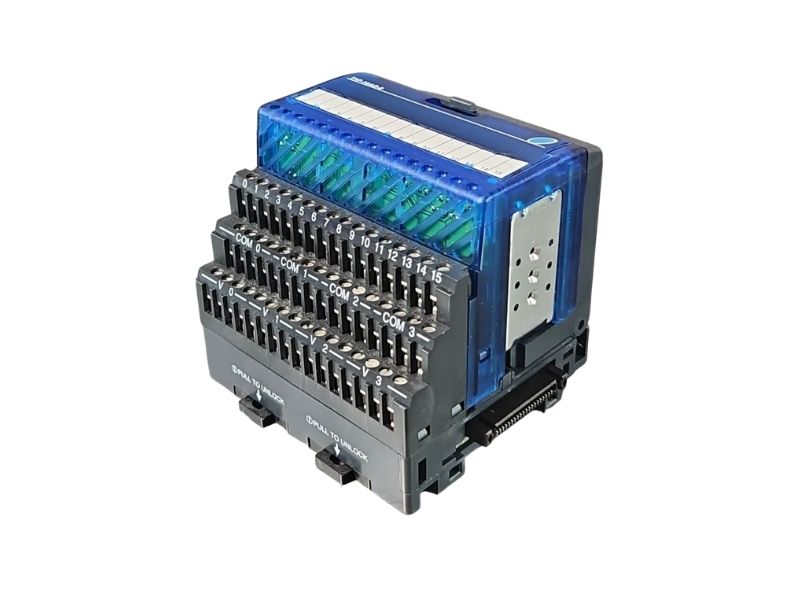

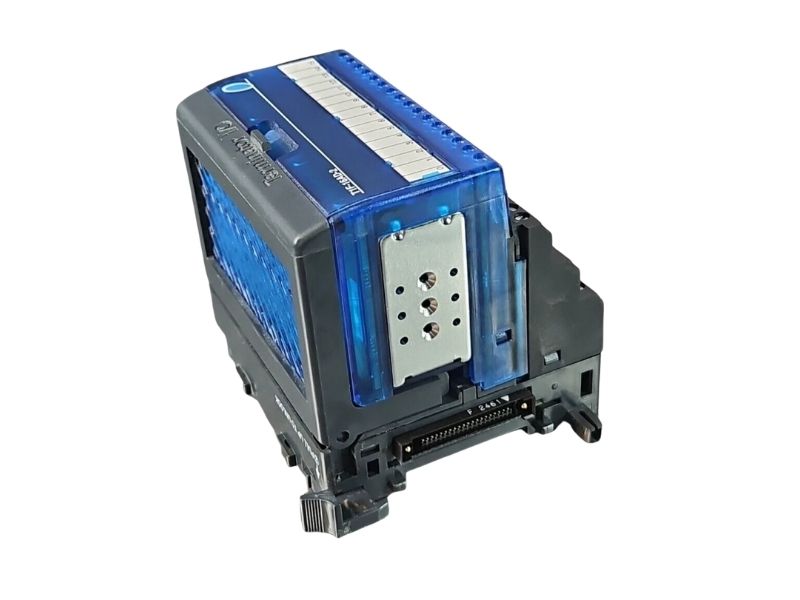

T1F-16AD-2 | Automation Direct Terminator I/O 16-Channel Analog Voltage Input Module
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T1F-16AD-2
Description
The Automation Direct T1F-16AD-2 is a 16-channel analog input module designed for the Terminator I/O automation platform. It accepts multiple voltage signal ranges and converts them into digital data for PLC processing. With 14-bit resolution, the module enables accurate monitoring of analog voltage signals in industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | T1F-16AD-2 |
| Subcategory | PLC Module/Rack |
| Series | Terminator I/O |
| Module Type | Analog Input Module |
| Number of Input Channels | 16 |
| Input Signal Type | Voltage |
| Supported Voltage Ranges | 0–5 VDC, ±5 VDC, ±10 VDC, 0–10 VDC |
| Input Resolution | 14-bit |
| Isolation | Non-Isolated |
| Input Commons | 1 Non-Isolated Common |
| External Power Requirement | 24 VDC |
| Terminal Base Requirement | T1K-16B or T1K-16B-1 |
| Programming Software | Do-more Designer v1.2 or Later |
| Weight | 0.60 lbs |
Information About T1F-16AD-2
The T1F-16AD-2 is part of the Terminator I/O product family developed by Automation Direct for modular PLC and remote I/O systems. This module provides sixteen voltage-based analog input channels capable of measuring signals from sensors and control devices. It operates using an external 24 VDC power supply and integrates with Terminator I/O terminal bases such as the T1K-16B or T1K-16B-1. Configuration and programming are supported through Do-more Designer software version 1.2 or later, enabling seamless integration into industrial automation applications.
Key Features:
-
16 Analog Input Channels: Supports monitoring of multiple voltage signals simultaneously.
-
Voltage Signal Compatibility: Accepts 0–5 VDC, ±5 VDC, ±10 VDC, and 0–10 VDC ranges.
-
14-Bit Resolution: Provides accurate analog signal measurement and conversion.
-
Terminator I/O System Integration: Designed for use with Automation Direct Terminator I/O platforms.
-
External 24 VDC Power Requirement: Provides stable power for module operation.
-
Non-Isolated Input Design: Uses a shared common connection for input channels.
-
PLC Integration Support: Configurable through Do-more Designer programming software.
The T1F-16AD-2 delivers the reliability and precision required for analog signal acquisition in industrial automation systems.
