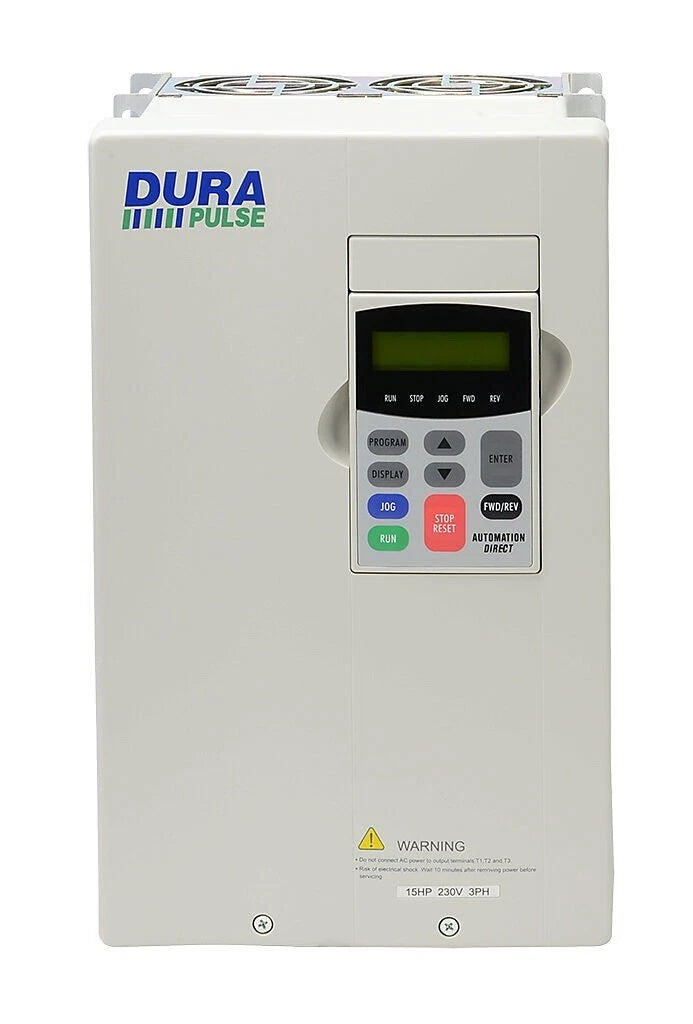

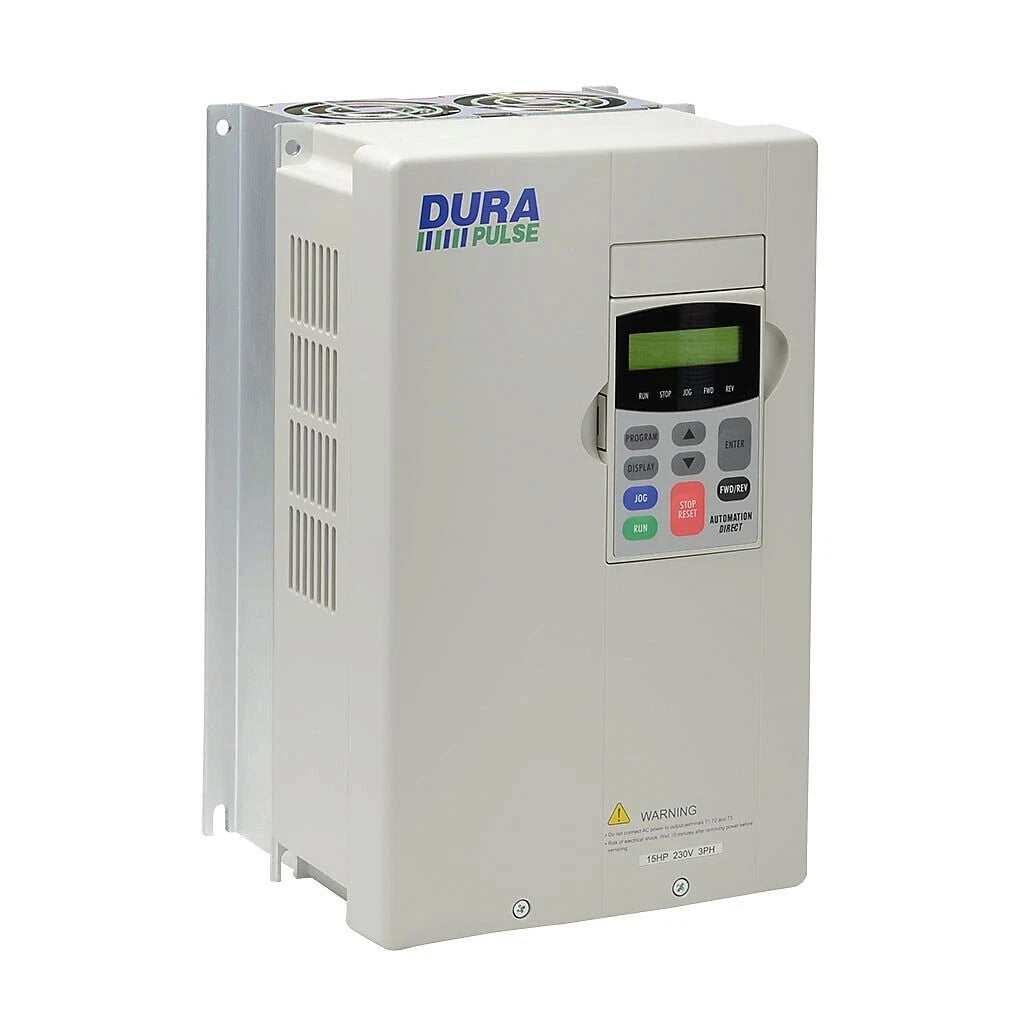

GS3-2015 | AutomationDirect DURApulse 15HP 230VAC Variable Frequency AC Drive with RS-485 Modbus
- Regular price
- $2,187.00
- Sale price
- $2,187.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GS3-2015
Description
The AutomationDirect GS3-2015 is a DURApulse GS3 series AC drive designed to control the speed and torque of three-phase motors in industrial automation systems. It operates on a 230 VAC three-phase input and supports motors up to 15 horsepower, providing precise motor control through advanced inverter technology. This drive is commonly used in applications such as conveyors, pumps, compressors, and material handling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AutomationDirect DURApulse |
| Category | Drives |
| Part Number | GS3-2015 |
| Subcategory | AC Drive |
| Series | DURApulse GS3 |
| Drive Type | AC Variable Frequency Drive |
| Input Voltage | 200–240 VAC |
| Input Phase | Three-phase |
| Motor Power Rating | 15 HP |
| Rated Output Current | 49 A |
| Output Frequency Range | 0.1–400 Hz |
| Control Methods | Sensorless Vector Control (SVC), V/Hz Control |
| Communication Protocol | Modbus RTU |
| Communication Interface | RS-485 |
| Enclosure Rating | IP20 |
| Mounting Type | Panel Mount |
| Weight | 14.3 lb |
Information About GS3-2015
The GS3-2015 is a variable frequency drive built as part of the DURApulse GS3 series for industrial motor control applications. It is designed to regulate motor speed and torque using sensorless vector control or standard V/Hz control methods depending on system requirements. The unit integrates multiple digital and analog inputs, programmable outputs, and RS-485 Modbus communication for seamless integration with PLCs and automation systems. Its enclosed IP20 chassis and integrated dynamic braking circuitry make it suitable for installation in control cabinets used in manufacturing, processing, and machine automation environments.
Key Features:
-
Motor Control Capability: Supports three-phase AC motors up to 15 horsepower for industrial drive applications.
-
Dual Control Modes: Provides sensorless vector control (SVC) and V/Hz control for flexible motor operation and speed regulation.
-
Wide Frequency Output Range: Adjustable output frequency from 0.1 Hz to 400 Hz for precise motor speed control.
-
Integrated Dynamic Braking: Built-in braking circuitry improves deceleration performance in demanding motion applications.
-
Communication Interface: Includes RS-485 port supporting Modbus RTU for integration with PLC and automation networks.
-

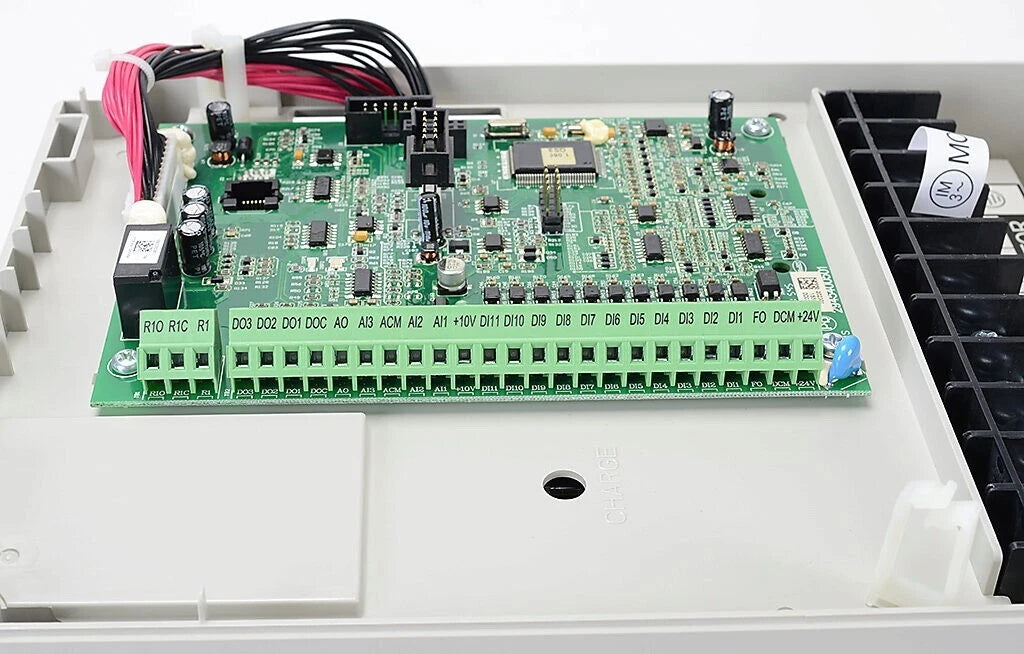

Programmable I/O: Multiple digital and analog inputs and outputs enable flexible configuration and control logic.
-

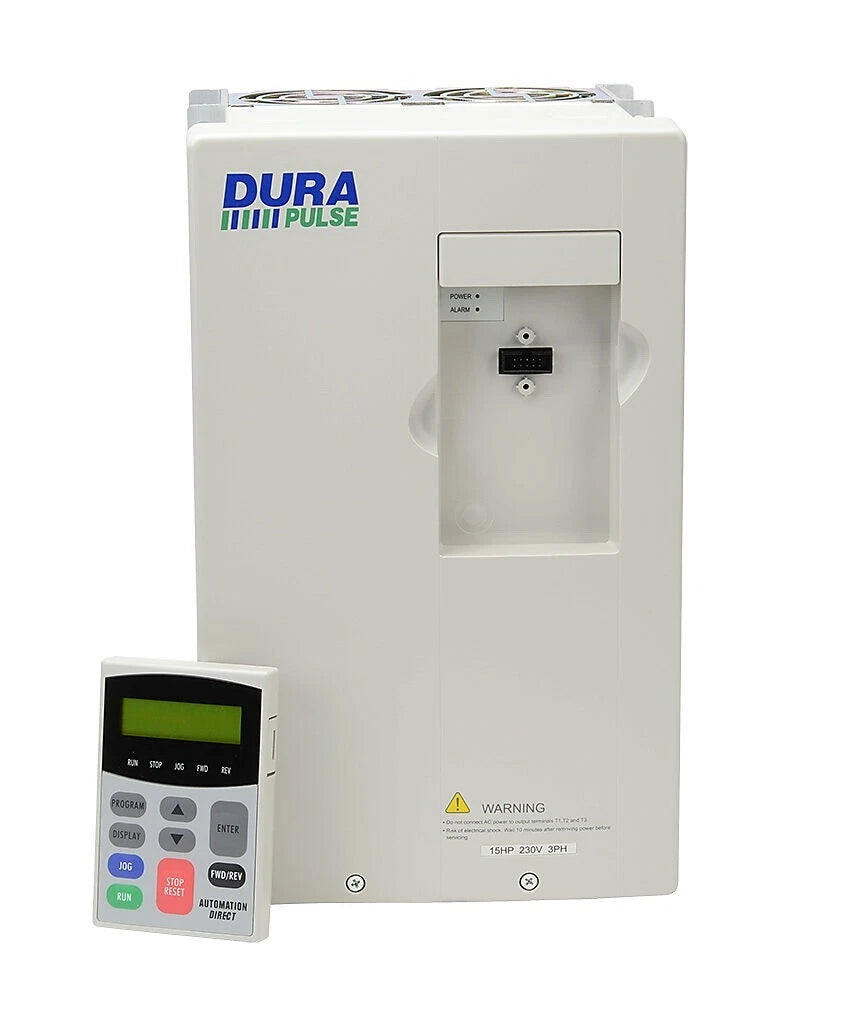

Built-in Keypad Interface: Removable smart keypad allows configuration, monitoring, and storage of multiple parameter sets.
-
Industrial Protection Functions: Includes overload protection, stall prevention, and automatic torque compensation.
The GS3-2015 delivers the reliability and precision required for industrial motor control and variable speed automation systems.
