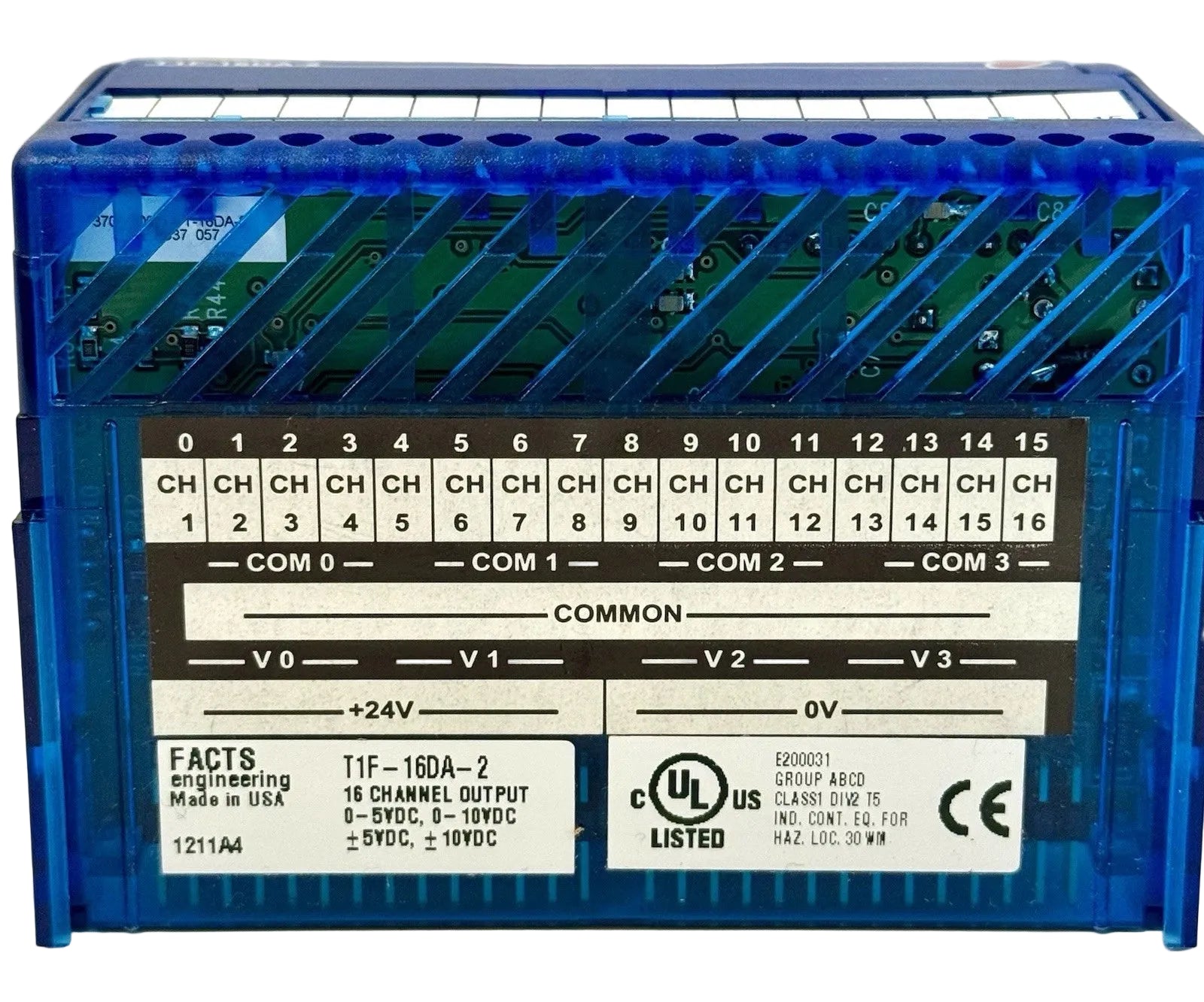

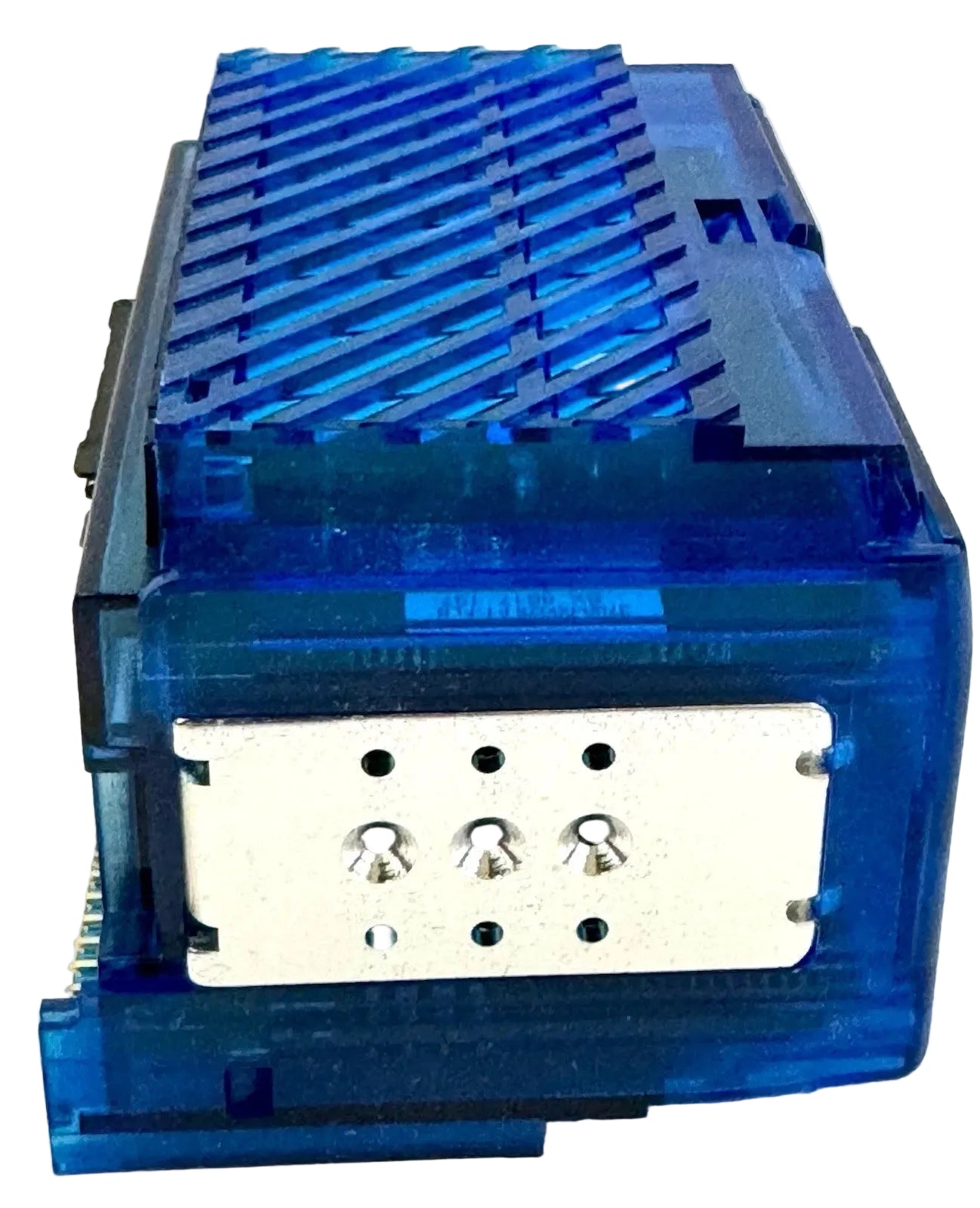

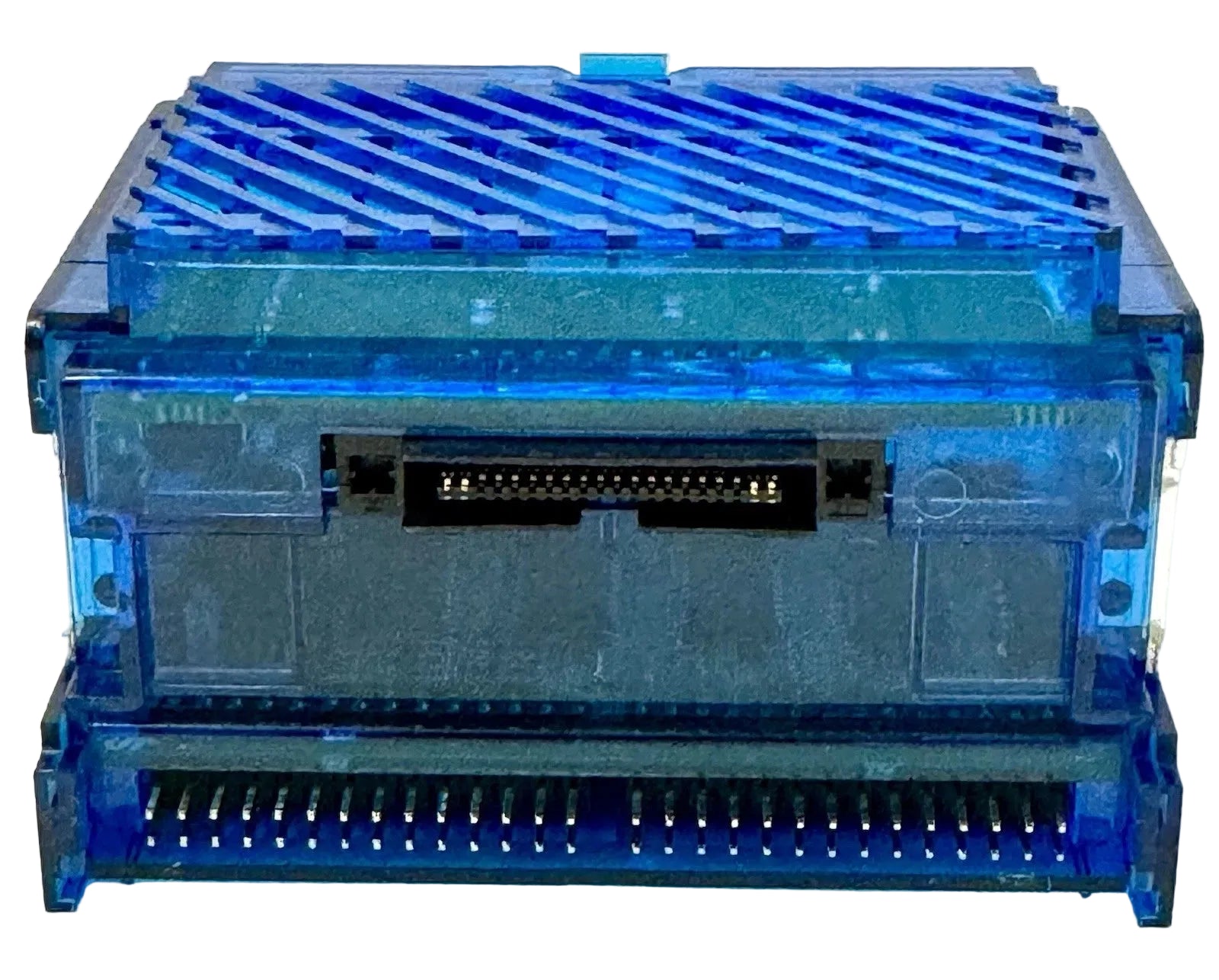

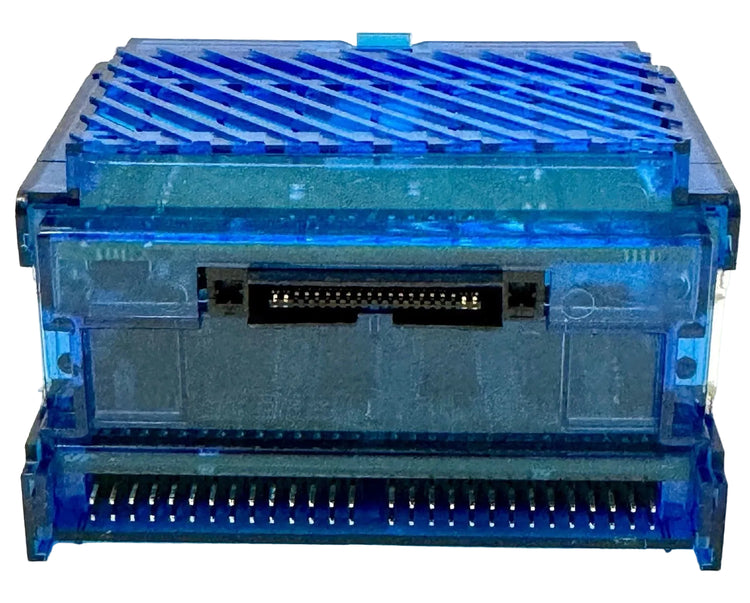

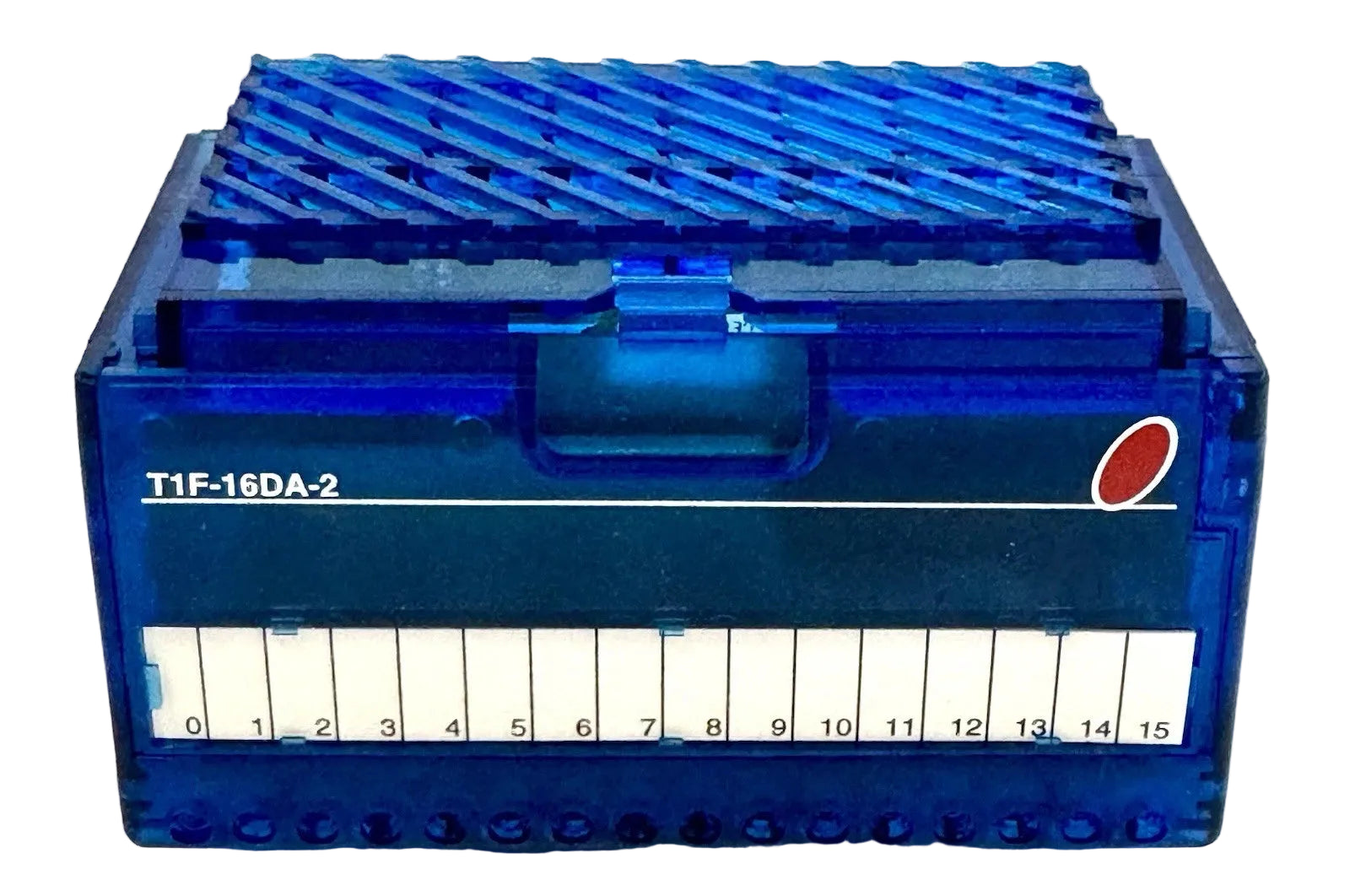

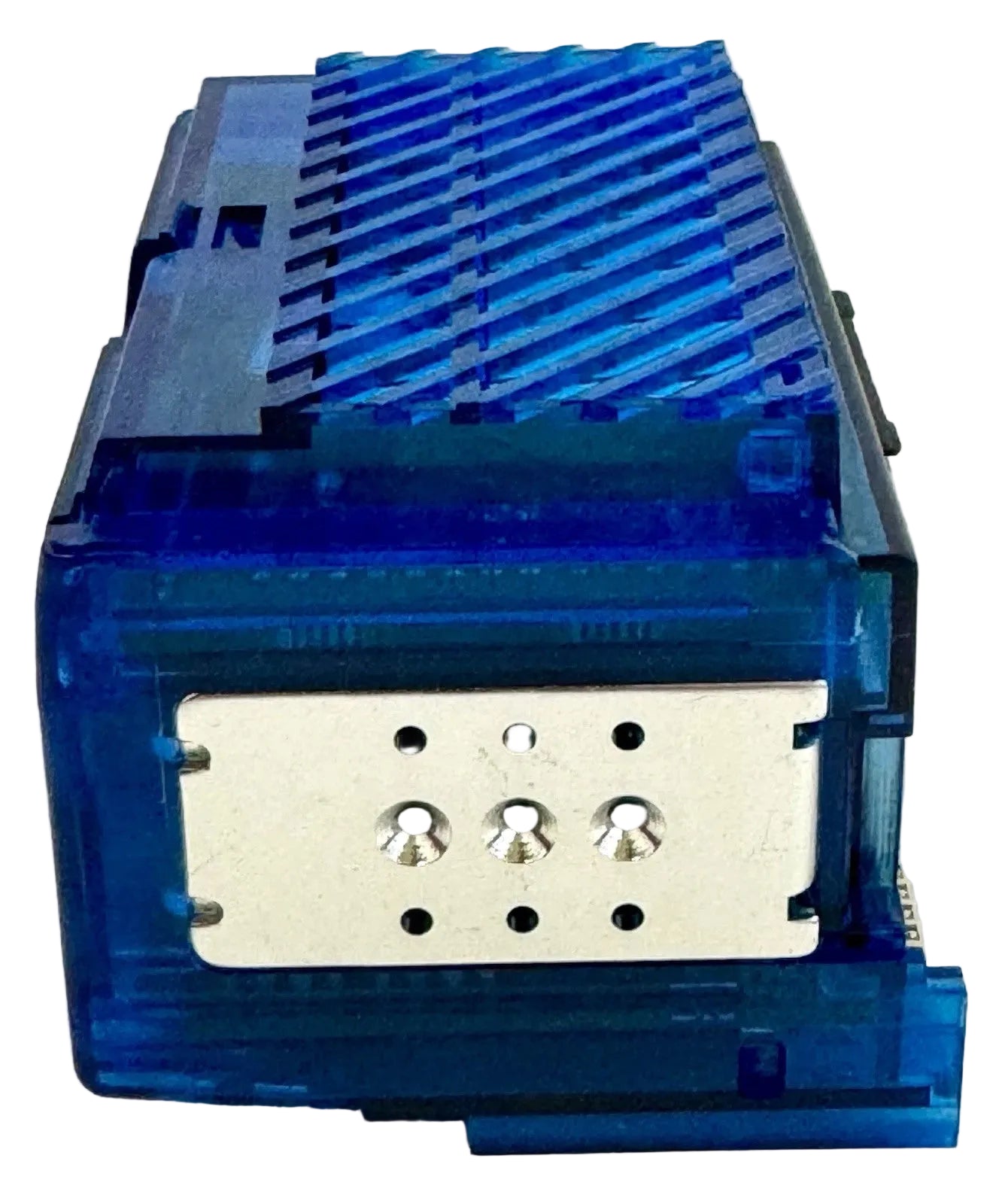

T1F-16DA-2 | AutomationDirect Terminator 16-Channel Analog Voltage Output Module
- Regular price
- $1,397.00
- Sale price
- $1,397.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T1F-16DA-2
Description
The AutomationDirect T1F-16DA-2 is a 16-channel analog voltage output module designed for the Terminator I/O system used in industrial automation and PLC-based control applications. It converts digital control signals into precise analog voltage outputs for controlling field devices such as drives, valves, and actuators. With 12-bit resolution and multiple selectable voltage ranges, this module provides reliable signal output for process control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AutomationDirect Terminator |
| Category | PLCs/Machine Control |
| Part Number | T1F-16DA-2 |
| Subcategory | Analog Output Module |
| Series | Terminator I/O |
| Module Type | Analog Output Module |
| Number of Output Channels | 16 |
| Output Signal Type | Voltage |
| Output Voltage Ranges | 0–5 VDC, 0–10 VDC, ±5 VDC, ±10 VDC |
| Output Resolution | 12-bit |
| Isolation | Non-isolated channels |
| Output Commons | 1 non-isolated common |
| External Power Requirement | 24 VDC |
| Required Terminal Base | T1K-16B or T1K-16B-1 |
| Programming Software | Do-more Designer v1.2 or later |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -20°C to 70°C |
| Weight | 0.39 lb |
Information About T1F-16DA-2
The T1F-16DA-2 is an analog output module built for the Terminator I/O series used with industrial PLC control systems. It is designed to convert digital commands from a controller into analog voltage signals for controlling external equipment. The module features sixteen voltage output channels sharing a single non-isolated common and supports multiple output ranges including 0–5 VDC, 0–10 VDC, ±5 VDC, and ±10 VDC. It installs onto a compatible terminal base such as the T1K-16B or T1K-16B-1 and is configured using Do-more Designer programming software for integration into automation systems.
Key Features:
-
Sixteen Analog Output Channels: Provides 16 voltage output channels for controlling multiple field devices simultaneously.
-
High Resolution Conversion: 12-bit resolution ensures accurate conversion of digital signals into analog voltage outputs.
-
Multiple Voltage Output Ranges: Supports 0–5 VDC, 0–10 VDC, ±5 VDC, and ±10 VDC signal ranges for flexible device compatibility.
-
PLC Integration: Designed for use with Terminator I/O systems in programmable logic controller applications.
-
External Power Requirement: Operates with a 24 VDC external power supply to support stable analog signal output.
-
Terminal Base Compatibility: Requires T1K-16B or T1K-16B-1 terminal base for installation and field wiring.
-
Programmable Configuration: Configured and monitored using Do-more Designer programming software.
-
Compact Modular Design: Snap-in module format allows easy installation and replacement in control racks.
The T1F-16DA-2 delivers the reliability and precision required for industrial analog signal output and PLC-based automation systems.
