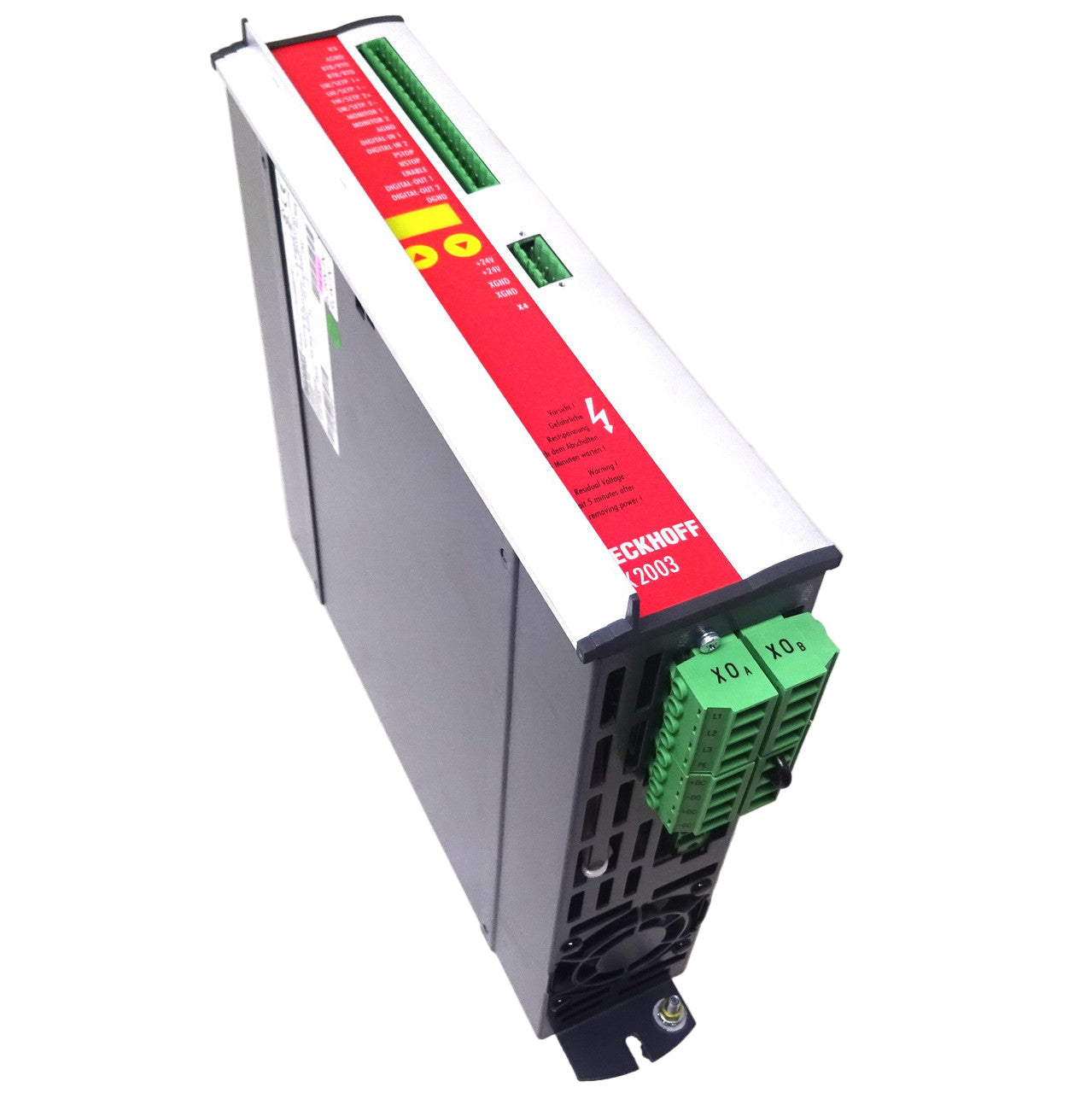

AX2003 | Beckhoff Digital Compact Servo Drive 3 A 3-Phase
- Regular price
- $3,190.00
- Sale price
- $3,190.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AX2003
Description
The Beckhoff AX2003 is a compact digital servo drive designed to deliver precise motor control for automation systems. With a rated output of 3 A, 3-phase input from 230–480 V AC, and support for up to 2 kVA loads, it provides reliable and efficient performance in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Motion Control Drives |
| Part Number | AX2003 |
| Subcategory | Servo Drives |
| Rated Supply Voltage | 3 × 230 V -10% to 480 V +10%, 50/60 Hz |
| Rated Output Current | 3 Arms |
| Peak Output Current | 6 Arms (max, ~5 s) |
| Rated Installed Load (S1) | 2 kVA |
| Auxiliary Supply Voltage | 24 V DC (-0% to +15%) |
| Clock Frequency (Output Stage) | 8 kHz (16 kHz with VDC max = 400 V) |
| Control Signal Connections | Combicon connectors, 18-pole, 2.5 mm² |
| Digital I/O Standard | IEC 61131 |
| Dissipation at Rated Current | 40 W (including PSU losses, excl. regen dissipation) |
| Overvoltage Protection | Threshold 450–900 V |
| Site Altitude | Up to 1000 m a.m.s.l. without restriction |
| Enclosure Protection | IP20 |
| Ambient Operating Temperature | 0…+45 °C (rated); +45…+55 °C with power derating |
| Dimensions (H × W × D) | 275 mm × 100 mm × 265 mm (without connectors) |
| Expansion Card | Without expansion card |
| Weight | 5 kg |
Information About AX2003
The AX2003 is part of Beckhoff’s AX2000 series of compact digital servo drives, developed for dynamic motor control in automation and motion systems. Designed for 3-phase supply networks, it accepts input voltages from 230 V to 480 V AC and provides a continuous output current of 3 Arms with peak currents up to 6 Arms. With an integrated 24 V DC auxiliary supply and protection mechanisms such as overvoltage monitoring, it ensures dependable performance and system safety. Its modular architecture, compliance with IEC 61131 standards, and compact 275 × 100 × 265 mm housing make it easy to integrate into industrial environments where space and efficiency are critical.
Key Features:
-
3 Arms Rated Output Current: Provides reliable current delivery with up to 6 Arms peak for demanding load cycles.
-
Wide Input Voltage Range: Supports 3 × 230–480 V AC supply at both 50 Hz and 60 Hz for flexible installation.
-
Compact Digital Servo Design: Offers high performance in a small form factor for space-constrained control cabinets.
-
2 kVA Continuous Load Capacity: Ensures stable operation for connected motors under S1 continuous duty conditions.
-
Advanced Output Stage: Operates at 8 kHz, with an optional 16 kHz mode when supplied below 400 V DC.
-
Integrated System Safety: Features overvoltage protection in the 450–900 V range for secure operation.
-
Industrial-Grade Connectivity: Uses Combicon 18-pole connectors for secure and standardized wiring.
-
Durable and Protected Housing: IP20 enclosure with ambient operation up to +55 °C with derating.
The AX2003 delivers the reliability and precision required for high-performance servo drive applications in modern automation systems.
