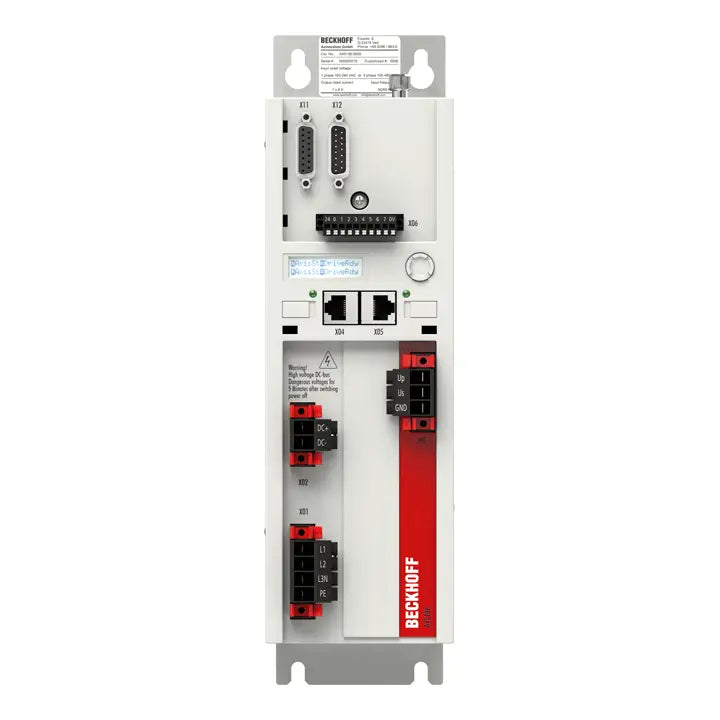

AX5103-0000-0200 | Beckhoff Digital Compact Servo Drive 3 A

Description

The Beckhoff AX5103-0000-0200 is a compact digital servo drive designed for high-performance motion control applications. It supports single-axis operation with a rated output current of 3 A and a peak output of up to 7.5 A. Its efficient design allows seamless integration into automation systems requiring precise and reliable servo control.

Technical Specifications

Information About AX5103-0000-0200

This servo drive is part of Beckhoff’s AX5000 Digital Servo Drive Series, offering advanced control capabilities through EtherCAT communication. With a wide input supply voltage range of 3 x 100…480 V AC and a DC link voltage up to 875 V DC, it delivers consistent and stable operation across industrial environments. The integrated feedback interfaces support multiple encoder systems, including SinCos, resolver, EnDat®, HIPERFACE®, BiSS® B, and OCT, ensuring compatibility with a broad range of servo motors.

The AX5103-0000-0200 is equipped with the SERCOS™ drive profile according to IEC 61800-7-204 (SoE), providing standardized communication for motion control applications. Built for demanding automation tasks, it operates reliably in ambient temperatures between 0…50 °C and carries CE and cULus certifications, guaranteeing compliance with international safety and performance standards.

Key Features:

• Single-axis operation: Provides control for one servo motor with a compact, space-saving design.

• Wide voltage compatibility: Supports rated supply voltage from 3 x 100 to 480 V AC with a maximum DC link voltage of 875 V DC.

• Strong current performance: Delivers a rated output current of 3 A with a peak capacity of 7.5 A for dynamic load handling.

• Versatile feedback support: Compatible with SinCos 1 VPP, resolver, EnDat® 2.1, HIPERFACE®, BiSS® B, and OCT encoder systems.

• EtherCAT communication: Ensures fast and reliable data exchange with integration into modern automation networks.

• SERCOS™ drive profile: Complies with IEC 61800-7-204 (SoE) for standardized servo control applications.

• Industrial-grade durability: Operates in ambient temperatures of 0…50 °C with robust thermal and electrical reliability.

• Certified quality: Meets CE and cULus requirements for safety, performance, and global compatibility.

The AX5103-0000-0200 delivers the reliability and precision required for high-performance motion control in industrial automation systems, supporting advanced servo applications with efficiency and flexibility.
