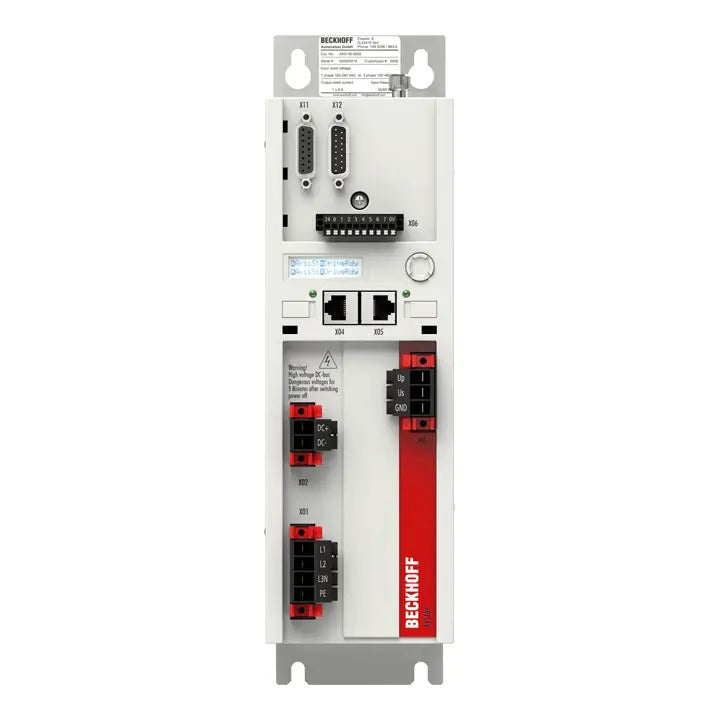

AX5112-0000-0200 | Beckhoff Digital Compact Servo Drive 12 A with EtherCAT and Multi-Feedback Support
- Regular price
- $3,456.00
- Sale price
- $3,456.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AX5112-0000-0200
Description
The Beckhoff AX5112-0000-0200 is a high-performance digital compact servo drive with a rated output current of 12 A and peak output of 26 A. Designed for demanding automation tasks, it integrates EtherCAT communication and supports multiple encoder feedback systems for precise motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Servo Drives |
| Part Number | AX5112-0000-0200 |
| Subcategory | Digital Compact Servo Drives |
| Drive Type | 1-channel digital compact servo drive |
| Rated Output Current | 12 A per channel |
| Peak Output Current | 26 A per channel |
| Rated Supply Voltage | 3×100…480 V AC ±10% |
| DC Link Voltage (max.) | 875 V DC |
| Fieldbus Interface | EtherCAT, SERCOS |
| Feedback Options | SinCos 1 Vpp, Resolver, EnDat 2.1, Hiperface, BiSS B |
| Technology | One Cable Technology (OCT) |
| Hardware Version | 2.0 |
| Firmware Version | 2.06 |
| Protection Rating | IP20 |
| Operating Temperature | 0…+50°C |
| Channels | 1 |
| Depth (without connectors) | 232 mm |
| Height (without connectors) | 317.7 mm |
| Width | 185 mm |
| Approvals/Markings | CE, cULus, EAC |
| Cooling Method | Natural convection with water-cooling option |
| Application | Servo motor drive, motion control, multi-axis automation |
| Weight | 11.64 lbs (approx. 5.28 kg) |
Information About AX5112-0000-0200
The AX5112-0000-0200 is part of Beckhoff’s AX5000 series, developed for precision motor control and high-efficiency automation. It operates with a wide supply voltage of 3×100…480 V AC and a DC link voltage up to 875 V DC, offering flexibility across global installations. This single-channel servo drive supports multiple encoder interfaces, including SinCos, resolver, EnDat 2.1, Hiperface, and BiSS B, ensuring compatibility with a broad range of servo motors. With advanced features such as EtherCAT-based synchronization, water-cooling support for optimized heat management, and built-in safety protections, the AX5112-0000-0200 provides durability, precision, and ease of integration for industrial systems.
Key Features:
-
Rated Output Current: Delivers 12 A continuous current per channel, ensuring stable and reliable operation during long duty cycles.
-
Peak Output Current: Supports up to 26 A peak per channel, allowing the drive to handle sudden load surges and fast acceleration demands.
-
Wide Voltage Range: Operates with 3×100…480 V AC ±10% and up to 875 V DC, simplifying system design for varying power grids.
-
EtherCAT Synchronization: Provides ultra-fast, real-time communication for precise motion control and coordinated multi-axis operation.
-
Feedback Versatility: Supports SinCos, resolver, EnDat 2.1, Hiperface, and BiSS B encoders, offering flexibility for diverse servo motor applications.
-
Advanced Cooling Options: Includes water-cooling capability, ensuring efficient thermal management for continuous-duty, high-load cycles.
-
Compact Design: Measures 317.7 mm in height and 232 mm in depth without connectors, combining high power density with space efficiency.
-
Built-in Safety: Integrates monitored temperatures and protective functions to prevent overheating and maximize uptime.
-
Ease of Commissioning: Features intelligent software tools for parameter tuning, fast setup, and reduced commissioning effort.
-
Certified Compliance: Meets CE, cULus, and EAC industrial standards, ensuring safety and global usability.
The AX5112-0000-0200 delivers the reliability and precision required for advanced automation, multi-axis synchronization, and demanding continuous-duty motion applications.
