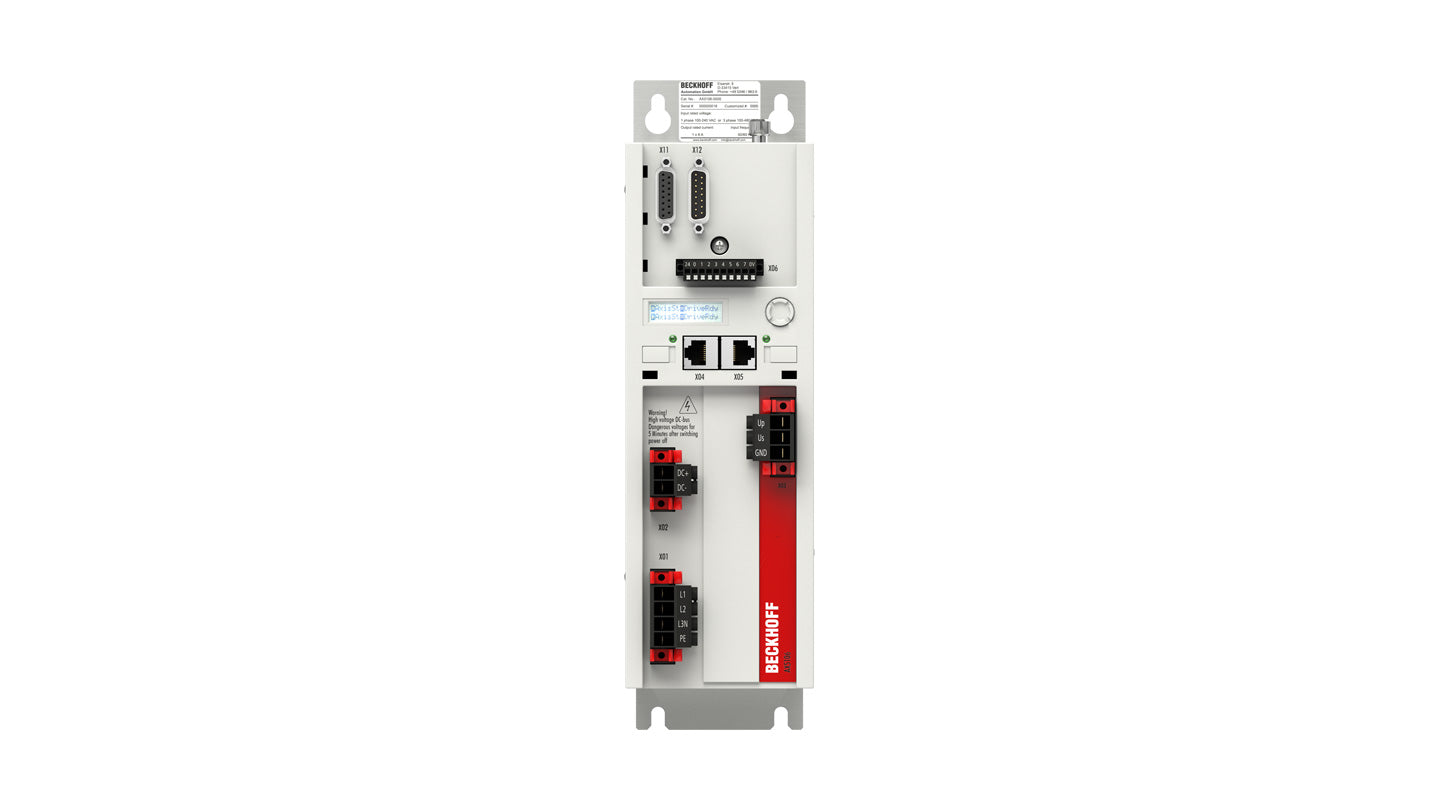

AX5112-0000 | Beckhoff Digital Compact Servo Drive 12 A with EtherCAT and SinCos Feedback
- Regular price
- $1,610.00
- Sale price
- $1,610.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AX5112-0000
Description
The Beckhoff AX5112-0000 is a single-axis digital compact servo drive engineered for precision motor control in industrial automation. It delivers 12 A rated output current, 26 A peak output current, and integrates EtherCAT communication with support for SinCos 1 Vpp feedback.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Servo Drives |
| Part Number | AX5112-0000 |
| Subcategory | Digital Compact Servo Drives |
| Drive Type | 1-channel digital compact servo drive |
| Rated Output Current | 12 A per channel |
| Peak Output Current | 26 A per channel |
| Rated Supply Voltage | 3×100…480 V AC ±10% |
| DC Link Voltage (max.) | 875 V DC |
| Fieldbus Interface | EtherCAT |
| Feedback Options | SinCos 1 Vpp |
| Hardware Version | 2.0 |
| Protection Rating | IP20 |
| Operating Temperature | 0…+50°C |
| Channels | 1 |
| Depth (without connectors) | 232 mm |
| Height (without connectors) | 317.7 mm |
| Width | 185 mm |
| Approvals/Markings | CE, cULus, EAC |
| Application | Motion control, servo motor drive, automation systems |
| Weight | 11.89 lbs (approx. 5.39 kg) |
Information About AX5112-0000
The AX5112-0000 is part of Beckhoff’s AX5000 series of digital compact servo drives, designed for high-performance motion control in demanding industrial applications. Operating with a three-phase supply voltage of 100…480 V AC, the drive delivers a rated output of 12 A and can handle peak loads of up to 26 A, making it suitable for dynamic processes. It supports SinCos 1 Vpp encoder feedback for accurate positioning and control, while utilizing the EtherCAT system bus for real-time, deterministic communication with automation systems. With CE, cULus, and EAC approvals, IP20 protection, and compliance with industrial standards, the AX5112-0000 ensures reliable and safe integration into global automation environments.
Key Features:
-
Rated Output Current: Provides 12 A continuous current per channel, delivering stable performance for servo motors in medium-load applications.
-
Peak Output Current: Supports up to 26 A peak current, enabling the drive to manage short-term load surges and dynamic acceleration demands.
-
Wide Voltage Supply: Operates on 3×100…480 V AC ±10% input, offering flexibility across international industrial power systems.
-
EtherCAT System Bus: Features integrated EtherCAT communication for high-speed, real-time data exchange and synchronization across automation networks.
-
Feedback Support: Compatible with SinCos 1 Vpp encoder systems, ensuring precise motion control and accurate motor positioning.
-
Rugged Industrial Design: Constructed with an IP20 protection rating, suitable for cabinet installation in industrial environments.
-
Thermal Operation Range: Functions reliably in ambient temperatures between 0…+50°C, ensuring performance stability in diverse conditions.
-
High DC Link Voltage: Handles up to 875 V DC, ensuring energy efficiency and robust drive capabilities for high-performance applications.
-
Compliance and Safety: Certified with CE, cULus, and EAC approvals, ensuring adherence to international industrial safety and quality standards.
-
Series Integration: Part of Beckhoff’s AX5000 servo drive family, designed for compatibility and interoperability with Beckhoff motion systems.
The AX5112-0000 delivers the reliability and precision required for single-axis servo motor control in advanced automation and motion systems.
Description
The Beckhoff AX5112-0000 is a single-axis digital compact servo drive engineered for precision motor control in industrial automation. It delivers 12 A rated output current, 26 A peak output current, and integrates EtherCAT communication with support for SinCos 1 Vpp feedback.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Servo Drives |
| Part Number | AX5112-0000 |
| Subcategory | Digital Compact Servo Drives |
| Drive Type | 1-channel digital compact servo drive |
| Rated Output Current | 12 A per channel |
| Peak Output Current | 26 A per channel |
| Rated Supply Voltage | 3×100…480 V AC ±10% |
| DC Link Voltage (max.) | 875 V DC |
| Fieldbus Interface | EtherCAT |
| Feedback Options | SinCos 1 Vpp |
| Hardware Version | 2.0 |
| Protection Rating | IP20 |
| Operating Temperature | 0…+50°C |
| Channels | 1 |
| Depth (without connectors) | 232 mm |
| Height (without connectors) | 317.7 mm |
| Width | 185 mm |
| Approvals/Markings | CE, cULus, EAC |
| Application | Motion control, servo motor drive, automation systems |
| Weight | 11.89 lbs (approx. 5.39 kg) |
Information About AX5112-0000
The AX5112-0000 is part of Beckhoff’s AX5000 series of digital compact servo drives, designed for high-performance motion control in demanding industrial applications. Operating with a three-phase supply voltage of 100…480 V AC, the drive delivers a rated output of 12 A and can handle peak loads of up to 26 A, making it suitable for dynamic processes. It supports SinCos 1 Vpp encoder feedback for accurate positioning and control, while utilizing the EtherCAT system bus for real-time, deterministic communication with automation systems. With CE, cULus, and EAC approvals, IP20 protection, and compliance with industrial standards, the AX5112-0000 ensures reliable and safe integration into global automation environments.
Key Features:
-
Rated Output Current: Provides 12 A continuous current per channel, delivering stable performance for servo motors in medium-load applications.
-
Peak Output Current: Supports up to 26 A peak current, enabling the drive to manage short-term load surges and dynamic acceleration demands.
-
Wide Voltage Supply: Operates on 3×100…480 V AC ±10% input, offering flexibility across international industrial power systems.
-
EtherCAT System Bus: Features integrated EtherCAT communication for high-speed, real-time data exchange and synchronization across automation networks.
-
Feedback Support: Compatible with SinCos 1 Vpp encoder systems, ensuring precise motion control and accurate motor positioning.
-
Rugged Industrial Design: Constructed with an IP20 protection rating, suitable for cabinet installation in industrial environments.
-
Thermal Operation Range: Functions reliably in ambient temperatures between 0…+50°C, ensuring performance stability in diverse conditions.
-
High DC Link Voltage: Handles up to 875 V DC, ensuring energy efficiency and robust drive capabilities for high-performance applications.
-
Compliance and Safety: Certified with CE, cULus, and EAC approvals, ensuring adherence to international industrial safety and quality standards.
-
Series Integration: Part of Beckhoff’s AX5000 servo drive family, designed for compatibility and interoperability with Beckhoff motion systems.
The AX5112-0000 delivers the reliability and precision required for single-axis servo motor control in advanced automation and motion systems.
