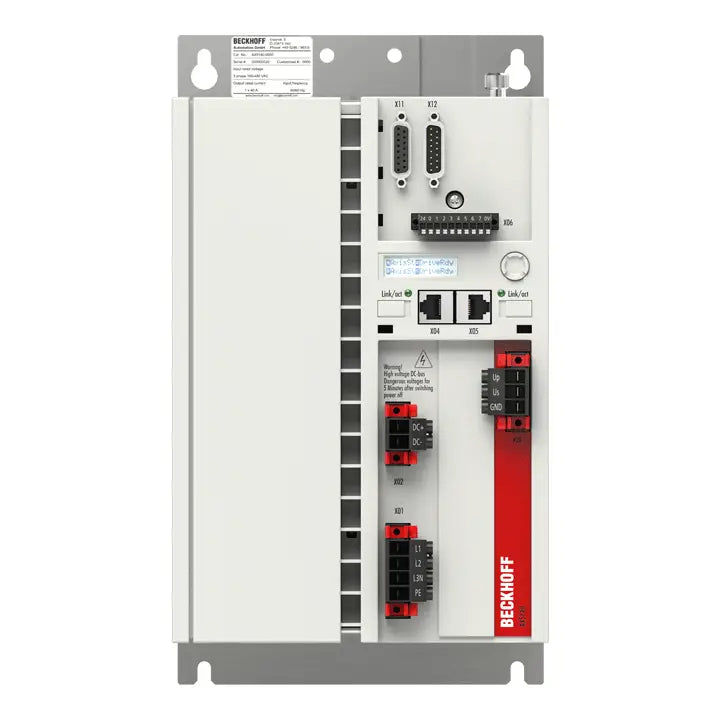

AX5118-0000-0200 | Beckhoff AX5000 Single-Channel Digital Servo Drive, 18A, EtherCAT
- Regular price
- $2,982.00
- Sale price
- $2,982.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AX5118-0000-0200
Description
The Beckhoff AX5118-0000-0200 is a digital servo drive from the AX5000 series, engineered to provide precise motion control for synchronous and asynchronous 3-phase motors. With a single channel and a rated output current of 18 A (36 A peak), it supports EtherCAT communication for high-performance industrial automation applications. This unit is designed for reliable operation across a wide supply voltage range of 3 × 100…480 V AC ±10%.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Servo Products |
| Part Number | AX5118-0000-0200 |
| Subcategory | Servo Drive/Servo Control |
| Series | AX5000 |
| Channels | 1 |
| Rated Supply Voltage | 3 × 100…480 V AC ±10% |
| DC Link Voltage | Max. 875 V DC |
| Rated Output Current per Channel | 18 A |
| Peak Output Current per Channel | 36 A |
| Min. Channel Current | 12 A |
| Internal Brake Resistor Power | 26 kW |
| Motor Compatibility | Synchronous & asynchronous 3-phase motors |
| Feedback Protocols | SinCos 1 Vpp, resolver, EnDat 2.1, Hiperface, BiSS B, OCT |
| System Bus | EtherCAT |
| Drive Profile | SERCOS (IEC 61800-7-204 SoE) |
| Hardware Version | 2.0 |
| Firmware Version | 2.06 |
| Protection Rating | IP20 |
| Operating Temperature | 0…+50 °C |
| Dimensions (W × H × D) | 185 × 274 × 232 mm |
| Approvals | CE, cULus, EAC |
| Weight | 11 kg (≈13.01 lbs) |
Information About AX5118-0000-0200
The AX5118-0000-0200 is a servo drive designed within Beckhoff’s AX5000 series, which emphasizes flexibility, modularity, and high dynamic performance. It supports various motor feedback systems including SinCos, resolver, EnDat 2.1, Hiperface, BiSS B, and OCT, ensuring compatibility with different encoder technologies. The device integrates seamlessly into EtherCAT-based automation systems, using the IEC 61800-7-204 (SoE) SERCOS drive profile for standardized control. With hardware version 2.0 and firmware version 2.06, this drive also accommodates optional modules such as the AX5912 connection module and AX5021 brake module for expanded functionality.
Key Features:
- Single-channel design: Supports one motor channel for focused and efficient motion control.
- Rated and peak current: Delivers 18 A continuous output per channel with up to 36 A peak capacity.
- Wide supply range: Operates on 3 × 100…480 V AC ±10% input with max. DC link voltage of 875 V DC.
- Flexible feedback: Compatible with SinCos 1 Vpp, resolver, EnDat 2.1, Hiperface, BiSS B, and OCT encoders.
- EtherCAT communication: Equipped with dual Ethernet ports for real-time networking and synchronization.
- Expansion capability: Supports optional AX5912 connection and AX5021 brake modules for enhanced functionality.
- Integrated brake resistor: Internal resistor power handling up to 26 kW for energy dissipation.
- Certified compliance: Meets CE, cULus, and EAC standards for global industrial use.
The AX5118-0000-0200 delivers the reliability and precision required for demanding industrial motion control applications.
