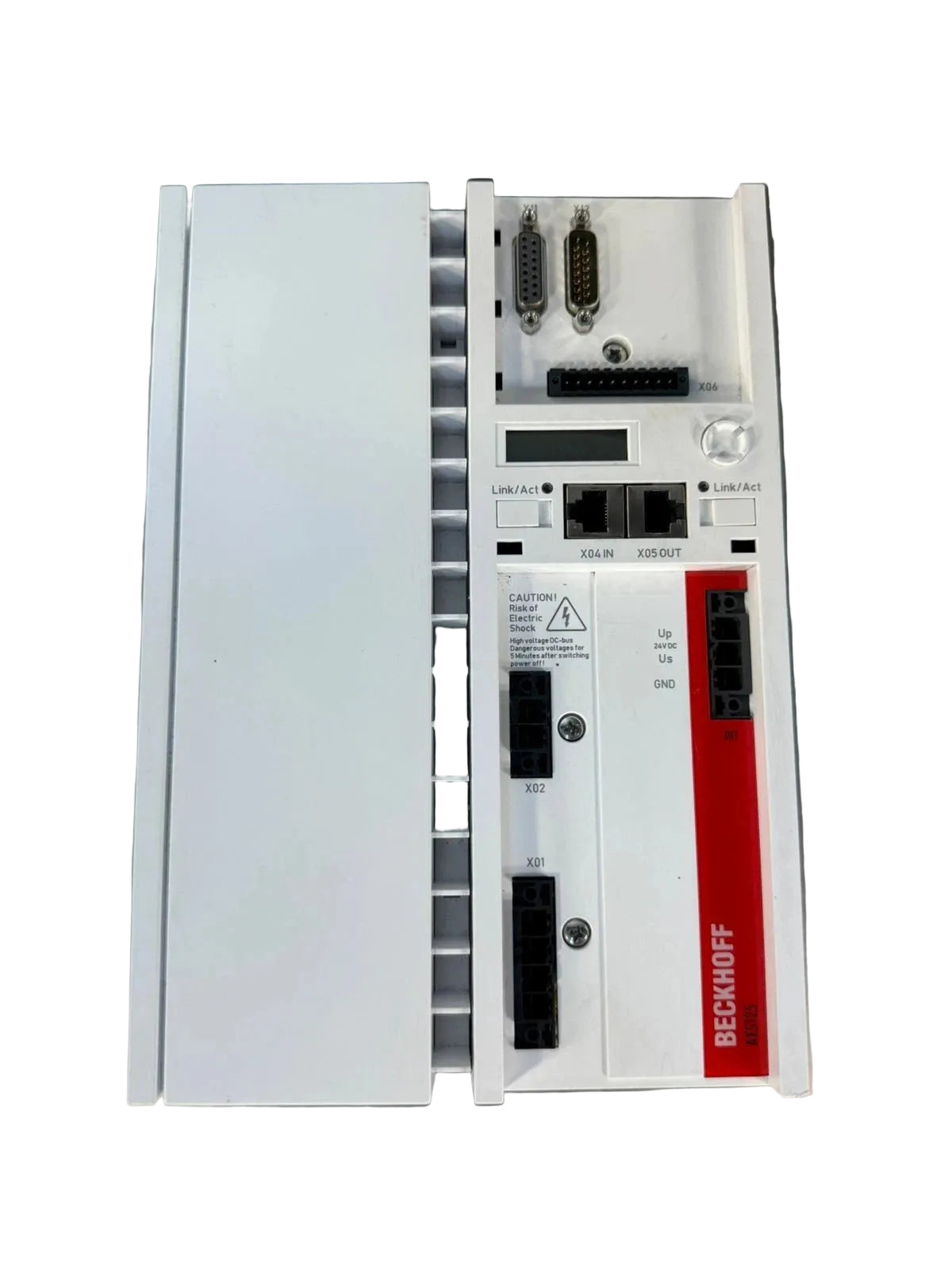

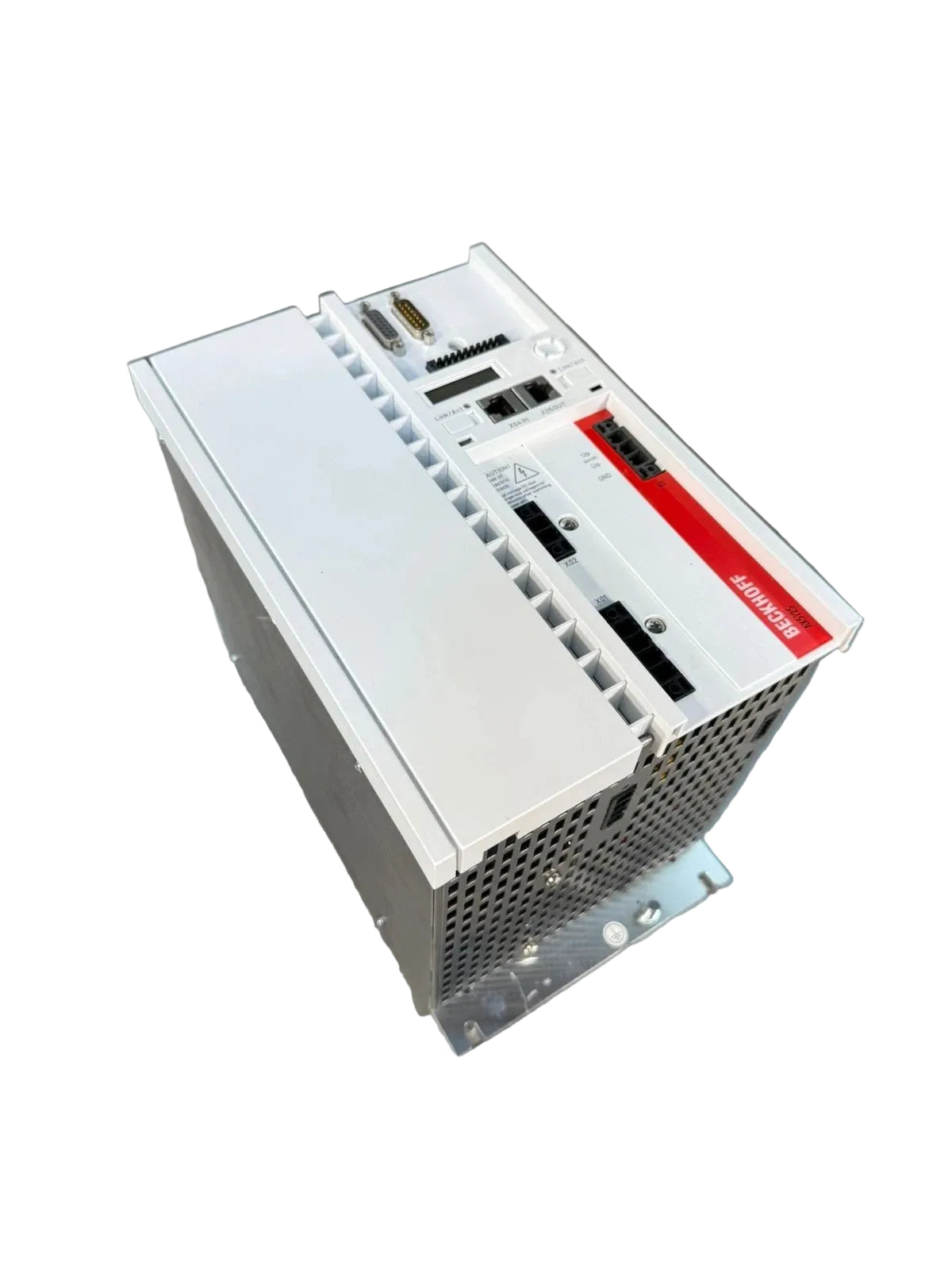

AX5125-0000-0210 | Beckhoff Single-Channel Servo Drive with EtherCAT and SERCOS Profile
- Regular price
- $3,994.00
- Sale price
- $3,994.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AX5125-0000-0210
Description
The Beckhoff AX5125-0000-0210 is a single-channel servo drive designed for high-performance motion control in industrial automation systems. It supports EtherCAT communication and SERCOS drive profiles, enabling precise and synchronized axis control. The drive is engineered to handle demanding dynamic loads with high current capability and broad feedback support.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Motion Control |
| Part Number | AX5125-0000-0210 |
| Subcategory | Servo Drives |
| Drive Type | Single-channel servo drive |
| Rated Supply Voltage | 3×100…480 V AC ±10% |
| DC Link Voltage | Max. 875 V DC |
| Rated Output Current | 25 A (per channel) |
| Peak Output Current | 50 A (per channel) |
| System Bus | EtherCAT |
| Drive Profile | SERCOS (IEC 61800-7-204, SoE) |
| Feedback Interfaces | SinCos 1 Vpp, Resolver, EnDat 2.1, Hiperface, BiSS B, OCT |
| Firmware Version | ≥ 2.10 |
| Hardware Version | 2.0 |
| Operating Temperature | 0 to +50 °C |
| Approvals | CE, cULus, EAC |
| Dimensions (W×D×H) | 185 × 232 × 274 mm |
| Weight | Approx. 14 kg |
Information About AX5125-0000-0210
The AX5125-0000-0210 is part of Beckhoff’s AX5000 servo drive series, developed for modular and scalable multi-axis motion control architectures. It operates with a wide three-phase supply voltage range and integrates seamlessly into EtherCAT-based control systems. The drive supports multiple encoder and motor feedback technologies, allowing compatibility with a broad range of servo motors. Its robust hardware design and certified approvals make it suitable for continuous-duty operation in industrial environments.
Key Features:
- Single-Channel Servo Drive: Designed for independent control of one servo axis with high precision.
- High Current Capability: Provides 25 A rated and 50 A peak output current for dynamic motion profiles.
- Wide Supply Voltage Range: Operates on 3×100 to 480 V AC ±10% for flexible system integration.
- EtherCAT System Bus: Enables real-time communication and synchronization within Beckhoff control systems.
- SERCOS Drive Profile Support: Compliant with IEC 61800-7-204 and SoE standards.
- Multiple Feedback Interfaces: Supports SinCos, Resolver, EnDat 2.1, Hiperface, BiSS B, and OCT feedback types.
- Industrial Certifications: Approved to CE, cULus, and EAC standards for global deployment.
The AX5125-0000-0210 delivers the reliability and precision required for high-performance servo-driven motion control applications.
