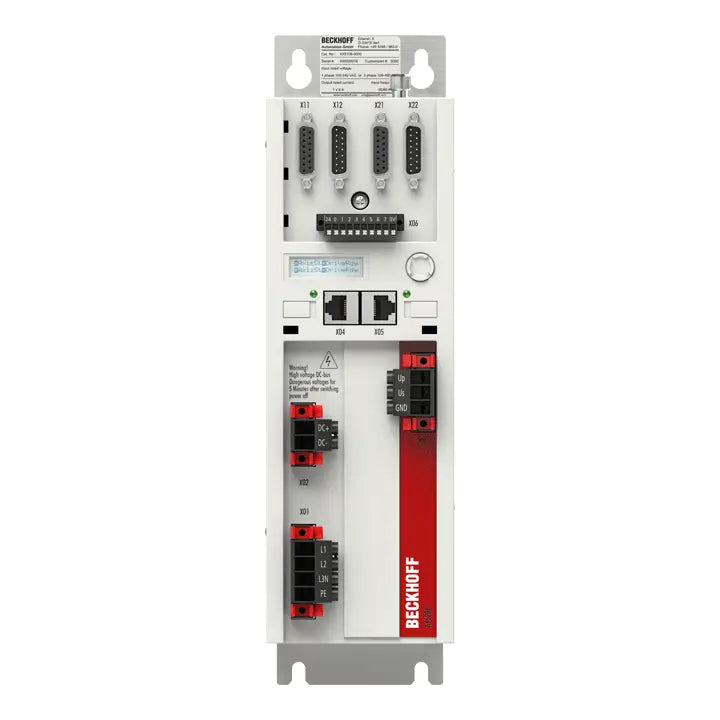

AX5203-0000-0200 | Beckhoff Digital Compact Servo Drive 2-Channel 3 A

Description

The Beckhoff AX5203-0000-0200 is a dual-channel digital compact servo drive designed for precise and efficient motor control. It provides a rated output current of 2 × 3 A per channel with peak output up to 10 A, enabling reliable performance in demanding automation environments.

Technical Specifications

Information About AX5203-0000-0200

The AX5203-0000-0200 is part of Beckhoff’s AX5000 Digital Compact Servo Drive Series, engineered for dynamic motion control in multi-axis applications. With EtherCAT communication, it ensures ultra-fast synchronization and supports a wide range of feedback systems including SinCos, resolver, EnDat®, HIPERFACE®, BiSS® B, and OCT. Its design meets the IEC 61800-7-204 SERCOS™ drive profile, ensuring compatibility and integration within advanced industrial automation systems. Compact yet powerful, it provides high efficiency in machine performance, while maintaining CE and cULus safety approvals for global use.

Key Features:

• Dual-Axis Control: Two independent channels deliver rated output currents of 3 A each, with peak handling of 10 A per channel for demanding motion tasks.

• Wide Voltage Range: Operates on a rated supply of 3 × 100…480 V AC ±10%, with DC link voltage up to 875 V DC for flexible global deployment.

• High-Performance Feedback Options: Compatible with SinCos 1 VPP, resolver, EnDat® 2.1, HIPERFACE®, BiSS® B, and OCT, ensuring precise motion feedback.

• EtherCAT System Bus: Provides high-speed, deterministic communication for real-time motion synchronization across multiple axes.

• Industry Standard Compliance: Implements the SERCOS™ drive profile according to IEC 61800-7-204 for reliable integration in automation systems.

• Compact Dimensions: With a height of 274 mm, depth of 232 mm, and width of only 92 mm, it delivers high power density in minimal space.

• Thermal Efficiency: Operates reliably at ambient temperatures from 0…50°C with integrated protective functions.

• Global Certifications: CE and cULus approvals ensure suitability for worldwide industrial applications.

• Rugged Construction: Built to handle industrial environments while maintaining stable long-term performance.

• Modular Integration: Designed for seamless inclusion in Beckhoff’s motion control ecosystem, supporting multi-axis automation setups.

The AX5203-0000-0200 delivers the reliability and precision required for synchronized multi-axis control in industrial automation.
