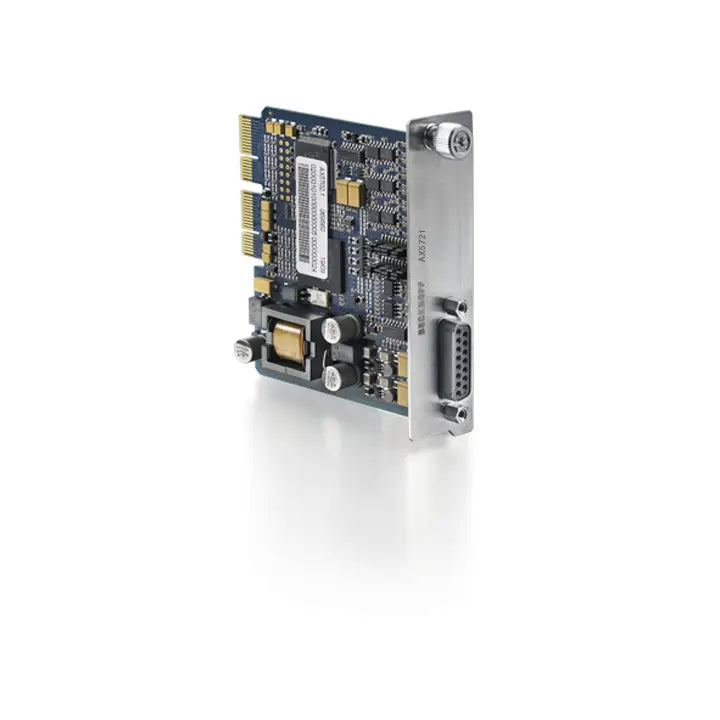

AX5721-0000 | Beckhoff Encoder Option Card for AX5000 Servo Drives
- Regular price
- $852.00
- Sale price
- $852.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AX5721-0000
Description
The Beckhoff AX5721-0000 is an encoder option card designed for use with AX5000 series digital servo drives. It provides an additional encoder input supporting EnDat 2.2 and BiSS C interfaces, ensuring high-precision position control and reliable motion feedback in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | AX5721-0000 |
| Subcategory | Encoder Option Card |
| Compatible Series | AX5000 Digital Servo Drives |
| Encoder Interfaces | EnDat 2.2, BiSS C |
| Connector Type | 1 × D-Sub (X41 for Channel 1) |
| Function | Additional encoder input for servo drives |
| Supported Encoder Types | Absolute and incremental encoders |
| Application | High-precision position control |
| Mounting Location | Internal option slot of AX5000 drive |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +85°C |
| Approvals | CE, cULus |
| Protection Rating | IP20 |
| Series | AX Digital Servo Drive Series |
| Weight | 1.40 lbs (approx. 635 g) |
Information About AX5721-0000
The AX5721-0000 is part of Beckhoff’s AX5000 Digital Servo Drive Series, engineered to enhance servo system functionality with advanced encoder connectivity. This option card provides an additional encoder input for precise motion and position feedback using EnDat 2.2 and BiSS C standards. It connects via a D-Sub interface (X41 for Channel 1) and allows the integration of absolute or incremental encoders for increased system flexibility. Built for high-performance motion control, the AX5721-0000 enables better synchronization and feedback accuracy in multi-axis systems while maintaining full compatibility with Beckhoff TwinCAT automation software.
Key Features:
- Additional Encoder Input: Expands AX5000 servo drives with a secondary encoder interface for enhanced feedback capabilities.
- Supports Multiple Standards: Compatible with EnDat 2.2 and BiSS C feedback systems for universal encoder integration.
- Precision Control: Enables high-resolution position feedback, improving motion accuracy and dynamic response.
- Robust Connector Design: Equipped with a D-Sub (X41) interface providing reliable signal transmission and easy installation.
- Seamless Integration: Designed specifically for Beckhoff AX5000 drives, ensuring full hardware and software compatibility.
- Industrial Performance: Operates effectively in demanding automation environments from 0°C to +50°C with CE and cULus certification.
- Modular Expansion: Allows scalable control configurations for single or multi-axis applications.
- Reliable Feedback Communication: Maintains consistent data transfer even in high-speed motion systems.
The AX5721-0000 delivers the reliability and precision required for servo motion control, encoder feedback expansion, and high-performance automation processes.
