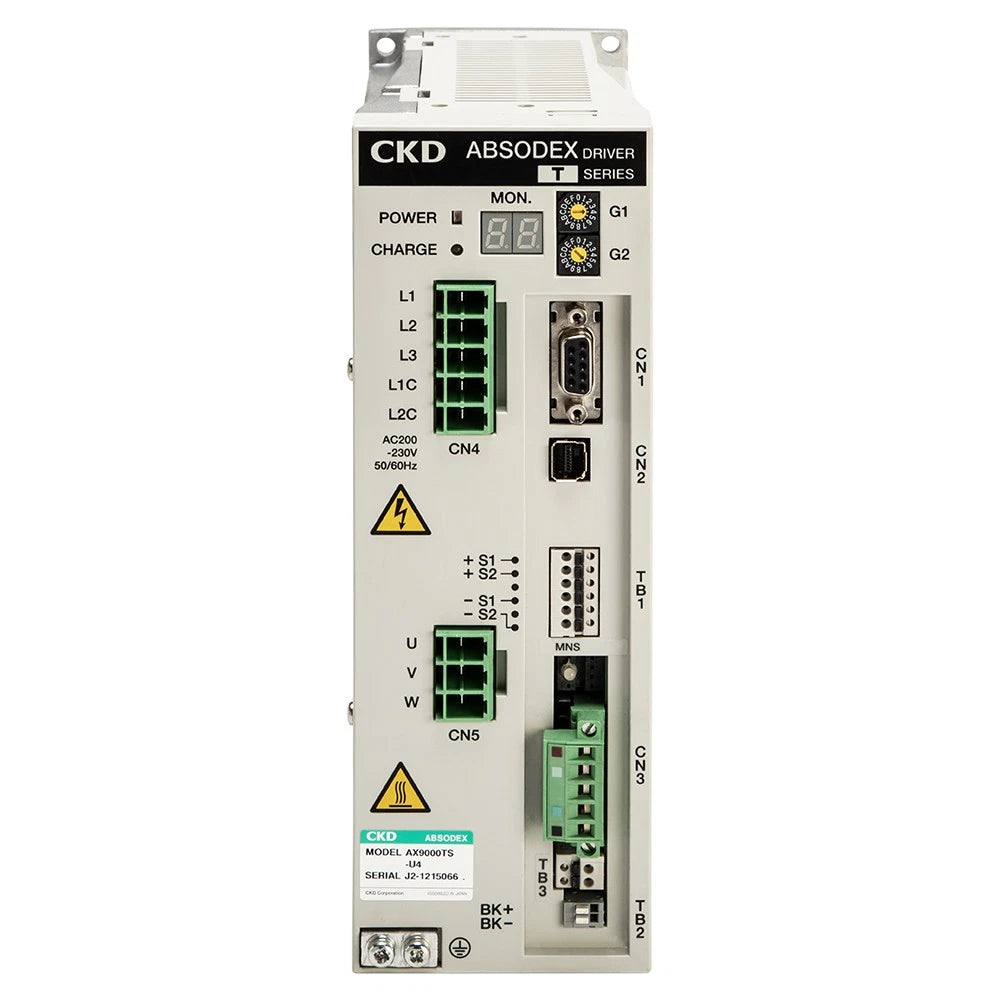

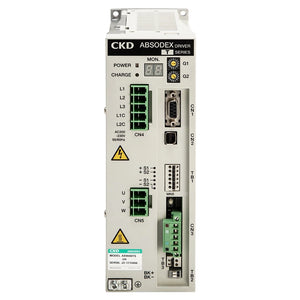

AX9000TS-U4 | CKD Corp Absodex High-Performance Servo Drive 200–230V 3-Phase
- Regular price
- $3,978.00
- Sale price
- $3,978.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AX9000TS-U4
Description
The CKD AX9000TS-U4 is a high-performance ABSODEX servo drive designed for precise motion control in automated systems. Operating on 200–230 V power, this CKD unit provides stable three-phase drive output and advanced monitoring capabilities for demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | CKD Corp |
| Category | Industrial Drives |
| Part Number | AX9000TS-U4 |
| Subcategory | Servo Drives |
| Driver Type | TS Type ABSODEX |
| Interface | DeviceNet |
| Input Voltage | AC 200–230 V ±10% (3-phase/Single-phase) |
| Input Frequency | 50/60 Hz |
| Output Voltage | AC 230 V |
| Control Power | Separate control and main power design |
| Display | 7-segment 2-digit LED |
| Communication | Built-in serial communication option |
| Encoder Output | Supported (parallel I/O models) |
| Monitoring Functions | Position data, alarm status, system diagnostics |
| Construction | Lightweight resin body |
| Wiring | Connector-based wiring (replaces screw terminals) |
| Weight | 3.44 lbs |
Information About AX9000TS-U4
The AX9000TS-U4 is part of CKD’s ABSODEX servo drive family, engineered to support high-precision rotary positioning and motion control across a wide range of industrial automation platforms. Designed for 200–230 V three-phase or single-phase input, it offers stable power delivery while separating main and control power to improve safety and reliability. The drive incorporates connector-based wiring to simplify installation and reduce maintenance time, while its lightweight resin housing minimizes panel load and supports compact machine design. With optional serial communication, encoder output functionality, and enhanced monitoring for position and alarm data, the AX9000TS-U4 integrates smoothly into DeviceNet environments and provides accurate feedback for advanced control systems.
Key Features:
- High-Performance ABSODEX Control: Provides precise rotary positioning and stable drive output for advanced automation tasks.
- 200–230V Multi-Phase Input Support: Accepts both three-phase and single-phase AC power for installation flexibility.
- Connector-Based Wiring: Replaces traditional terminal blocks to streamline setup and reduce wiring complexity.
- Lightweight Resin Construction: Offers a compact, durable housing that reduces control panel weight.
- Integrated LED Display: Two-digit 7-segment readout supports quick status checks and parameter viewing.
- Encoder Output Capability: Supplies position feedback through parallel I/O for synchronized control.
- Enhanced Device Monitoring: Tracks position, alarm conditions, and operational data for reliable diagnostics.
- Built-In Serial Communication: Supports extended system integration through optional communication features.
- DeviceNet Interface Compatibility: Enables seamless communication within modern industrial network architectures.
- Separated Power Inputs: Dedicated main and control power circuits improve protection and operational stability.
The AX9000TS-U4 delivers the reliability and precision required for automated systems requiring accurate, network-integrated servo control.
