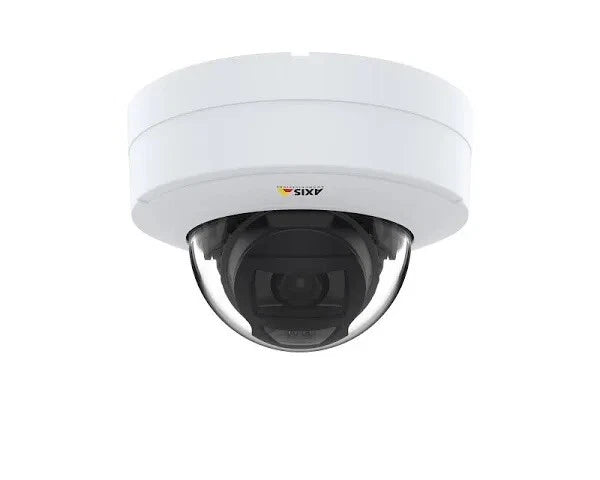

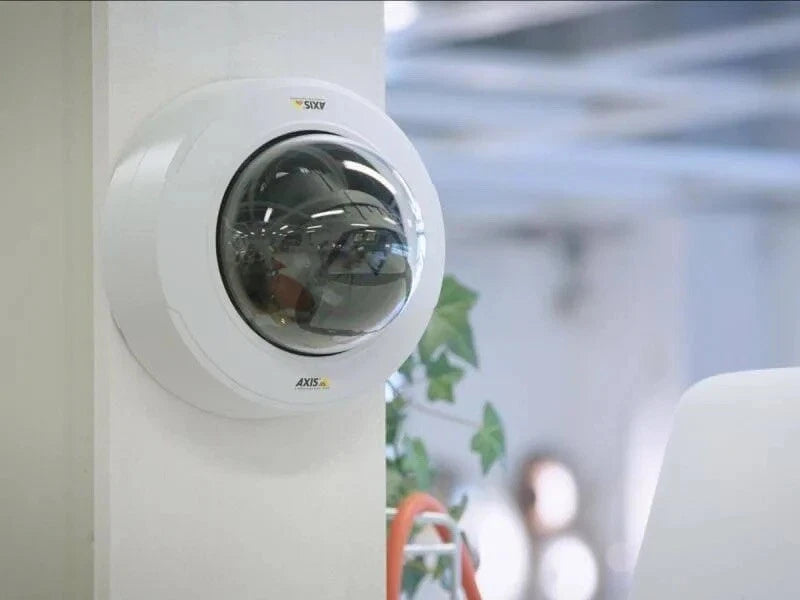

P3245-LV | Axis Communications 1080p Fixed Dome Network Camera with OptimizedIR and Forensic WDR
- Regular price
- $452.00
- Sale price
- $452.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P3245-LV
Description
The Axis Communications P3245-LV is a fixed dome network camera designed for indoor ceiling or wall installation with HDTV 1080p video capture. The Axis Communications P3245-LV combines Lightfinder 2.0, Forensic WDR, and OptimizedIR to maintain usable images in mixed lighting and in complete darkness. The P3245-LV supports multi-stream H.264/H.265 video and includes onboard analytics and two-way audio connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Axis Communications |
| Category | Video Surveillance |
| Part Number | P3245-LV |
| Subcategory | Network Dome Camera |
| Camera Type | Fixed dome IP camera |
| Image Sensor | 1/2.8" progressive scan RGB CMOS |
| Max Video Resolution | 1920 × 1080 (1080p) |
| Video Compression | H.264, H.265, Motion JPEG |
| Frame Rate | Up to 25/30 fps at 1080p with WDR (50/60 Hz) |
| Lens | Varifocal 3.4–8.9 mm, F1.8, IR corrected, P-Iris |
| Field of View | Horizontal 100°–36°, Vertical 53°–20° |
| Shutter Speed | 1/66500 s to 2 s |
| Day/Night Mode | Auto IR-cut filter (removable) |
| Min Illumination | Color 0.1 lux @ 50 IRE (F1.8); B/W 0.02 lux @ 50 IRE; 0 lux with IR |
| IR Illumination | Integrated OptimizedIR, 850 nm LEDs |
| Night IR Range | Up to 40 m (scene dependent) |
| Audio | Full duplex; mic/line input and line output (via terminal block) |
| I/O | 1 supervised digital input, 1 digital output (12 V DC output, max 25 mA) |
| Network Interface | RJ45 10/100BASE-TX (PoE) |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 3; typical 6.4 W, max 10.7 W |
| Ingress/Impact Rating | IP52, IK10 |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions | Ø149 mm (5.87 in) × 103 mm (4.06 in) height |
| Weight | 1.4 lb |
Information About P3245-LV
The P3245-LV is a fixed-dome IP camera in the AXIS P32 series intended for continuous surveillance in office and commercial environments where lighting conditions vary significantly. It uses a 1/2.8" progressive-scan RGB CMOS sensor and a varifocal 3.4–8.9 mm lens with remote zoom and focus to simplify commissioning after installation. The camera includes an automatically removable IR-cut filter for day/night operation and an integrated OptimizedIR system rated for up to 40 m night illumination depending on scene conditions. For network integration and data handling, it supports IPv4/IPv6, secure boot with signed firmware, and multiple simultaneous streams with controllable bitrate modes.
Key Features:
- HDTV 1080p imaging: Outputs up to 1920 × 1080 video for detailed identification and overview coverage.
- Lightfinder 2.0 low-light performance: Maintains improved color rendition and clarity in dim environments.
- Forensic WDR support: Balances bright and dark regions in the same scene for readable subjects and backgrounds.
- OptimizedIR illumination: Integrated 850 nm IR LEDs with adjustable intensity and up to 40 m range (scene dependent).
- Varifocal lens with remote adjustment: 3.4–8.9 mm lens with remote zoom/focus and P-Iris control for stable exposure.
- Multi-codec streaming: Supports H.264, H.265, and Motion JPEG with individually configurable streams.
- Edge analytics capability: Supports AXIS Object Analytics for human/vehicle detection and rule-based triggers.
- Audio and I/O interfaces: Full-duplex audio plus digital I/O for supervised input and output signaling.
The P3245-LV delivers the reliability and precision required for 1080p IP video surveillance with low-light coverage and analytics-assisted monitoring.
