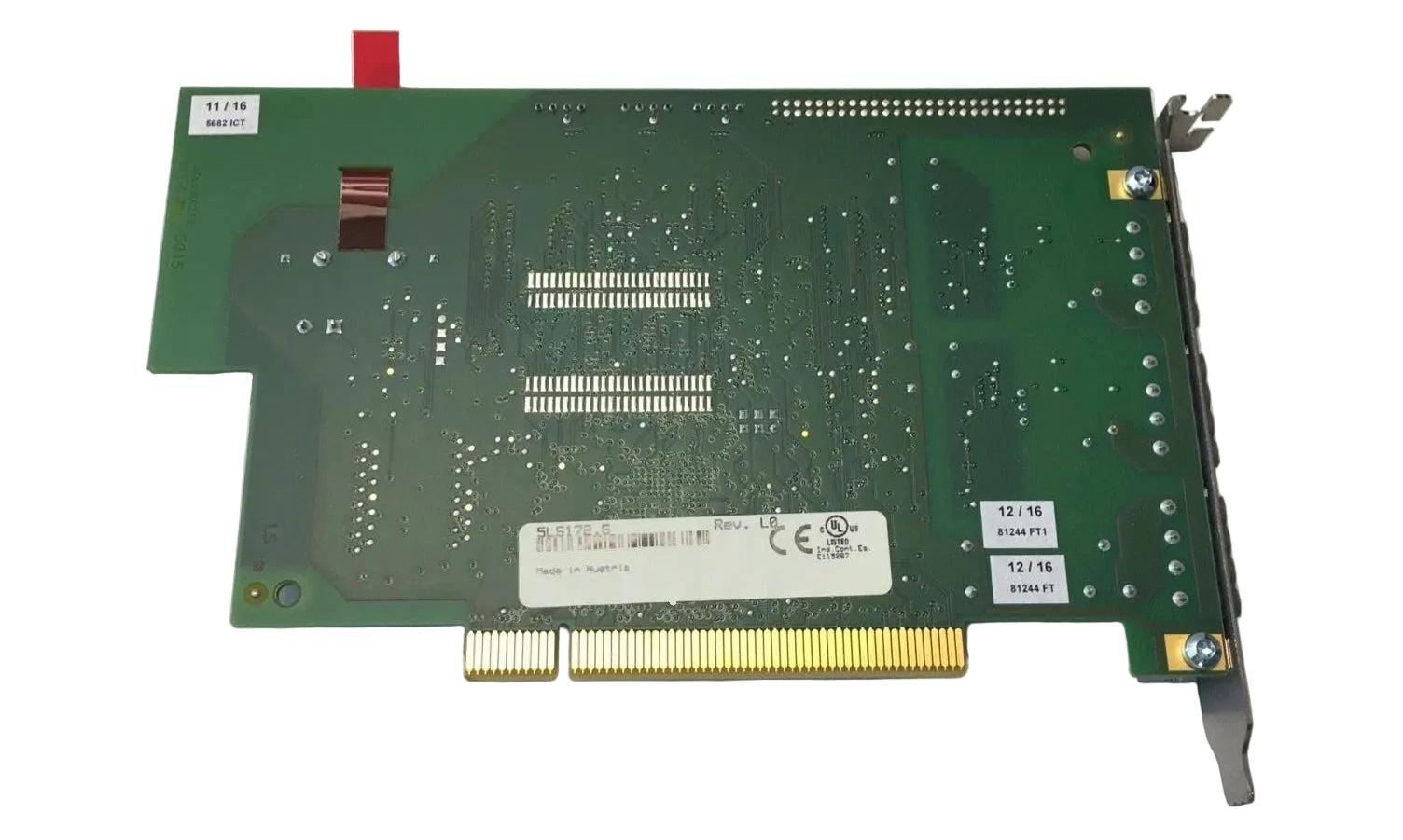

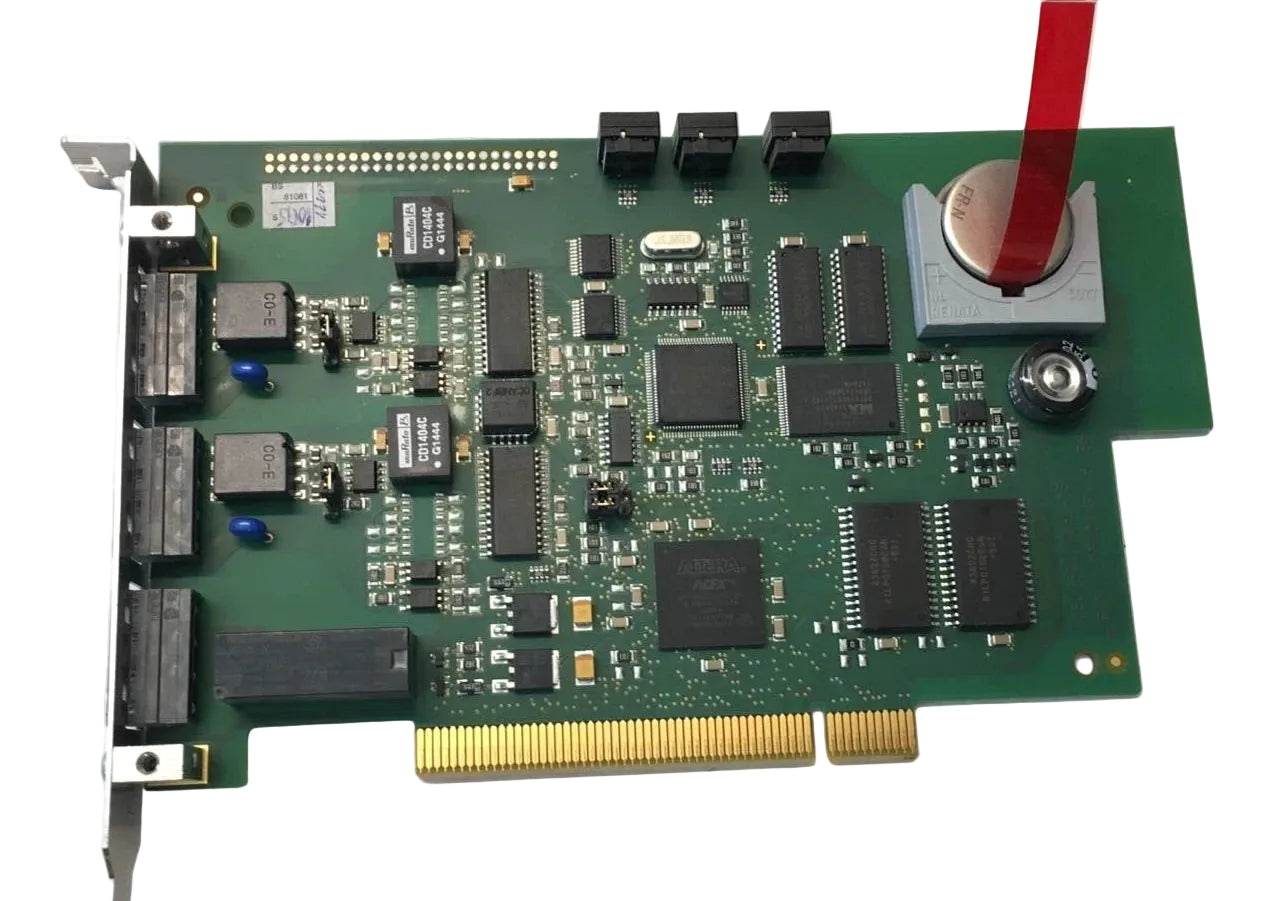

B&R 5LS172.6 Logic Scanner PCI CAN Bus Module Dual Interface 256KB SRAM
- Regular price
- $4,325.00
- Sale price
- $4,325.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5LS172.6
Description
The B&R 5LS172.6 is a logic scanner module designed for industrial automation systems, featuring dual CAN bus interfaces for reliable communication. Built as a PCI half-size card, it enables efficient data acquisition and control within automation PCs. This module provides stable performance with electrically isolated interfaces and onboard memory for processing tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | B&R |
| Category | Industrial Automation |
| Part Number | 5LS172.6 |
| Subcategory | Communication Modules |
| Module Type | Logic Scanner |
| Interfaces | 2x CAN Bus |
| Connector Type | 4-pin Male Multipoint |
| Max Distance | Up to 1000 m |
| Transfer Rate | Up to 500 kbit/s |
| Memory | 256 kB SRAM (Battery-backed) |
| Power Consumption | 2.4 W |
| Electrical Isolation | Yes (PC to IF1/IF2, IF1 to IF2) |
| Relay Output | NO/NC, max. 30 VDC, 6 A |
| Installation Type | PCI Half-Size Slot |
| Compatibility | B&R Automation PC, Panel PC, Desktop PC |
| Protection Rating | IP20 (Installed State) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Humidity Range | 0–95% Non-condensing |
| Certifications | CE, cULus (E115267) |
| Included Accessories | Terminal Blocks, Lithium Battery |
| Weight | 0.8 lb |
Information About 5LS172.6
The 5LS172.6 is part of B&R’s industrial control and communication module lineup, engineered for integration into automation and panel PCs. It features two CAN bus interfaces with electrical isolation, ensuring secure and interference-resistant communication between devices. The module includes 256 kB of battery-backed SRAM for data storage and processing reliability during power interruptions. Designed for plug-and-play installation, it fits standard PCI half-size slots in B&R and compatible desktop systems. It supports long-distance communication up to 1000 meters and transfer rates up to 500 kbit/s, making it suitable for distributed industrial networks.
Key Features:
- Dual CAN Bus Interfaces: Provides two independent CAN channels for flexible network communication.
- Electrical Isolation: Ensures safe and reliable data transmission between interfaces and host system.
- PCI Half-Size Form Factor: Enables easy installation in automation PCs and standard desktop systems.
- Battery-Backed SRAM: Includes 256 kB memory to retain data during power loss.
- Long-Distance Communication: Supports up to 1000 meters transmission range for distributed systems.
- High Data Transfer Rate: Operates at speeds up to 500 kbit/s for efficient communication.
- Low Power Consumption: Consumes only 2.4 W for energy-efficient operation.
- Industrial Reliability: Designed for continuous use in demanding industrial environments.
The 5LS172.6 delivers the reliability and precision required for CAN-based industrial communication and control applications.
