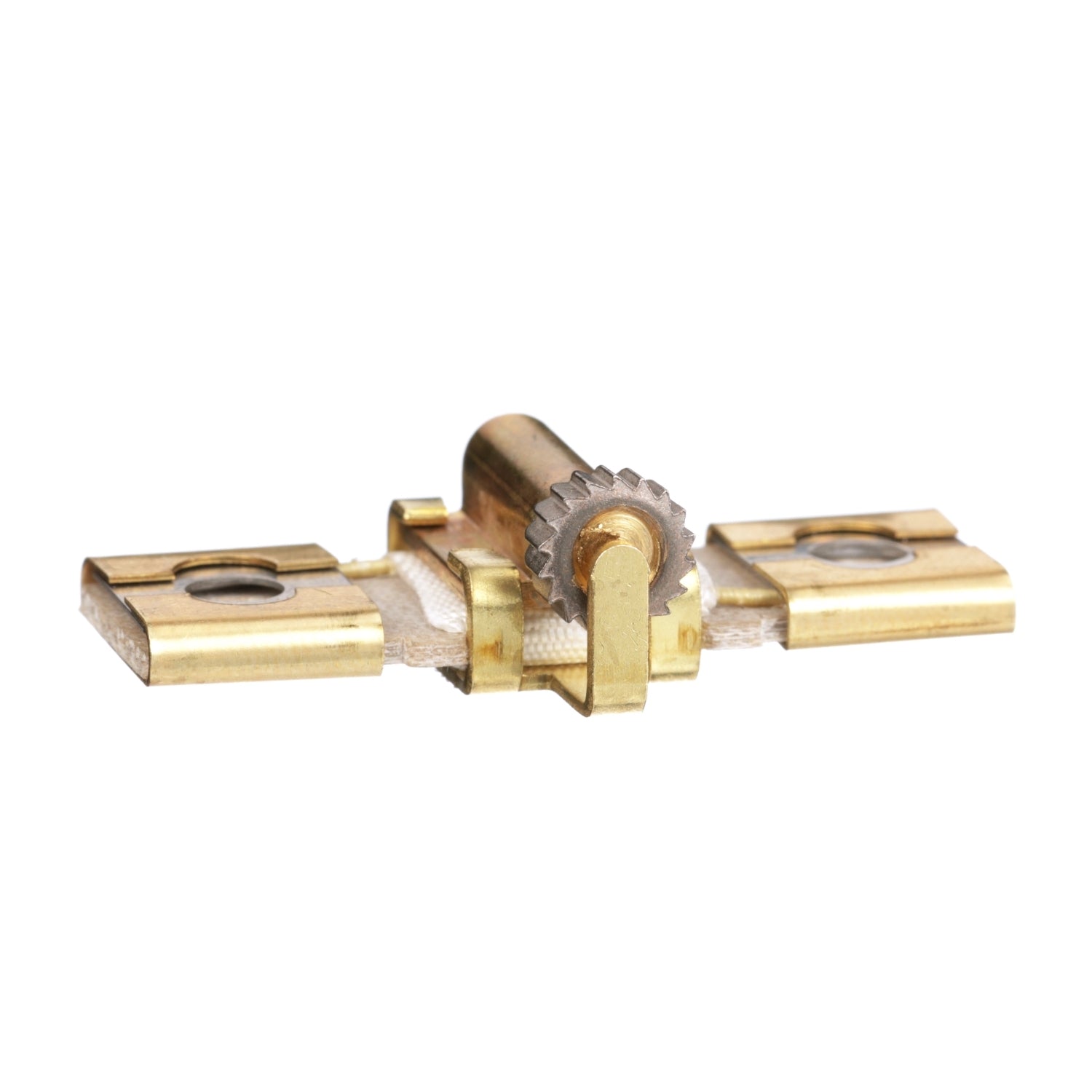

B11.5 | Schneider Electric Thermal Unit, Type S, Type B, Melting Alloy
- Regular price
- $47.00
- Sale price
- $47.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: B11.5
Description
B11.5 is a thermal unit classified as Type S and Type B, featuring melting alloy construction with a Class 20 rating. These units are designed to trip within 20 seconds or less during overload conditions. They are part of the Linergy NEMA sectional terminal blocks used for wire termination, adhering to NEMA standards. The Square D terminal block mounting track, specifically for 9080G terminal blocks, is made of galvanized steel and pre-punched with oblong slots to facilitate easy panel mounting.
Technical Specifications
|
Part # |
B11.5 |
|
Category |
Contactors & Starters |
|
Subcategory |
Thermal Overload/Heater |
|
Range of Product |
B |
|
Thermal overload type |
Melting alloy |
|
Motor tripping class |
20 TYPE B |
|
Thermal overload |
7.84-8.47 AMP |
Information About B11.5
The B11.5 thermal unit is classified under Type S and Type B categories, employing a melting alloy construction rated at Class 20. Designed for industrial applications, these units are integrated into Linergy NEMA sectional terminal blocks, ensuring compliance with NEMA standards for wire termination.
The accompanying Square D terminal block mounting track is purpose-built for compatibility with 9080G terminal blocks. Constructed from galvanized steel, the track features pre-punched oblong slots that facilitate straightforward installation onto panels, enhancing installation efficiency.
Functionally, the B11.5 thermal units are engineered to trip within 20 seconds upon detecting overload conditions. This rapid response is crucial for protecting electrical systems and equipment from excessive currents, thereby safeguarding against potential damage and ensuring operational safety in industrial environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
