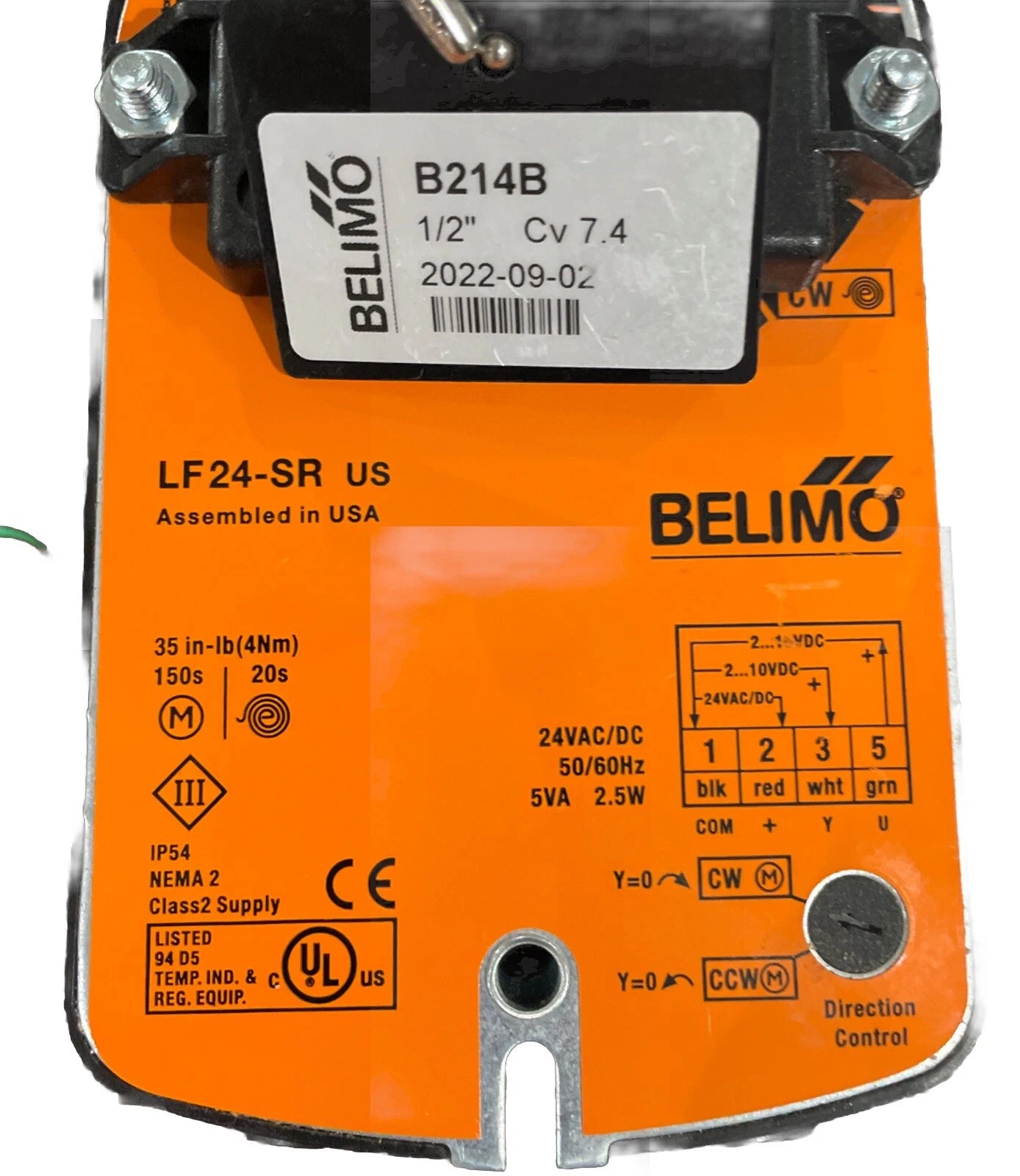

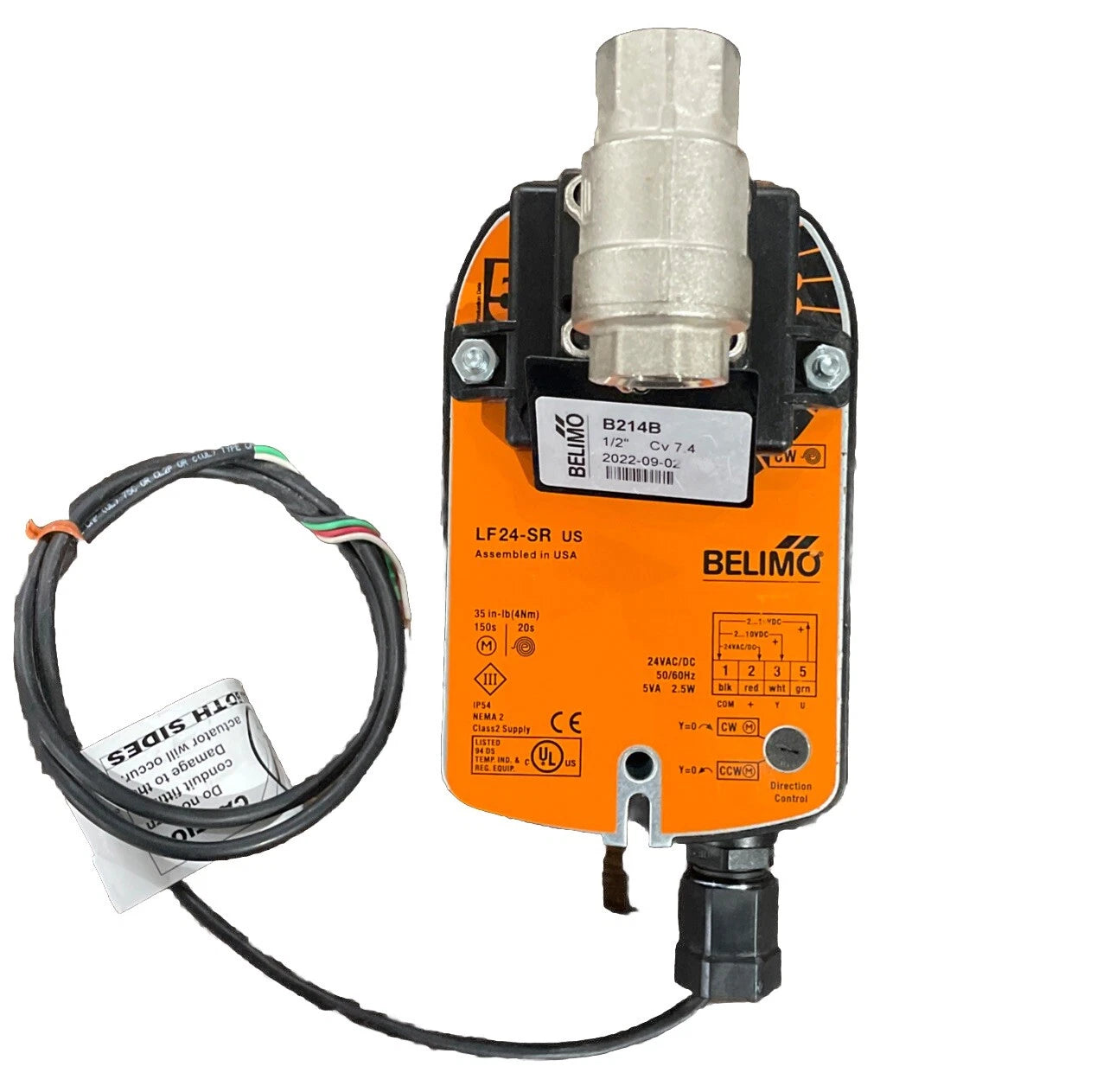

B214B+LF24-SR US | Belimo Half Inch Two Way Characterized Ball Control Valve With Spring Return Actuator
- Regular price
- $542.00
- Sale price
- $542.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B214B+LF24-SR US
Description
The Belimo B214B+LF24-SR US is a 1/2 inch, 2-way characterized control ball valve with an integrated 24 V spring return modulating actuator. It provides precise equal percentage flow control with a Cv of 7.4 and tight shutoff performance for hydronic HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | B214B+LF24-SR US |
| Subcategory | Ball Valves |
| Valve Type | Characterized Control Valve (CCV) |
| Valve Size | 0.5 in (DN 15) |
| Flow Pattern | 2-way |
| Cv Rating | 7.4 |
| Flow Characteristic | Equal percentage |
| Body Pressure Rating | 600 psi |
| Close-Off Pressure | 200 psi |
| Leakage Rate | 0% for A–AB |
| Pipe Connection | Female NPT threaded |
| Valve Body Material | Nickel-plated brass |
| Seat Material | PTFE |
| Characterized Disc | TEFZEL® |
| Fluid Compatibility | Chilled or hot water, up to 60% glycol |
| Fluid Temperature Range | 0…250°F (-18…120°C) |
| Actuator Type | Spring return, modulating |
| Control Signal | 2…10 V (4…20 mA with resistor) |
| Nominal Voltage | AC/DC 24 V, 50/60 Hz |
| Power Consumption (Running) | 2.5 W |
| Electrical Connection | 18 GA plenum cable, 1 m, 1/2" NPT conduit |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | 15.41 lb |
Information About B214B+LF24-SR US
The B214B+LF24-SR US is part of Belimo’s characterized control valve range designed for accurate flow modulation in compact hydronic circuits. The valve features a precision-machined ball and TEFZEL® characterized disc that delivers stable equal percentage control across the operating range. Its factory-mounted LF24-SR US spring return actuator operates on AC/DC 24 V and supports modulating control with integrated position feedback and selectable fail-safe direction. The assembly is engineered for maintenance-free service and reliable long-term performance in commercial HVAC installations.
Key Features
- Characterized Ball Valve Design: Precision ball and TEFZEL® disc provide true equal percentage flow control for stable and repeatable modulation.
- Integrated Spring Return Actuator: Automatically drives the valve to a defined safety position during power loss to protect the system.
- Modulating Control Capability: Accepts 2…10 V control signals with optional 4…20 mA input using an external resistor.
- High Pressure And Tight Shutoff Performance: Rated for 600 psi body pressure with 200 psi close-off and zero leakage for A–AB.
- Durable Valve Materials: Nickel-plated brass body, chrome-plated ball, PTFE seat, and EPDM seals ensure long service life.

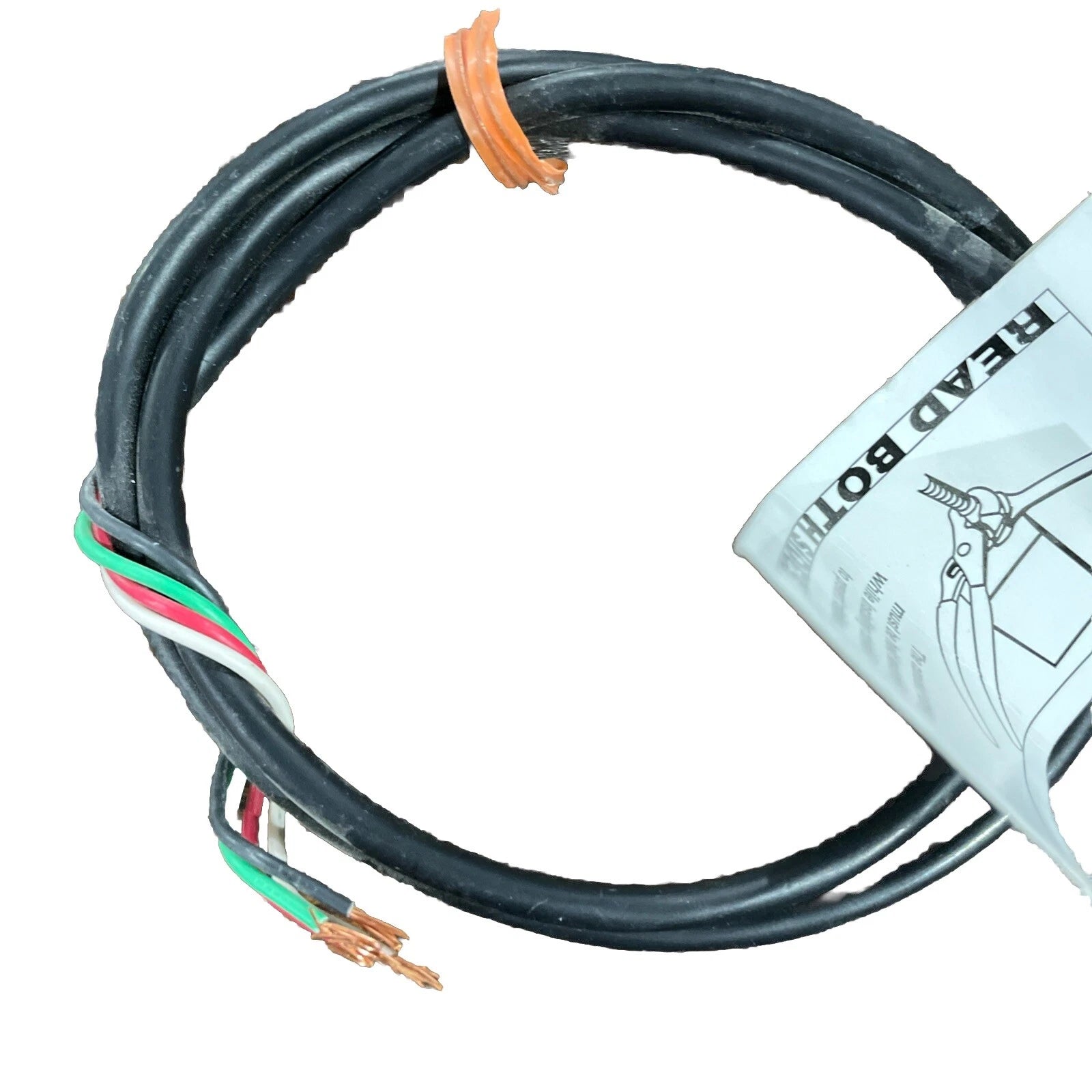

- Pre-Wired Electrical Connection: Supplied with plenum-rated cable and 1/2" NPT conduit connector for simplified installation.
- Integrated Position Feedback: Provides a 2…10 V feedback signal for accurate valve position monitoring.
The B214B+LF24-SR US delivers the reliability and precision required for accurate hydronic flow modulation and fail-safe control in HVAC systems.
