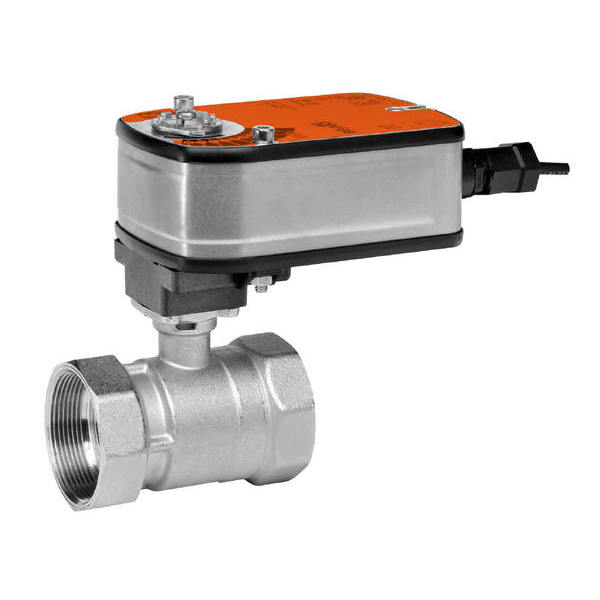

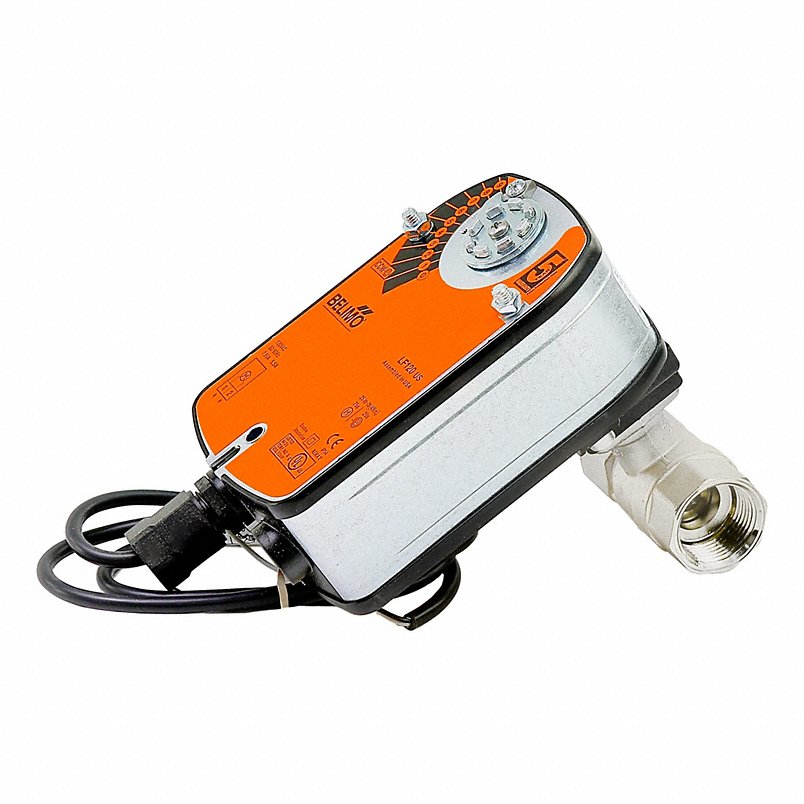

B225+LF120-S US | Belimo 1 Inch Two Way Characterized Control Valve With 120V Spring Return Actuator
- Regular price
- $624.00
- Sale price
- $624.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B225+LF120-S US
Description
The Belimo B225+LF120-S US is a 1-inch, 2-way characterized control valve with a factory-fitted 120 V spring return on/off actuator. It provides precise equal percentage flow control with a Cv of 30 and reliable fail-safe shutoff for hydronic HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | B225+LF120-S US |
| Subcategory | Ball Valves |
| Valve Type | Characterized Control Valve (CCV) |
| Valve Size | 1 in (DN 25) |
| Flow Pattern | 2-way |
| Cv Rating | 30 |
| Flow Characteristic | Equal percentage |
| Body Pressure Rating | 600 psi |
| Close-Off Pressure | 200 psi |
| Leakage Rate | 0% for A–AB |
| Pipe Connection | Female NPT threaded |
| Fluid Compatibility | Chilled or hot water, up to 60% glycol |
| Fluid Temperature Range | 0…250°F (-18…120°C) |
| Controllable Flow Range | 75° |
| Actuator Type | Spring return, on/off |
| Nominal Voltage | AC 120 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 96…132 V |
| Power Consumption (Running) | 5.5 W |
| Power Consumption (Rest) | 3.5 W |
| Auxiliary Switch | 1 × SPDT, adjustable |
| Running Time | 75 s / 90° |
| Fail-Safe Running Time | <25 s |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | Not specified |
Information About B225+LF120-S US
The B225+LF120-S US is part of Belimo’s characterized control valve portfolio designed for accurate flow regulation in hydronic heating and cooling systems. The valve incorporates a precision-machined ball that provides true equal percentage flow control, ensuring stable modulation and predictable system response. Its factory-mounted LF120-S US spring return actuator operates directly on 120 V AC power and delivers dependable on/off control with automatic fail-safe positioning during power loss. The assembly is engineered for maintenance-free operation and long service life in commercial HVAC installations.
Key Features
- Characterized Control Valve Design: Precision ball geometry delivers true equal percentage flow control for stable and repeatable system performance.
- Integrated Spring Return Actuator: Automatically drives the valve to a predefined safety position upon power loss, supporting system protection.
- Line Voltage Operation: 120 V AC actuator eliminates the need for a separate control transformer in line-voltage applications.
- Tight Shutoff Performance: Rated for 200 psi close-off pressure with zero leakage for A–AB to ensure reliable isolation.
- Durable Valve Construction: High-pressure valve body rated to 600 psi supports long-term operation in demanding hydronic systems.
- Auxiliary Switch Integration: Built-in SPDT auxiliary switch provides end-position indication and control interlocking capability.
- Maintenance-Free Assembly: Designed for continuous-duty service without routine maintenance requirements.
The B225+LF120-S US delivers the reliability and precision required for safe, dependable on/off flow control in commercial HVAC hydronic systems.
