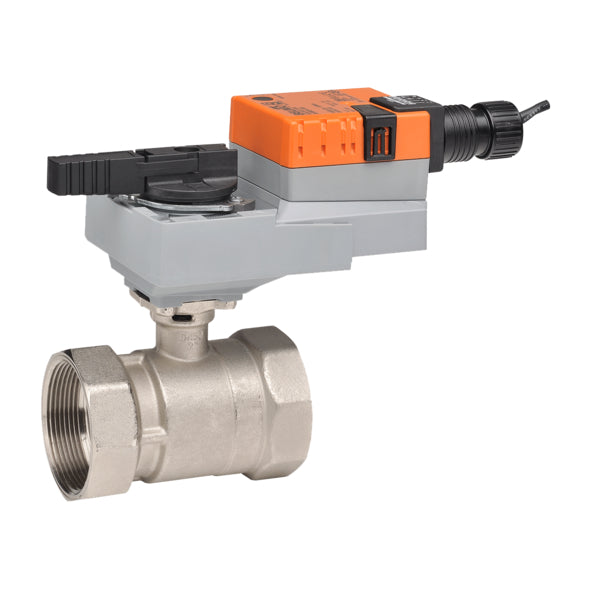

B280+ARB24-3 | Belimo 3 Inch Two Way Characterized Control Valve With Floating Actuator
- Regular price
- $1,518.00
- Sale price
- $1,518.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B280+ARB24-3
Description
The Belimo B280+ARB24-3 is a 3-inch, 2-way characterized control valve assembly designed for accurate flow control in hydronic HVAC systems. It combines a high-capacity brass ball valve with a non spring return floating point actuator operating on AC/DC 24 V.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | B280+ARB24-3 |
| Subcategory | Characterized Control Valves |
| Valve Type | Characterized Control Valve (CCV) |
| Valve Size | 3 in (DN 80) |
| Flow Pattern | 2-way |
| Cv Rating | 170 |
| Flow Characteristic | Equal percentage |
| Body Pressure Rating | 400 psi |
| Close-Off Pressure | 100 psi |
| Leakage Rate | 0% for A–AB |
| Pipe Connection | Female NPT |
| Controllable Flow Range | 75° |
| Fluid Compatibility | Chilled or hot water, up to 60% glycol |
| Fluid Temperature Range | 0…212°F (-18…100°C) |
| Valve Body Material | Nickel-plated brass |
| Ball Material | Stainless steel |
| Seat Material | PTFE |
| Stem Material | Stainless steel |
| Actuator Type | Non spring return |
| Control Mode | On/Off, Floating point |
| Nominal Voltage | AC/DC 24 V |
| Power Consumption (Running) | 2.5 W |
| Power Consumption (Rest) | 0.5 W |
| Running Time | 90 s / 90° |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | 11.2 lb |
Information About B280+ARB24-3
The B280+ARB24-3 is part of Belimo’s characterized control valve range developed to provide stable and repeatable flow control in medium to large hydronic circuits. The valve uses a full-flow stainless steel ball and equal percentage control characteristic to maintain consistent regulation across varying load conditions. Its factory-mounted ARB24-3 actuator supports floating point control and non fail-safe operation, ensuring reliable positioning during normal system operation. Built for maintenance-free service, this assembly integrates durable materials with precise actuator control for long-term HVAC performance.
Key Features
- High Capacity Two Way Valve Design: Cv 170 rating supports effective control of large water volumes in distribution piping.
- Equal Percentage Flow Characteristic: Provides smooth and predictable modulation across the valve’s operating range.
- Non Spring Return Floating Actuator: Supports floating point and on/off control while maintaining last position on power loss.
- Compact Brass Valve Construction: Nickel-plated brass body with stainless steel trim ensures corrosion resistance and durability.
- Low Power Consumption: Efficient 24 V actuator design minimizes electrical load on control transformers.
- Service-Friendly Operation: Manual override and mechanical position indication simplify commissioning and maintenance tasks.
- Proven HVAC Compatibility: Rated for chilled and hot water systems with glycol mixtures up to 60%.
The B280+ARB24-3 delivers the reliability and precision required for accurate hydronic flow control in commercial HVAC applications.
