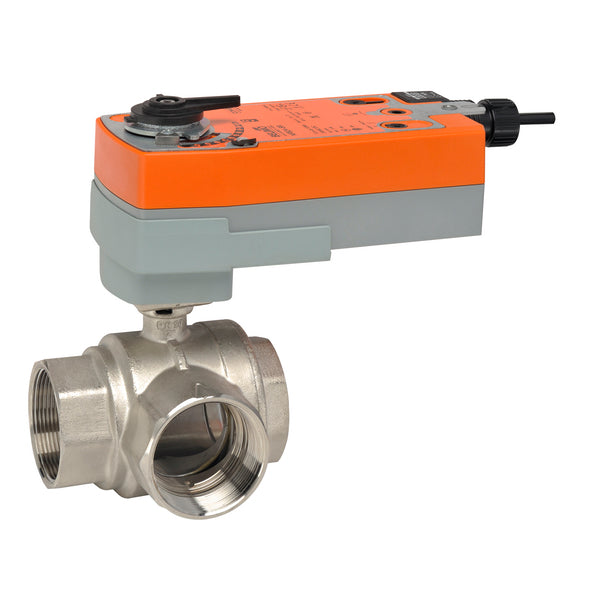

B340+AFRB24-SR | Belimo 1.5 Inch Three Way Characterized Control Valve With Spring Return Actuator
- Regular price
- $1,269.00
- Sale price
- $1,269.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B340+AFRB24-SR
Description
The Belimo B340+AFRB24-SR is a 1.5-inch, 3-way characterized control valve assembly with a factory-fitted 24 V spring return modulating actuator. It provides precise mixing or diverting flow control with a Cv of 37 for hydronic HVAC systems requiring reliable fail-safe operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | B340+AFRB24-SR |
| Subcategory | Characterized Control Valves |
| Valve Type | Characterized Control Valve (CCV) |
| Valve Size | 1.5 in (DN 40) |
| Flow Pattern | 3-way mixing / diverting |
| Cv Rating | 37 |
| Flow Characteristic | A-port equal percentage, B-port modified |
| Leakage Rate | 0% A–AB, <2% B–AB |
| Body Pressure Rating | 400 psi |
| Close-Off Pressure | 200 psi |
| Pipe Connection | Female NPT threaded |
| Fluid Compatibility | Chilled or hot water, up to 60% glycol |
| Fluid Temperature Range | 0…250°F (-18…120°C) |
| Valve Body Material | Nickel-plated brass |
| Ball Material | Stainless steel |
| Seat Material | PTFE |
| Actuator Type | Spring return, modulating |
| Nominal Voltage | AC/DC 24 V |
| Control Signal | 2…10 V (4…20 mA with resistor) |
| Power Consumption (Running) | 5.5 W |
| Power Consumption (Rest) | 3 W |
| Running Time | 95 s / 90° |
| Fail-Safe Running Time | <20 s |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | 11.0 lb |
Information About B340+AFRB24-SR
The B340+AFRB24-SR is part of Belimo’s characterized control valve range developed to ensure accurate flow control in variable hydronic systems. The 3-way valve design supports both mixing and diverting applications, with optimized port characteristics to maintain stable common port flow. Its factory-mounted AFRB24-SR spring return actuator operates on AC/DC 24 V and provides modulating control with automatic fail-safe positioning during power loss. The assembly is engineered for maintenance-free service, combining durable materials with precise actuator control for long-term reliability.
Key Features
- Three Way Mixing And Diverting Control: Supports both mixing and diverting applications with stable common port flow behavior.
- Characterized Flow Geometry: Equal percentage A-port and modified B-port characteristics ensure smooth modulation and predictable control response.
- Integrated Spring Return Actuator: Automatically drives the valve to a predefined safety position during power loss for system protection.
- Precise Modulating Control Input: Accepts 2…10 V control signals with optional 4…20 mA capability for flexible integration.
- Durable Valve Construction: Nickel-plated brass body and stainless steel internal components provide corrosion resistance and long service life.
- Tight Shutoff Performance: Zero leakage at A–AB and minimal leakage at B–AB ensure effective flow isolation when required.
- Service-Friendly Design: Manual override and mechanical position indication simplify commissioning and maintenance.
The B340+AFRB24-SR delivers the reliability and precision required for accurate three-way flow control with fail-safe operation in commercial HVAC hydronic systems.
