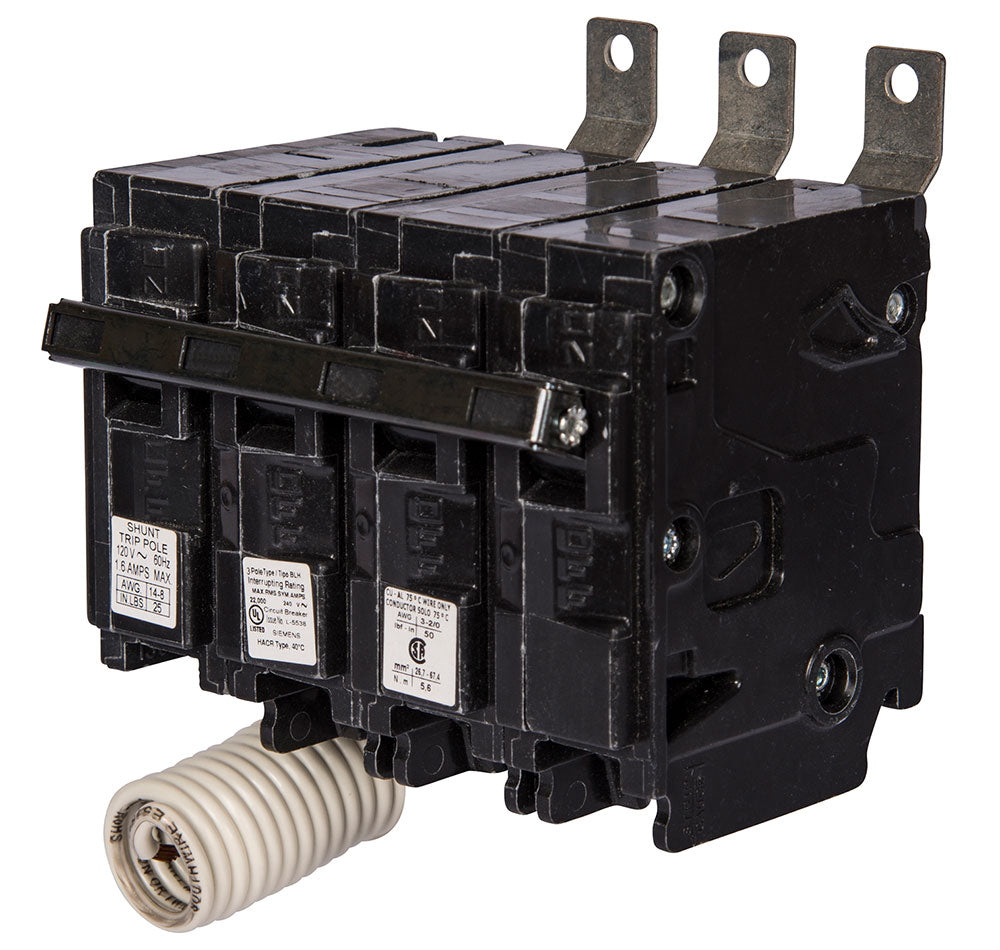

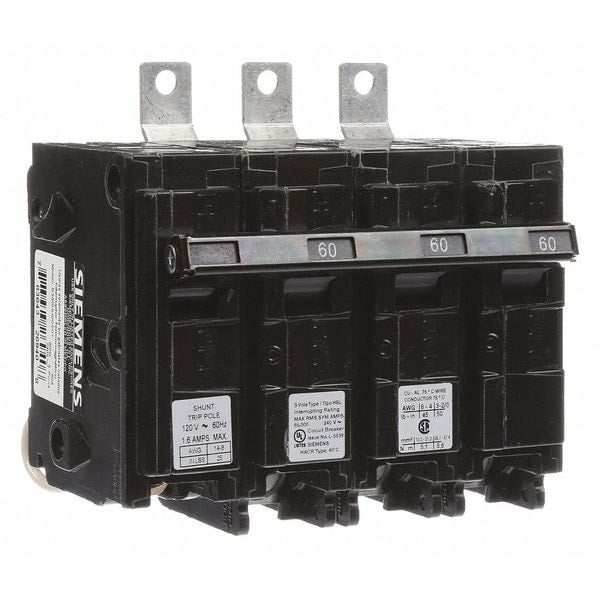

B360HH00S01 | Siemens 60A 3-Pole 240V Molded Case Circuit Breaker with 120V Shunt Trip
- Regular price
- $715.00
- Sale price
- $715.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: B360HH00S01
Description
The Siemens B360HH00S01 is a three-pole molded case circuit breaker engineered for dependable circuit protection in commercial and industrial electrical systems. Rated at 60 amps and 240 volts, this BL Series HBL-type breaker offers a high interrupting capacity of 65kA @ 240V, ensuring safety and reliability under high fault conditions. Designed with a bolt-on connection and thermal magnetic trip protection, it combines durability and performance for demanding power distribution environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | B360HH00S01 |
| Subcategory | Molded Case Circuit Breaker |
| Series | BL Series |
| Type | HBL |
| Voltage Rating | 240V AC |
| Amperage Rating | 60A |
| Poles | 3 |
| Phase | 3-Phase |
| Interrupting Capacity (AIC) | 65kA @ 240V |
| Trip Type | Thermal Magnetic |
| Protection Functions | LI – Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Frame Size | 125A / HBL |
| Terminal Connection | Lug |
| Wire Range | 8 AWG–4 AWG (Al), 6 AWG (Cu) |
| Breaker Type | Shunt Trip (120V) |
| Panel Compatibility | P1 Panelboards |
| Certifications | UL Listed, CSA Certified, HACR Rated |
| Dimensions | 4 in x 3 in x 3 in |
| Manufacturer | Siemens Industry, Inc. |
| Weight | 1.41 lbs |
Information About B360HH00S01
The B360HH00S01 is a member of Siemens’ BL Series molded case circuit breakers, built for compatibility with P1 panelboards and similar systems. It provides long-time and instantaneous (LI) protection, supporting both overload and short-circuit conditions. The breaker includes a 120V shunt trip, enabling remote tripping capability for enhanced system control and safety. Constructed with a 125A HBL frame size and bolt-on terminals, the unit ensures secure installation and long-term operational stability across a wide range of electrical applications.
Key Features:
- High Interrupting Capacity: Rated at 65kA @ 240V for superior fault protection.
- Thermal Magnetic Trip: Combines overload (thermal) and short-circuit (magnetic) protection for reliable operation.
- 3-Pole Configuration: Supports three-phase power distribution systems.
- Shunt Trip Feature: Includes a 120V shunt trip for remote control and emergency shutdown.
- Durable Bolt-On Connection: Ensures a secure and vibration-resistant connection to panelboards.
- Compact Design: Fits standard Siemens P1 panelboards for easy integration.
- Certified Quality: UL Listed, CSA Certified, and HACR rated for safety compliance.
- Wide Wire Range: Supports 8 AWG–4 AWG (Al) and 6 AWG (Cu) conductors.
The B360HH00S01 delivers the reliability and precision required for modern electrical protection in industrial and commercial power distribution systems.
