Part #: B6.90 Manufactured by: Schneider Electric
Regular price
$39.00
Sale price
$39.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
B6.90 - Thermal Unit, Type S, Type B, Melting Alloy, Class 20
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: B6.90
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: B6.90

Description / Specifications

Description

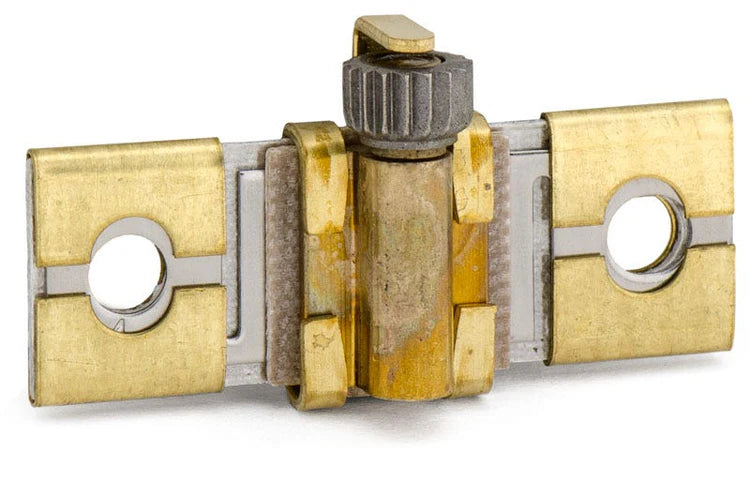

The B6.90 is a thermal overload heater unit manufactured by Schneider Electric. It is designed for plug-in mounting and utilizes a melting alloy method for sensing thermal overloads. This unit is configured for standard trip operations, meaning it responds to overloads by melting the alloy, thereby disconnecting power.


Technical Specifications


Brand Schneider Electric
Part Number B6.90
Category Contactors & Starters
Subcategory Thermal Overload/Heater
Accessory Type Thermal Unit
Usage Motor
Motor Tripping Class 20
Sensing Method Melting Alloy
Full Load Amps 4.48 to 5.68 Amp
Trip Type Standard Trip




Information About B6.90

The B6.90 is a thermal unit accessory manufactured by Schneider Electric, primarily used for protecting motors from overloads. It belongs to the category of thermal units and is specifically designed to ensure motor safety by detecting excessive currents.

This accessory operates with a motor tripping class of 20, indicating its suitability for motors requiring a moderate level of overload protection. It employs a melting alloy sensing method, where the alloy melts upon sensing excessive heat due to overcurrent conditions. This triggers the unit to disconnect power to the motor, preventing damage and ensuring operational safety.

The B6.90 is calibrated to trip under normal operating conditions when the motor's current reaches between 4.48 to 5.68 amps at full load. This range allows it to effectively protect motors within this specified current range.

It features a standard trip type, meaning it reacts predictably to overload situations by disconnecting the circuit when the current exceeds safe limits for a predetermined amount of time. This functionality is crucial for preventing overheating and potential motor damage, ensuring reliable performance in industrial and commercial motor applications.

Overall, the B6.90 thermal unit by Schneider Electric is a dependable accessory that provides essential protection against overloads, contributing to the longevity and safe operation of electric motors in various operational environments.
