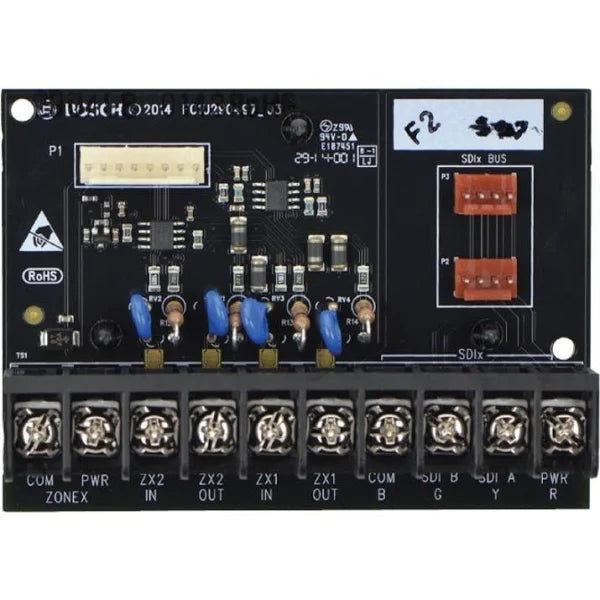

B600 | Bosch ZONEX Retrofit Module for Legacy Device Integration with B-Series Control Panels
- Regular price
- $109.00
- Sale price
- $109.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: B600
Description
The Bosch B600 ZONEX Retrofit Module provides a streamlined solution for integrating legacy ZONEX-compatible devices with modern Bosch control panels. Operating at 12 VDC, it ensures reliable communication and supports retrofit applications requiring compatibility with existing system wiring. The B600 simplifies upgrades by enabling continued use of ZONEX modules within updated fire and intrusion control platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Controls & Indicators |
| Part Number | B600 |
| Subcategory | Control / Retrofit Module |
| Type | ZONEX Retrofit Module |
| Device Supported | Control Panel |
| Input Voltage | 12 VDC |
| Current Draw | 12 mA |
| Operating Temperature | 32°F to 120.2°F (0°C to 49°C) |
| Width | 3.9 in |
| Height | 2.8 in |
| Depth | 1 in |
| Wire Gauge Support | 12–24 AWG |
| Mounting Holes | 3 |
| ZONEX Bus Support | Two independent busses |
| Max Modules per Bus | Up to 15 D8128D and/or 8 D8129 modules (combined total not exceeding 15) |
| Application | Legacy ZONEX device integration with B-Series control panels |
Information About B600
The B600 is a ZONEX retrofit module engineered by Bosch to interface legacy ZONEX devices with newer control panels, including the B8512G and B9512G. It communicates through a proprietary connection and supports two independent ZONEX busses, each capable of hosting combinations of D8128D and D8129 modules. The module is designed for installation inside the control panel enclosure or a nearby approved housing. Typical applications include system modernization projects where existing ZONEX modules need to remain operational while transitioning to contemporary Bosch control hardware.
Key Features
- ZONEX retrofit support: Enables legacy devices to interface with newer B-Series control panels.
- Dual ZONEX busses: Supports up to 15 D8128D modules and/or up to 8 D8129 modules per bus.
- Simple wiring migration: Uses existing terminal blocks for straightforward retrofit installation.
- Proprietary communication link: Ensures stable connectivity with supported Bosch control panels.
- Compact enclosure size: Suitable for mounting inside or adjacent to panel housings.
- Flexible system integration: Allows mixing of D8128D and D8129 modules on a single bus.
- Low-voltage operation: Runs on 12 VDC with minimal current draw.
- Extended compatibility: Works with B9512G and B8512G control panel platforms.
The B600 delivers the reliability and precision required for efficient retrofit integration of legacy ZONEX devices into modern Bosch control systems.
