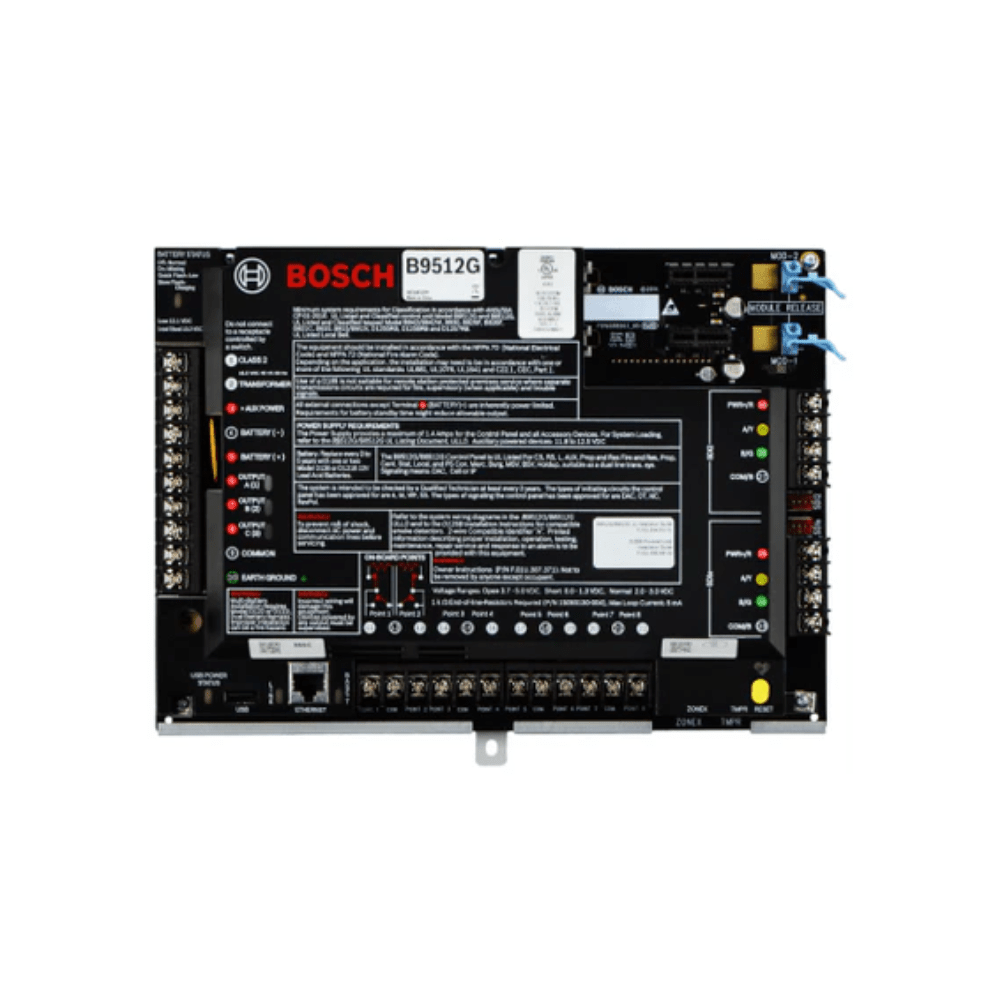

B9512G | Bosch IP Control Panel with 32 Areas, 599 Points, and Ethernet Connectivity
- Regular price
- $1,125.00
- Sale price
- $1,125.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: B9512G
Description
The Bosch B9512G is an advanced IP-enabled control panel designed for integrated intrusion, fire, and access control applications. Operating at 12 VDC, it supports up to 599 input points and 32 areas, providing scalable system management for large commercial and industrial facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire and Security Control Panels |
| Part Number | B9512G |
| Subcategory | IP Control Panel |
| Product Type | Integrated intrusion/fire/access control panel |
| Operating Voltage | 12 VDC nominal |
| AC Input Voltage | 16.5 VAC, 40 VA (D1640/D1640-CA transformer) |
| Standby Current | 180 mA |
| Alarm Current | 260 mA |
| Alarm Output | 2A @ 12VDC |
| Auxiliary Power Output | 1.4A combined (auxiliary and switched) |
| Ethernet Interface | 10/100 full-duplex IP communication |
| Event Log Capacity | 10,192 events |
| Passcode Users | 2,000 users + 1 installer |
| Input Points | 599 total (8 onboard, 591 off-board/virtual) |
| Programmable Outputs | 599 total (3 onboard, 596 off-board/virtual) |
| Keypads Supported | Up to 32 (16 SDI/SDI2 compatible) |
| Areas | 32 |
| Custom Functions | 32 programmable |
| RF Points | 591 |
| IP Cameras | Supports up to 16 cameras |
| SKEDs (Automation Events) | 80 programmable |
| Operating Temperature | 32°F–120°F (0°C–49°C) |
| Humidity | 5%–93% RH (non-condensing) |
| Wiring | 12–22 AWG (2.0–0.65 mm) |
| SDI2 Wiring Distance | 7,500 ft (22 AWG max unshielded) |
| Dimensions | 10.625” W × 7.75” H × 1.875” D (26.99 × 19.69 × 4.76 cm) |
| Weight | 1.95 lbs (0.88 kg) |
Information About B9512G
The B9512G is part of Bosch’s G Series of professional-grade control panels, engineered for networked security, fire, and automation systems. It features an Ethernet 10/100 full-duplex interface for IP communication, remote programming, and event reporting. The panel supports 32 areas, 32 keypads, 2,000 user codes, and up to 10,192 logged events, making it suitable for high-security installations. With 8 onboard points, 3 programmable outputs, and support for 591 additional off-board points and relays, the B9512G offers robust expandability. Designed for reliable operation between 32°F and 120°F (0°C to 49°C), it meets the performance and environmental requirements for mission-critical building security and fire integration.
Key Features:
- Integrated IP Connectivity: 10/100 Ethernet interface enables network-based monitoring and programming.
- Large System Capacity: Supports 599 input points, 32 areas, and 32 keypads for complex installations.
- Extensive Event Storage: Logs up to 10,192 system events for comprehensive reporting.
- High User Capacity: Accommodates 2,000 passcode users plus one installer code.
- Flexible Power Output: Provides 2A alarm output and 1.4A auxiliary power at 12 VDC.
- Wide Environmental Range: Operates from 32°F to 120°F with 5%–93% humidity.
- Expandable Design: Supports up to 591 RF and hardwired off-board points.
- Bosch SDI2 Compatibility: Integrates with keypads, input modules, and peripherals over long distances.
The B9512G delivers the reliability and precision required for high-security, networked control of intrusion, fire, and access systems.
