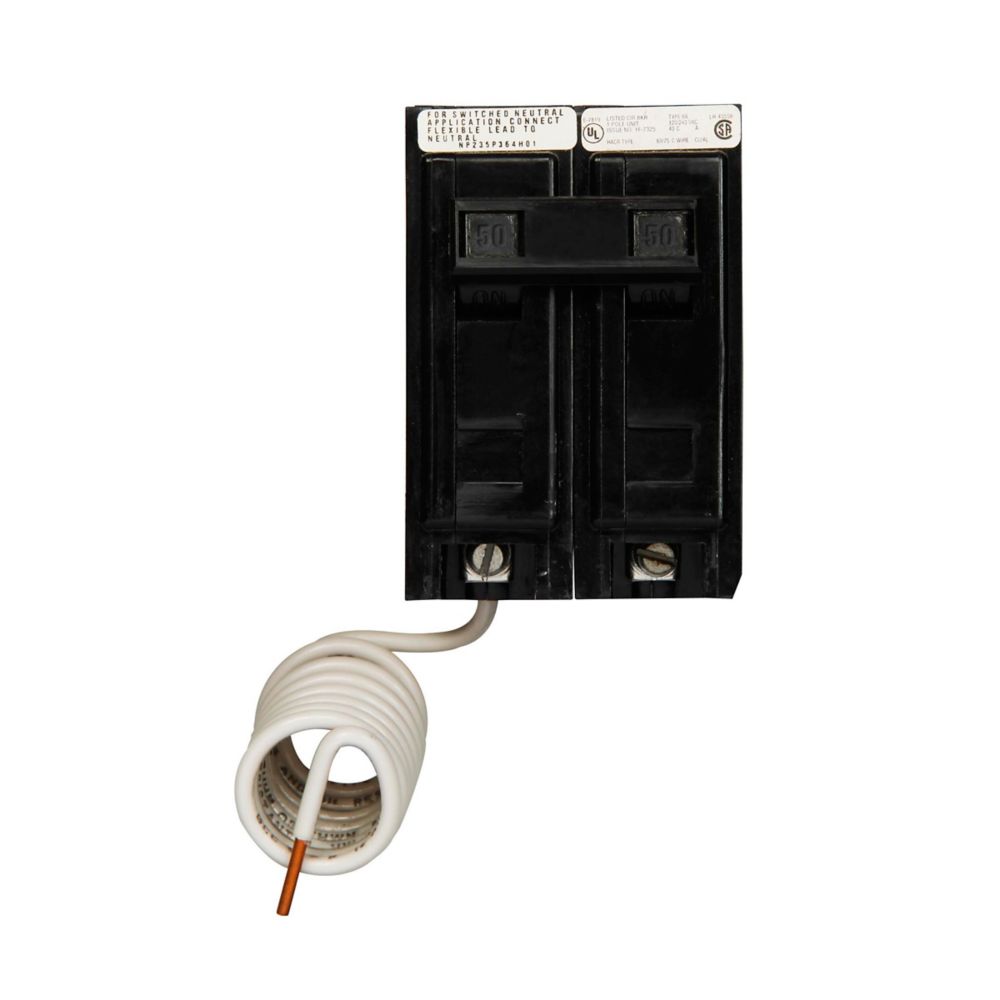

BAB2050S | Eaton BAB Quicklag 50A 2-Pole Thermal Magnetic Circuit Breaker 120/240V With Shunt Trip
- Regular price
- $147.00
- Sale price
- $147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BAB2050S
Description
The Eaton BAB2050S is a Quicklag industrial thermal-magnetic circuit breaker designed for reliable overcurrent protection in low-voltage distribution systems. This two-pole breaker is rated at 50 A and operates at 120/240 V with a 10 kA interrupting capacity. It features a non-interchangeable trip unit and includes an integrated 24/48 VDC shunt trip for remote tripping functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | BAB2050S |
| Subcategory | Molded Case Circuit Breaker |
| Series | Quicklag |
| Breaker Type | Type BAB |
| Amperage Rating | 50 A |
| Voltage Rating | 120/240 VAC |
| Interrupt Rating | 10 kAIC |
| Trip Type | Non-interchangeable thermal magnetic |
| Number of Poles | 2 |
| Shunt Trip Voltage | 24/48 VDC |
| Connection Type | Extended tang line / aluminum box lug load |
| Wire Size Range | 14–4 AWG |
| Mounting Type | Bolted-on |
| Temperature Rating | 40 °C |
| Frame Category | Q7 |
| Dimensions | 3 in L × 2.5 in W × 2.5 in H |
Information About BAB2050S
The BAB2050S is an Eaton-manufactured BAB series molded case circuit breaker developed for industrial and commercial electrical systems requiring dependable thermal-magnetic protection. It is constructed as a two-pole device with a fixed, non-interchangeable trip unit to ensure consistent protection characteristics. The breaker incorporates a factory-installed 24/48 VDC shunt trip, allowing external control systems to remotely open the breaker when required. It is commonly installed in distribution panels where Quicklag performance, compact design, and auxiliary tripping capability are required.
Key Features
- Quicklag BAB Series Design: Engineered within Eaton’s Quicklag platform to provide dependable industrial-grade circuit protection with predictable trip characteristics.
- 50 Amp Thermal-Magnetic Trip Unit: Combines thermal overload sensing with magnetic short-circuit response for comprehensive fault protection.
- Two-Pole Configuration: Supports protection of 120/240 V circuits in single-phase and multi-wire branch circuit applications.
- Integrated Shunt Trip Mechanism: Includes a 24/48 VDC shunt trip for remote breaker actuation from control or safety systems.
- Non-Interchangeable Trip Construction: Ensures fixed trip settings, reducing variability and maintaining consistent protection behavior.
- Extended Tang Line Lug Connections: Accommodates aluminum box lugs and a wide conductor range from 14 to 4 AWG.
- Bolted-On Mounting: Provides secure mechanical attachment and stable electrical connection in panelboard installations.
The BAB2050S delivers the reliability and precision required for industrial overcurrent protection with remote tripping capability in Eaton Quicklag electrical distribution systems.
