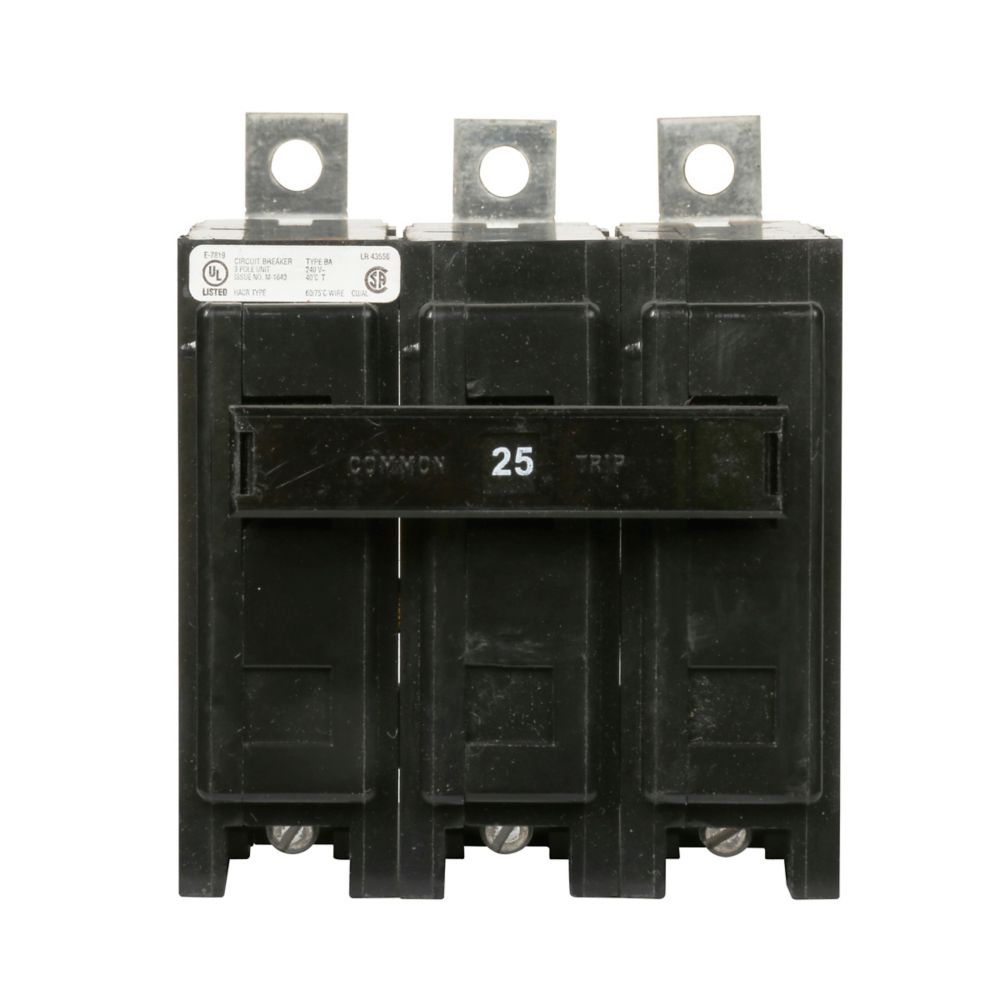

BAB3025H | Eaton BAB Thermal Magnetic Circuit Breaker
- Regular price
- $184.00
- Sale price
- $184.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BAB3025H
Description
The BAB3025H is an Eaton BAB Thermal Magnetic Circuit Breaker designed for industrial applications. It belongs to the Quicklag Industrial series and has a rated current of 25A with an interrupting capacity of 10 kAIC. This circuit breaker features bolt-on mounting and is configured with three poles. Additionally, it is non-interchangeable and operates at a voltage of 240V.
Technical Specifications
|
Part Number |
BAB3025H |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Amps |
25 A |
|
Interrupt Rating |
110kA @ 240VAC |
|
Line Side Termination |
Bolt-On |
|
Load Side Termination |
Lugs |
|
Type |
MCB (Molded Case Circuit Breaker) |
|
Frame Size |
BAB |
|
Height |
2.5 in (63.50 mm) |
|
Length |
3 in (76.20 mm) |
|
Manufacturer |
Eaton |
|
Number of Poles |
3 Pole |
|
Description |
240V, 25Amp, 3-Pole |
|
Trip Type |
Thermal Magnetic |
|
UNSPSC Code |
39121603 |
|
UPC |
786679303252 |
|
Volts |
240V |
|
Width |
3 in (76.20 mm) |
Information About BAB3025H
The BAB3025H is a thermal magnetic circuit breaker manufactured by Eaton. Classified under the Quicklag Industrial series, it is designed to provide overcurrent protection in electrical systems. With a rated current of 25A, this circuit breaker is capable of interrupting currents up to 10 kAIC. It features bolt-on mounting, facilitating easy installation and maintenance. The BAB3025H is configured with three poles, allowing it to control three separate electrical circuits simultaneously. Furthermore, it is designed to operate specifically with a voltage of 240V.
Eaton's BAB thermal magnetic circuit breaker offers reliable protection against overcurrent events. The thermal mechanism responds to sustained overloads, while the magnetic mechanism trips the breaker in the event of short circuits. This dual protection ensures the safety and integrity of the electrical system under various fault conditions.
The Quicklag Industrial series is known for its robust construction and durability, making it suitable for demanding industrial environments. The BAB3025H is engineered to withstand the rigors of industrial applications, ensuring reliable performance over its operational lifespan.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
