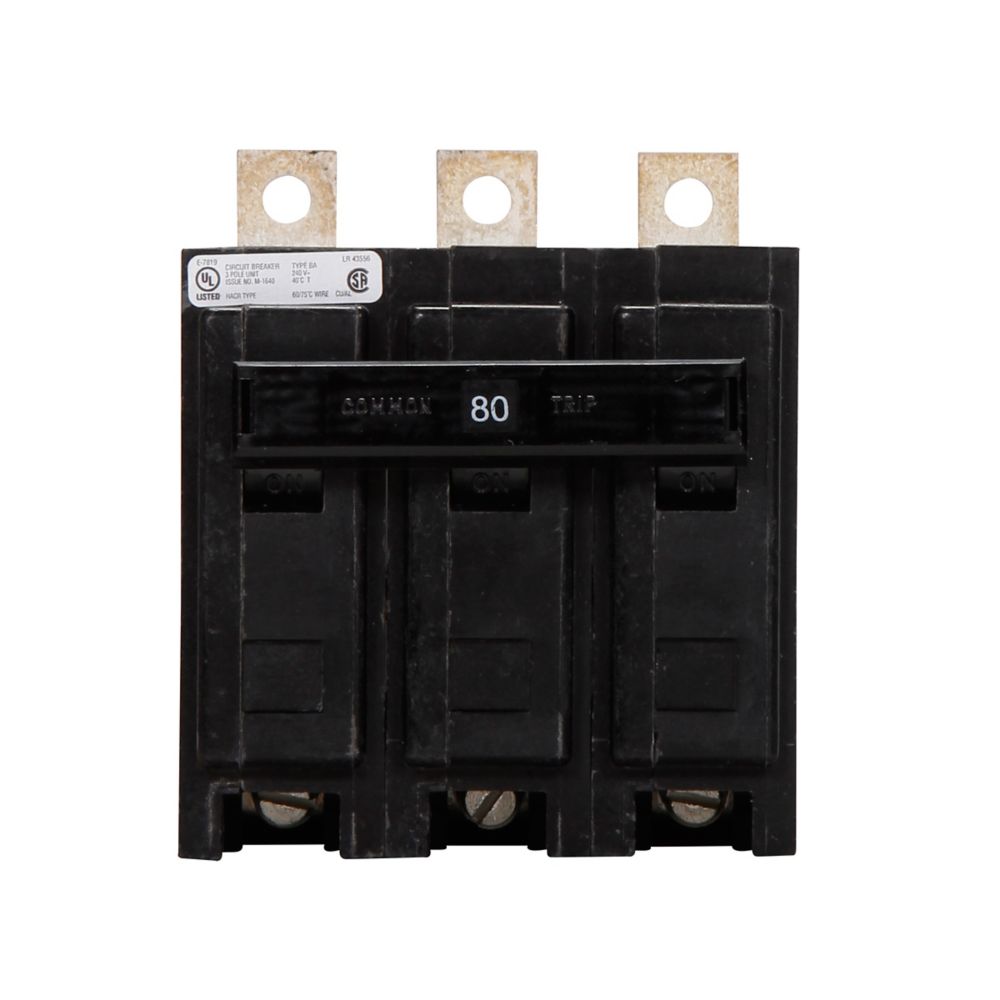

BAB3080H | Eaton 80A Three-Pole 240V Thermal Magnetic Bolt-On Circuit Breaker
- Regular price
- $229.00
- Sale price
- $229.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BAB3080H
Description
The Eaton BAB3080H is a three-pole thermal magnetic molded case circuit breaker designed to provide reliable 80A protection for commercial and industrial 240V systems. Its bolt-on design, durable construction, and LI trip functions ensure stable performance and straightforward installation in Quicklag panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | BAB3080H |
| Subcategory | Molded Case Circuit Breaker |
| Family | Quicklag |
| Type | BAB |
| Voltage | 240 V |
| Amperage | 80 A |
| Poles | 3 |
| Connection | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous |
| Phase | 3 |
| AIC Rating | 10 kA @ 240 V |
| Wire Size Compatibility | 8–1/0 AWG Cu/Al |
| Terminal Type | Extended Tang Line Terminal / Box Lug Load Terminal |
| Certifications | UL 489 Listed, CSA Certified |
| Application | Industrial and Commercial Electrical Systems |
| Temperature Rating | 40 °C |
Information About BAB3080H
The BAB3080H is part of Eaton’s Quicklag family, engineered to deliver dependable overcurrent and short-circuit protection in demanding commercial and industrial environments. Its three-pole configuration supports balanced three-phase distribution, while the thermal magnetic LI trip unit ensures accurate response to both overloads and instantaneous fault events. Rated at 80A and 240V with a 10 kA interrupting capacity, the breaker effectively manages high fault currents to protect equipment and wiring. The bolt-on mounting system, along with extended tang and box lug terminals, provides secure connections and easy installation within compatible panelboards.
Key Features
- 80A three-pole protection: Supports robust three-phase circuits in commercial and industrial installations.
- Thermal magnetic LI trip unit: Offers long-time overload and instantaneous fault protection.
- 10 kA interrupt rating: Capable of interrupting significant fault currents at 240V.
- Bolt-on mounting: Ensures secure attachment and stable electrical connectivity.
- Extended tang and box lug terminals: Allow convenient wiring with 8–1/0 AWG copper or aluminum conductors.
- UL 489 and CSA certified: Complies with major North American safety standards.
- Quicklag family compatibility: Integrates seamlessly into Eaton Quicklag distribution equipment.
- Durable molded case construction: Provides long-term mechanical and thermal reliability under load.
The BAB3080H delivers the reliability and precision required for high-capacity protection in industrial and commercial power distribution systems.
