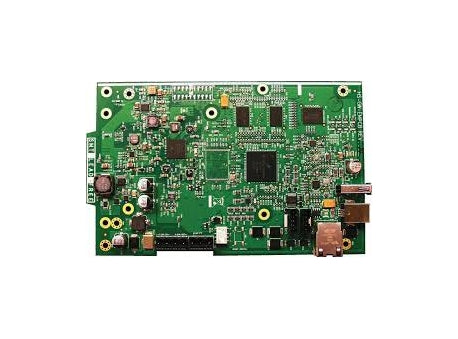

BACNET-GW-3 | Notifier Fire Alarm Control Panel BACnet Gateway
- Regular price
- $2,730.00
- Sale price
- $2,730.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BACNET-GW-3
Description
The BACNET-GW-3 is a powerful communication gateway that enables seamless integration between NOTIFIER’s NOTI•FIRE•NET™ fire panel network and building management systems using the BACnet/IP protocol. Acting as a bridge, it translates data from NOTIFIER fire alarm control panels into BACnet objects, allowing BACnet clients to monitor and receive real-time event notifications from the fire network.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
HMI / MMI / OIT
|
| Part Number | BACNET-GW-3 |
| Subcategory | Operator Interface |
| Protocol | Up to 14 nodes per gateway |
| NFN Nodes Supported | 15,000 BACnet objects |
| Max Object Count | Via network port on NCM |
| Connection to NFN | RJ-45 Ethernet (CN2) |
| Connection to BACnet | Configuration Tool (CD), Windows XP PC |
| Software Requirements | Via network card or chassis (not included in base kit) |
| Power Requirement | PC board, configuration CD, RJ-45 to RJ-45 cable, NUP to NUP cable |
| Included Components | Inside NCM chassis or expansion panel (not included) |
| Mounting | AFP-2800 FACP, Standard and High-Speed NFN |
| Compatibility | Acts as BACnet foreign device for third-party integration |
| Weight | 12.00 lbs |
Information About BACNET-GW-3
The BACNET-GW-3 connects to the NOTI•FIRE•NET via a network port on a Network Control Module (NCM) and supports both standard and high-speed NFN configurations. Each gateway can monitor up to 14 NOTI•FIRE•NET nodes or 15,000 combined objects, including detectors, control modules, and notification appliances. To scale for larger installations, multiple BACNET-GW-3 units can be deployed.
Key Features:
- High Node and Object Capacity: Supports up to 14 NOTI•FIRE•NET nodes per gateway with a total object capacity of 15,000—including detectors, modules, and appliances—enabling efficient large-scale integration.
- Native BACnet/IP Support: Communicates using the BACnet/IP protocol, ensuring full compliance with ANSI/ASHRAE 135-1995 and seamless interoperability with BACnet-certified BMS platforms.
- Event Notification Subscription: Subscribes to Event Notification objects on each FACP, allowing immediate and reliable transmission of critical fire events to the BACnet system.
- PC Programmability with Configuration Tool: Comes with a dedicated CD-based configuration tool for offline programming, supporting intuitive configuration on a Windows XP-based PC.
- Foreign Device Support: Capable of acting as a foreign BACnet device when communicating through BBMDs (BACnet Broadcast Management Devices), expanding flexibility in complex networked environments.
- Multiple Gateway Scalability: Supports installation of multiple BACNET-GW-3 units in parallel for interfacing with networks exceeding 14 nodes, ideal for enterprise-level fire protection systems.
- Direct Ethernet Connectivity: Equipped with an RJ-45 port for Ethernet-based BACnet connectivity and another for connection to the NFN network, providing high-speed, reliable communication paths.
The BACNET-GW-3 streamlines fire and building system convergence, improving visibility and control in modern facilities.
