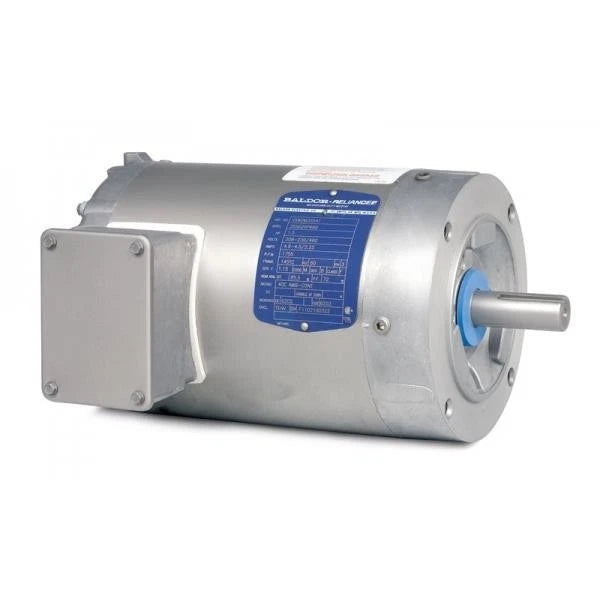

Baldor Reliance VSWDM3538 Stainless Steel Washdown Motor
- Regular price
- $1,525.00
- Sale price
- $1,525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VSWDM3538
Description
The Baldor Reliance VSWDM3538 is a stainless steel washdown motor for equipment exposed to routine cleaning. It delivers 0.5 HP from a three-phase 230/460 VAC supply and uses a totally enclosed, non-ventilated design with C-face mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Baldor Reliance |
| Category | Electric Motors |
| Part Number | VSWDM3538 |
| Subcategory | Washdown AC Motors |
| Product Family | Wash Down Paint Free |
| Rated Output | 0.5 HP |
| Rated Voltage | 230/460 VAC |
| Phase / Frequency | Three-phase / 60 Hz |
| Rated Speed | 1775 rpm, current manufacturer specification |
| Full-Load Current | 2.02 A at 230 V / 1.01 A at 460 V |
| Frame / Mounting | NEMA 56C / C-face footless |
| Enclosure | TENV — Totally Enclosed Non-Ventilated |
| Frame Material | Stainless steel |
| Duty / Ambient Rating | Continuous / 40°C |
| Service Factor | 1.25 |
| Insulation / Inverter Rating | Class F / Inverter duty |
| Number of Poles | 4 |
| Shaft Diameter / Overall Length | 0.625 in / 11.06 in |
| Weight | 28 lb |
Information About VSWDM3538
The VSWDM3538 is part of Baldor Reliance’s Wash Down Paint Free motor family. Its NEMA 56C construction provides a footless mounting arrangement for connection to compatible driven equipment. The motor incorporates Class F insulation and is designated for inverter-duty applications. Continuous-duty operation, reversible rotation, and a 1.25 service factor support industrial machine integration.
Key Features:
- Stainless Steel Frame: Provides paint-free construction for washdown applications.
- Motor Output: Delivers a rated mechanical output of 0.5 HP.
- Three-Phase Supply: Supports 230 or 460 VAC operation at 60 Hz.
- TENV Enclosure: Uses totally enclosed, non-ventilated construction without an external cooling fan.
- C-Face Mounting: Provides a NEMA 56C interface without mounting feet.
- Inverter Duty: Designated for use with a compatible variable frequency drive.
- Continuous Operation: Rated for continuous duty at a 40°C ambient temperature.
- Reversible Rotation: Supports either direction of rotation through the appropriate electrical connection.
The VSWDM3538 delivers the reliability and precision required for motor-driven operation in washdown processing and industrial equipment.
