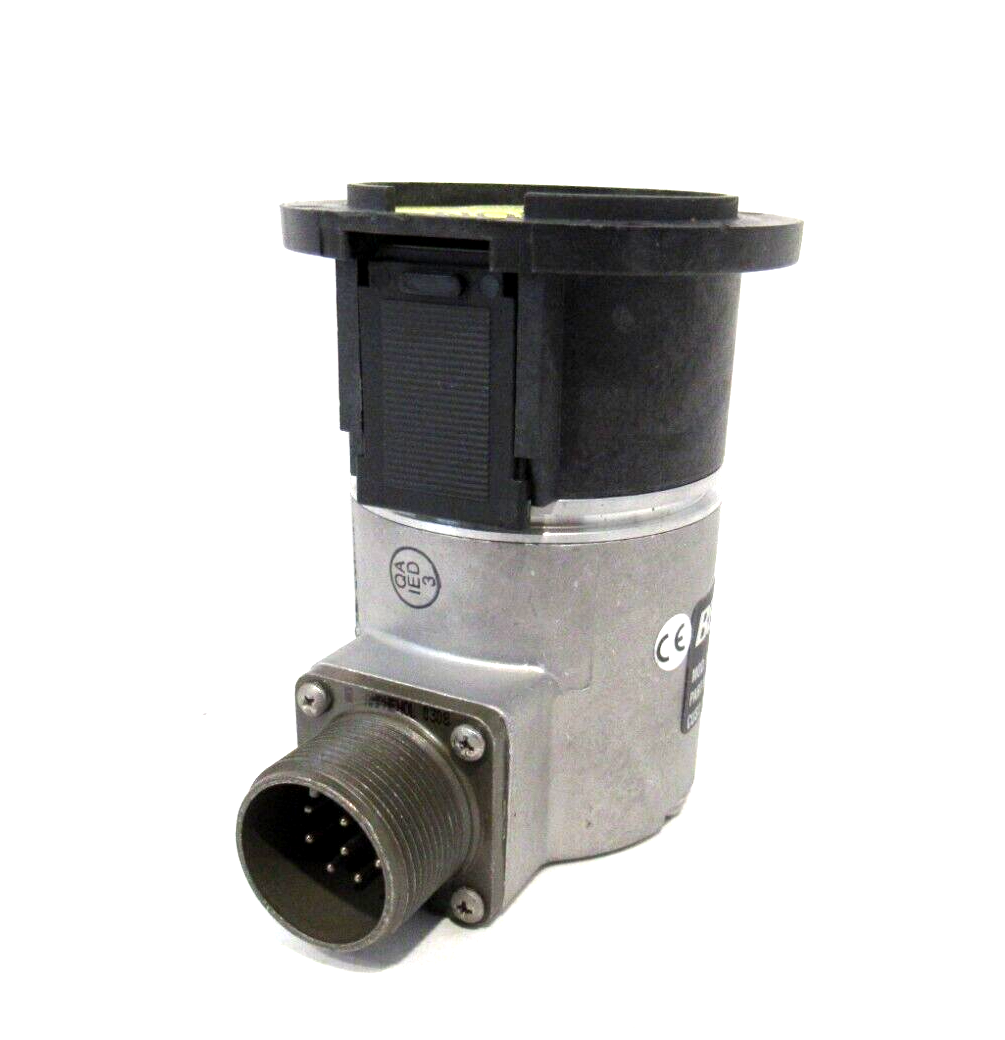

Balluff 924-01002-5734 Heavy-Duty Incremental Optical Encoder
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 924-01002-5734
Description
The Balluff 924-01002-5734 is a heavy-duty incremental optical encoder designed for precision rotary position and motion feedback in industrial automation and servo applications. It provides 2048 cycles per turn, dual-channel A/B outputs with indexing, complementary outputs, and a 2.50-inch mounting configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Industrial Automation |
| Part Number | 924-01002-5734 |
| Subcategory | Incremental Encoders |
| Product Type | Heavy-Duty Optical Incremental Encoder |
| Encoder Configuration | H25E-F45-SB-2048-ABZC-8830-SM18-S |
| Resolution | 2048 Cycles per Turn |
| Output Type | Dual Channel with Indexing |
| Output Signals | A, B, Z |
| Output Configuration | Complementary Outputs |
| Mounting | Servo Mount |
| Mounting Diameter | 2.50 in. |
| Termination Location | Side |
| Sensing Technology | Optical |
| Application | Industrial Motion and Servo Feedback |
| Weight | 1.05 lb |
Information About 924-01002-5734
The 924-01002-5734 is an industrial optical incremental encoder configured as H25E-F45-SB-2048-ABZC-8830-SM18-S. Its optical sensing technology provides rotary feedback for motion-control and servo systems. The encoder uses dual channels with an index signal and complementary outputs for position and direction monitoring. Its heavy-duty construction, servo mounting configuration, and side termination support integration into industrial machinery and automation equipment.
Key Features:
- Incremental Optical Encoder: Provides rotary position and motion feedback for industrial automation systems.
- 2048 Cycles per Turn: Delivers 2048 output cycles for each complete shaft revolution.
- Dual-Channel Output: Provides A and B channels for position and direction sensing.
- Indexing: Includes an index signal for reference-position detection.
- Complementary Outputs: Supports differential signal transmission for industrial control interfaces.
- Heavy-Duty Construction: Designed for demanding industrial motion-control applications.
- 2.50-Inch Mounting: Uses a 2.50-inch mounting diameter configuration.
- Side Termination: Electrical termination is positioned on the side of the encoder.
The 924-01002-5734 delivers precise rotary feedback required for industrial motion-control and servo applications.
