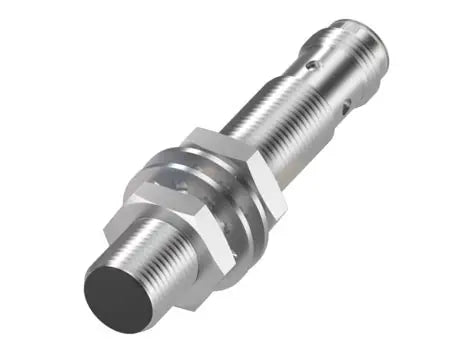

Balluff BAW004C Inductive Distance Sensor 0–10 V 3.5 mm
- Regular price
- $695.00
- Sale price
- $695.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BAW004C
Description
The Balluff BAW004C is an inductive distance sensor designed for precise, non-contact measurement of metallic targets in industrial automation systems. It provides a 0–10 V analog voltage output across a 0.2–3.5 mm measuring range, with repeat accuracy of ±7 µm.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BAW004C |
|
Subcategory |
Inductive Distance Sensors |
|
Model |
BAW M12MI-UAC35C-S04G |
|
Housing Style |
Cylindrical, M12 × 1 |
|
Installation |
Flush mounting |
|
Measuring Range |
0.2–3.5 mm |
|
Analog Output |
0–10 V |
|
Output Characteristic |
Output decreases as target approaches |
|
Limit Frequency (-3 dB) |
1,000 Hz |
|
Repeat Accuracy |
±7 µm |
|
Maximum Non-Linearity |
±35 µm |
|
Operating Voltage |
15–30 VDC |
|
Minimum Load Resistance |
2 kΩ |
|
Connection |
M12 × 1 male connector, 4-pin |
|
Housing Material |
Nickel-free coated brass |
|
Sensing Surface Material |
PBT |
|
Protection Rating |
IP67 |
|
Ambient Temperature |
-40 to 80 °C |
|
Dimensions |
Ø 12 × 65 mm |
|
Approvals |
CE, UKCA, cULus, WEEE |
|
Weight |
0.11 lb |
Information About BAW004C
The BAW004C belongs to Balluff’s BAW series of cylindrical inductive distance sensors and features an M12 × 1 threaded body for flush mounting. Its nickel-free coated brass housing and PBT sensing surface are designed for industrial use. The sensor operates on 15–30 VDC and connects through a 4-pin M12 male connector. With a 1,000 Hz limit frequency and IP67 protection, it supports fast measurement tasks in demanding environments.
Key Features:
-
Inductive Distance Measurement: Measures the position or distance of metallic targets without physical contact.
-
Analog Voltage Output: Provides a 0–10 V signal for integration with compatible control systems.
-
Measuring Range: Covers a sensing range of 0.2–3.5 mm.
-
High Repeat Accuracy: Offers repeat accuracy of ±7 µm and maximum non-linearity of ±35 µm.
-
Fast Response: Features a limit frequency of 1,000 Hz.
-
Flush Mounting: Uses a cylindrical M12 × 1 housing designed for flush installation.
-
Industrial Construction: Features nickel-free coated brass and a PBT sensing surface.
-
Environmental Protection: Provides IP67 protection and operates from -40 to 80 °C.
The BAW004C delivers the reliability and precision required for distance measurement, position monitoring, and industrial automation applications.
