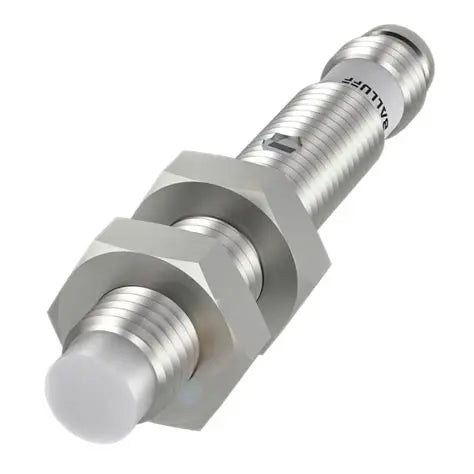

Balluff BCS002M Capacitive Proximity Sensor 3 mm PNP NO M8
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BCS002M
Description
The Balluff BCS002M is a capacitive proximity sensor designed for non-contact detection and level monitoring of liquids, powders, granulates, and other materials. It provides a 3 mm sensing range with a PNP normally open output for integration into industrial control systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Balluff |
|
Category |
Automation Control Components |
|
Part Number |
BCS002M |
|
Subcategory |
Capacitive Proximity Sensors |
|
Model |
BCS M08T4E2-PSM30G-S49G |
|
Series |
M08 |
|
Sensing Range |
0.1–3 mm |
|
Output |
PNP, Normally Open (NO) |
|
Operating Voltage |
11–30 VDC |
|
Rated Operating Current |
50 mA |
|
Switching Frequency |
100 Hz |
|
Connection |
M8 × 1 male connector, 3-pin |
|
Housing Material |
Stainless Steel 1.4301 |
|
Sensing Surface Material |
PTFE |
|
Protection Rating |
IP65 |
|
Operating Temperature |
-10 to 70 °C |
|
Hysteresis |
Maximum 15% of Sr |
|
Repeat Accuracy |
Maximum 2% of Sr |
|
Approvals |
CE, cULus, WEEE |
|
Weight |
0.08 lb |
Information About BCS002M
The BCS002M belongs to Balluff’s M08 series of compact cylindrical capacitive level sensors. Its M8 × 1 threaded stainless steel housing supports non-flush installation, and the sensing surface is made of PTFE. The sensor operates on 11–30 VDC and connects through a 3-pin M8 male connector. Its IP65 protection rating and adjustable switching distance support use in industrial sensing applications.
Key Features:
-
Capacitive Detection: Detects suitable metallic and non-metallic materials without contact.
-
3 mm Sensing Range: Offers an adjustable sensing distance of 0.1–3 mm.
-
PNP Normally Open Output: Provides a switching signal for industrial control equipment.
-
Compact M08 Design: Features a cylindrical body with an M8 × 1 thread.
-
Stainless Steel Housing: Uses 1.4301 stainless steel for the sensor housing.
-
PTFE Sensing Surface: Provides a PTFE surface for media-contact sensing applications.
-
Electrical Connection: Uses an M8 × 1 male connector with 3 pins.
-
Environmental Protection: IP65-rated and specified for ambient temperatures from -10 to 70 °C.
The BCS002M delivers the reliability and precision required for capacitive sensing, material detection, and industrial level-monitoring applications.
