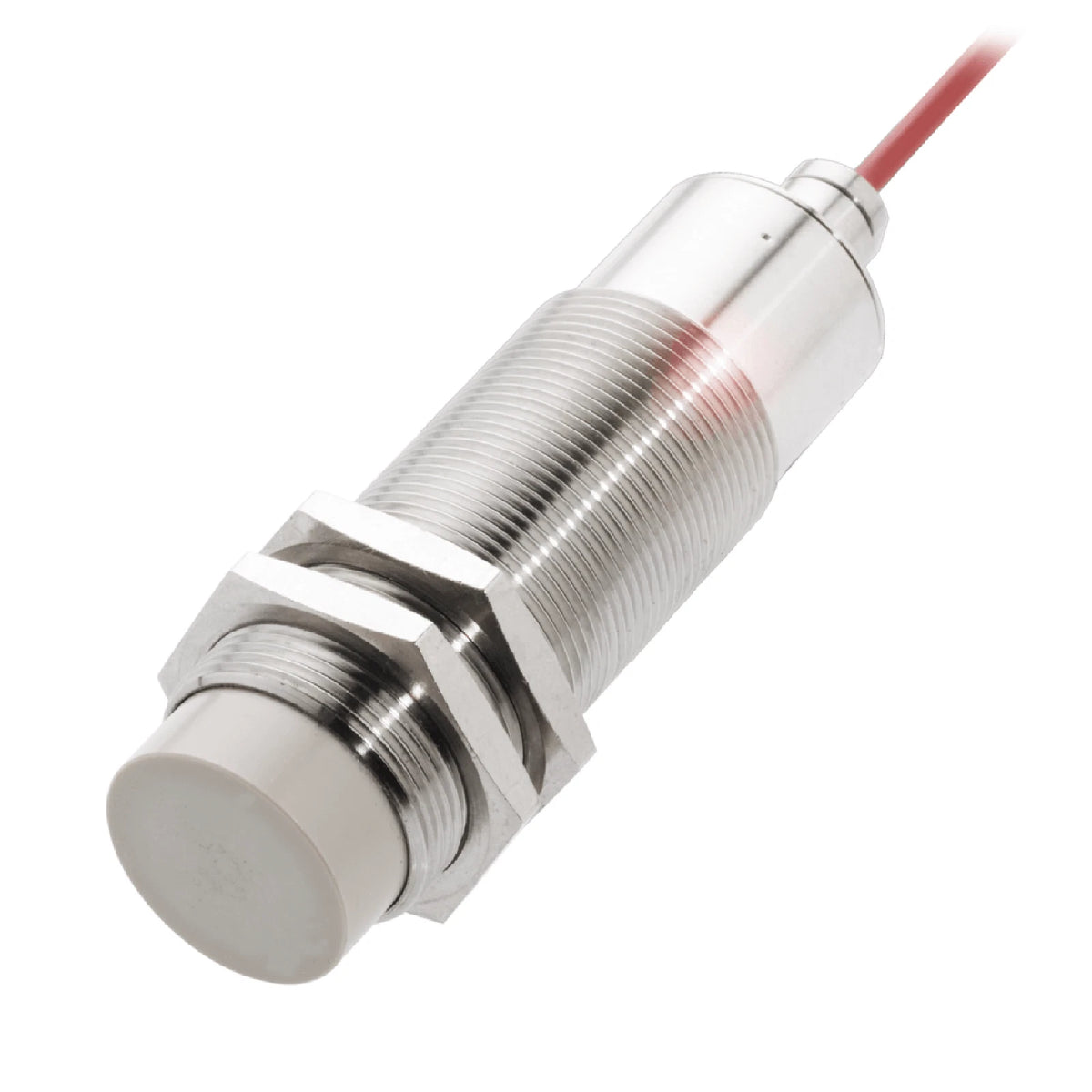

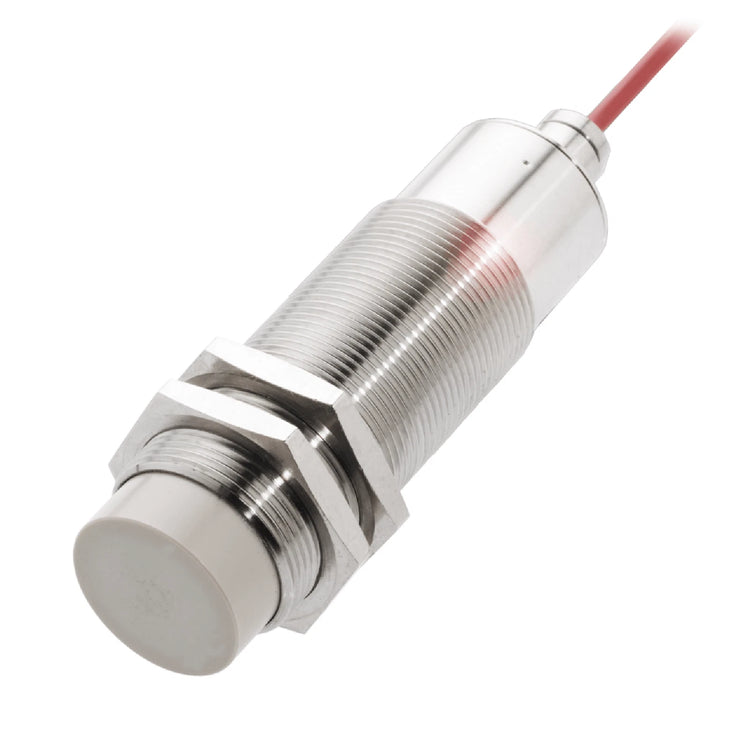

Balluff BES 515-326-SA49-D-TF-02 High-Temperature Inductive Proximity Sensor
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BES 515-326-SA49-D-TF-02
Description
The Balluff BES 515-326-SA49-D-TF-02 is an inductive proximity sensor for non-contact detection of metal targets at a sensing distance of 5 mm. Its stainless steel housing, PEEK sensing surface, and specified temperature range support use in industrial applications with elevated ambient temperatures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Balluff |
| Category | Sensors & Switches |
| Part Number | BES 515-326-SA49-D-TF-02 |
| Subcategory | Inductive Proximity Sensor |
| Sensing Principle | Inductive |
| Housing Style | Cylindrical, threaded |
| Thread Size | M18 × 1 |
| Dimensions | Ø18 × 95 mm |
| Installation Type | Flush mounting |
| Sensing Range | 5 mm |
| Switching Output | PNP, normally open (NO) |
| Switching Frequency | 200 Hz |
| Operating Voltage | 10–30 V DC |
| Connection Type | Cable |
| Housing Material | Stainless steel |
| Sensing Surface Material | PEEK |
| Ambient Temperature | −25 °C to +160 °C |
| Protection Rating | IP68 |
| Approval / Conformity | CE; UKCA; WEEE |
| Weight | 0.419 lbs |
Information About BES 515-326-SA49-D-TF-02
The BES 515-326-SA49-D-TF-02 is a cylindrical sensor with an M18 × 1 threaded housing designed for flush mounting. Its PNP normally open output supplies a switching signal to compatible control-system inputs when a target is detected. The sensor operates from a 10–30 V DC supply and connects through an attached cable. An IP68 enclosure and an ambient operating range of −25 °C to +160 °C accommodate demanding installation conditions within the specified limits.
Key Features:
- Inductive Detection: Detects metal targets without physical contact.
- Defined Sensing Distance: Provides a specified operating range of 5 mm.
- Flush Mounting: Allows installation with the sensing face flush in a suitable mounting arrangement.
- PNP Normally Open Output: Switches the output when a metal target enters the detection zone.
- Switching Frequency: Supports a specified switching frequency of 200 Hz.
- High-Temperature Operation: Supports ambient temperatures from −25 °C to +160 °C.
- Stainless Steel Housing: Combines a metal threaded body with a PEEK sensing surface.
- IP68 Protection: Provides enclosure protection against dust and immersion under rated conditions.
The BES 515-326-SA49-D-TF-02 delivers the reliability and precision required for metal object detection in high-temperature industrial equipment.
